Cub Cadet XZ2 117I 17AWCBYT603 (2019) Pedals Ricambi

HHCS:5/16-18:1.00:GR5:STD

Nota: Questo articolo è3 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

710-0376

Posizione:

Modell Year:

XZ2 117I / 2019 XZ2 127 / 2019 XZ2 107I / 2020 XZ2 107I / 2020 XZ2 117I / 2020 XZ2 127 / 2020 XZ2 127 / 2020 XZ2 117I / 2020 XZ2 127 / 2121 XZ2 107I / 2121 XZ2 117I / 2121

7.35 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Sarà ordinato per te. Tempi di consegna da 5 a 14 giorni lavorativi circa.

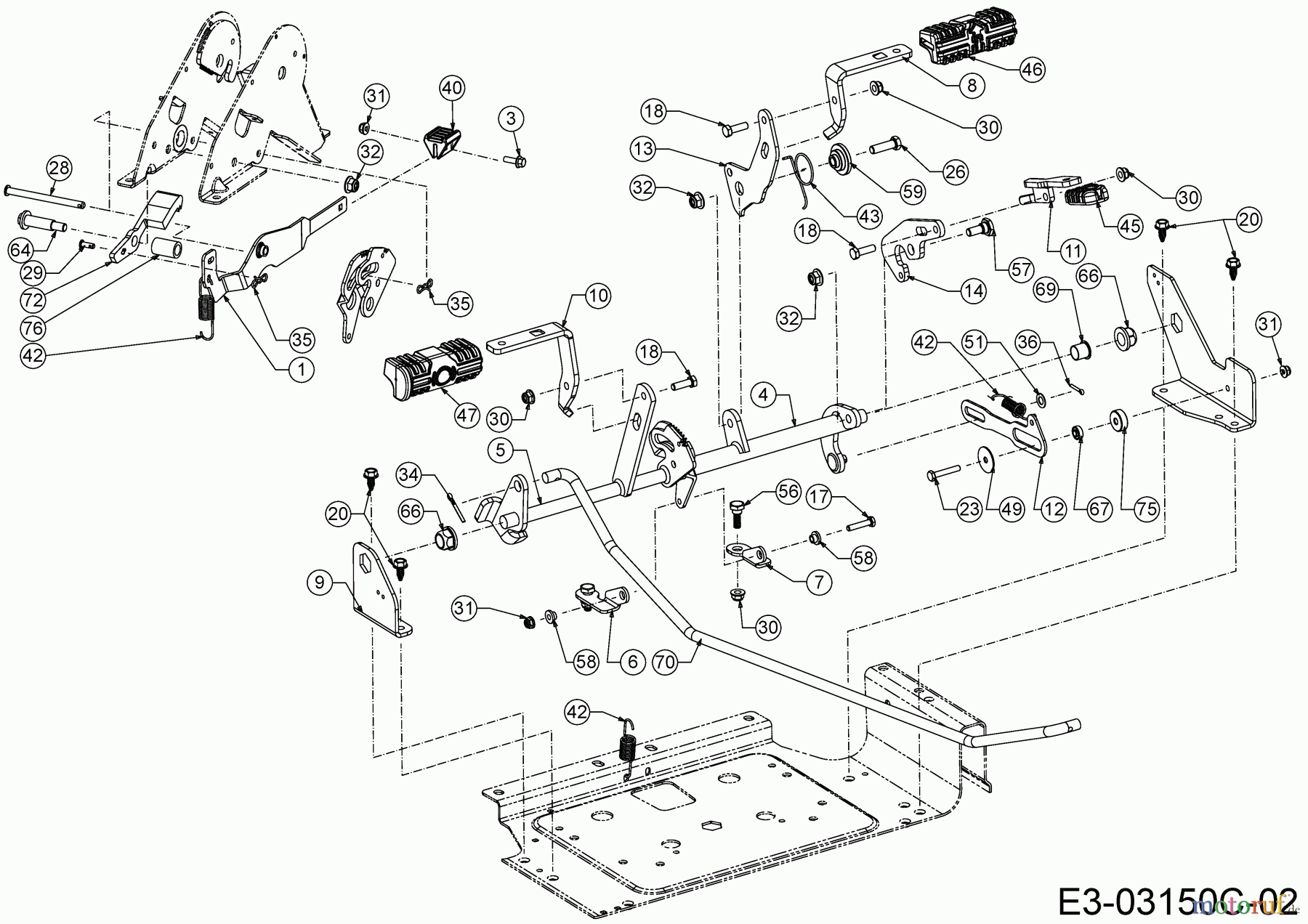

Cub Cadet Zero Turn XZ2 117I 17AWCBYT603 (2019) Pedals

Posizione	Articolo numero	Descrizione
1	603-05315	PEDAL ASM CRUISE/BRAKE
2	603-05405A-S	COLUMN ASM STEERING
3	6109	HXFLG:1/4-20:0.75:GR5:STD
4	647-05089	SHAFT ASM DRV PEDAL
5	647-05090	SHAFT REVERSE PEDAL
6	703-08604	BRACKET PEDAL SHAFT
7	703-08606	BRACKET PEDAL SHAFT
8	703-08646B	PEDAL DRIVE
9	703-08656	BRACKET
10	703-08675A	PEDAL-BRAKE
11	703-08694B	PEDAL REVERSE DRIVE
12	703-09837A	BRAKE CONTROL LINK
13	703-10338A	PLATE HEX BEARING
14	703-10350	BEARING PLATE
15	703-10408A	BRACKET BEARING SUPPORT
16	703-11069637	BRACKET TILT ACTUATOR
17	710-0106	HHCS:1/4-20:1.25:GR5:STD
18	710-0376	HHCS:5/16-18:1.00:GR5:STD
19	710-0433	HHCS:1/4-20:.625:GR5:LOCK
20	710-04484	SCR:TT:5/16-9:0.75:HXINDWSH
21	710-0528	HHCS:5/16-18:1.25:GR5:STD
22	710-0597	HHCS:1/4-20:1.00:GR5:STD
23	710-0606	HHCS:1/4-20:1.50:GR5:STD
24	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD
25	710-1245B	HHCS:5/16-24:0.88:GR8:LOCK
26	710-3005	SCREW HHCS:3/8-16:1.25:GR5:STD
27	710-3118	HHCS:3/8-16:1.00:GR5:LOCK
28	711-05068A	PIN:CLV:0.312X3.867X0.135:GR5
29	711-05670	PIN:CLV:0.229x0.418x0.079
30	712-04063	NUT:HEXFLGLK:5/16-18:GRN5:NYL
31	712-04064	NUT:HEXFLGLK:1/4-20:GRN5:NYL
32	712-04065	NUT:HEXFLGLK:3/8-16:GRN5:NYLON
33	712-05106	NUT:HEX:JAMLK:1/4-20:GRN2:NYL
34	714-0162	PIN:COT:5/32:1.25
35	714-04040	PIN:COT:BOW-TIE:1/4" - 3/8"
36	714-0474	PIN:COT:SPLIT:1/8X0.75
37	716-0231	RING:E-TYPE:.750
38	717-04954	SHAFT STEERING
39	717-04960	GEAR STEERING 14 TEETH
40	720-05145	CRUISE TILT KNOB
41	731-12895	COVER COLUMN
42	732-04748	SPRING-BRAKE TENSION
43	732-04949	SPRING TORSION LH
44	732-05528	SPRING-BRAKE TENSION
45	735-04117	PAD:PEDAL:REVERSE
46	735-04118A	PAD:PEDAL:FWD
47	735-04136	PAD:PEDAL:BRAKE
48	736-0159	WASH:FLAT:0.339X0.890X0.063
49	736-0211	WASHER:FLAT:0.276X1.265X0.060
50	736-0242	WASH:BLVL:0.336X0.885X0.060
51	736-0314	WASH:THRST:0.378X0.705X0.030
52	736-0344	WASH:FLAT:0.375x1.010x0.030:HD
53	736-04224	WASH:THRST:.504 x 0.995 x 0.04
54	736-05219	WASH:BLVL:0.635X1.250X0.049:SS
55	736-3092	WASH:FLAT:.265 x 1.0 x.030:HD
56	738-0296	SCR:SHLDR:.437 x .262:5/16-18
57	738-0380	SCR:SHLDR:0.500 X 0.267:3/8-16
58	738-04483	SPCR:SHLDR:0.255X0.375X0.195
59	738-04552B	SPACER-PULLEY
60	738-05034	SCR:SHLDR:0.395X0.540:1/4-20
61	738-05090	SCR:SHLDR:0.373X0.115:TT
62	738-05237B	SPACER
63	738-05252	BOOT, JOYSTICK
64	738-0929	SCR:SHLDR:0.498X1.440:TT
65	738-0958	SPCR:SHLDR:0.320X0.500X0.197
66	741-0225	HEX FLANGE BEARING
67	741-04425	BALL BEARING
68	741-04543	BRG:FLG:HEX 7/16 PM
69	741-0495	BRG:FLG:.630 ID X.695 OD x.60
70	747-05654A	ROD:CONT:BRAKE
71	748-0209	Bearing flange
72	748-04203	LATCH:CRUS
73	748-05150A	PAWL TILT
74	748-05156	SPACER
75	750-06497	SPACER-PULLEY
76	750-06683	SPACER
