MTD Smart 46 SPBS 12A-H45B600 (2023) Basic machine Ricambi

SELF TAPPING SCREW

Nota: Questo articolo è2 volte installato nel dispositivo, il prezzo è per pezzo!

Articolo numero:

092.70.062

Posizione:

Modell Year:

Smart 46 SPBS / 2205 Smart 46 SPBS / 2314

non più disponibile

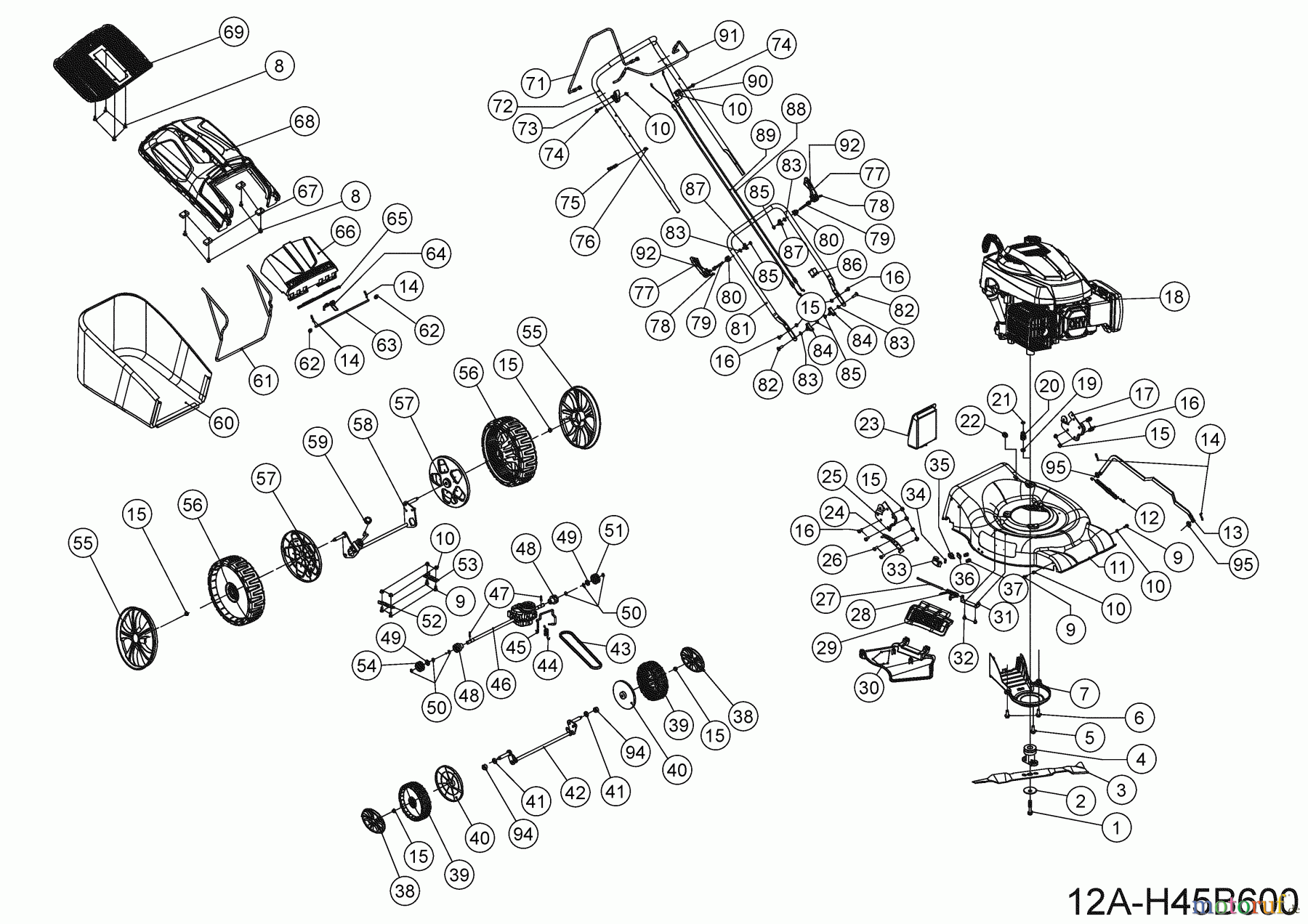

MTD Petrol mower self propelled Smart 46 SPBS 12A-H45B600 (2023) Basic machine

Posizione	Articolo numero	Descrizione
30	092.70.008
60	092.70.004
1	092.70.052	BLACK DSK
2	092.70.092	WASHER BLADE
3	092.70.104	BLADE
4	092.70.106	Hub
5	092.70.059	HEX. HEAD SELF TAPPING SCREW
6	092.70.061	HEX. HEAD SELF TAPPING SCREW
7	092.70.036	COVER
8	092.70.060	FLAT HEAD SELF TAPPING SCREW
9	092.70.049	SCREW
10	092.70.057	NUT
11	092.70.125	DECK WELDING ASSY.
12	092.70.086	SPRING-BRAKE TENSION
13	092.70.108	HEIGHT ADJUSTMENT PULL ROD
14	092.70.077	R TYPE PIN
15	092.70.058	NUT
16	092.70.047	HEX FLANGE BOLT
17	092.70.099	BRACKET ASSY.
18	092.70.138	GASOLINE ENGINE
19	092.70.022	OUTLET
20	092.70.021	INLET
21	092.70.081	O-RING
22	092.70.025	GROMMET, RUBBER
23	092.70.014	MULCHING PLUG
24	092.70.112	BOARD FOR HEIGHT ADJUSTER
25	092.70.100	BRACKET ASSY.
26	092.70.045	HALF ROUND HEAD SQUARE NECK BO
27	092.70.090	MULCH SHAFT
28	092.70.085	MULCH BOARD SPRING
29	092.70.010	PLUG MULCH HINGED
31	092.70.097	BRACKET PLATE FOR DEFLECTOR
32	092.70.062	SELF TAPPING SCREW
33	092.70.035	FIXED BLOCK HOLDER
34	092.70.083	LIMIT BLOCK SPRING
35	092.70.023	BLOCK
36	092.70.071	SIDE ROW COVERS / FIXED SEAT G
37	092.70.063	TAPPING SCREW
38	092.70.031	OUTER COVER OF HUB FOR 7" WHEE
39	092.70.039	WHEEL
40	092.70.028	INNER COVER OF HUB FOR 7" WHEE
41	092.70.064	WASHER
42	092.70.132	AXLE ASM FRONT
43	092.70.080	V-Belt
44	092.70.087	GOVERNOR SPRING
45	092.70.096	BRAKE SPRING
46	092.70.136	TRANS ASM-CSV
47	092.70.076	PIN
48	092.70.018	REAR WHEEL AXLE SLEEVE
49	092.70.044	THRUST WASHER
50	092.70.073	LOCK RING
51	092.70.117	RATCHET WHEEL K-LEFT
52	092.70.114	REAR PLATE RIGHT
53	092.70.116	REAR PLATE LEFT
54	092.70.118	RATCHET WHEEL K-RIGHT
55	092.70.034	OUTER COVER OF HUB FOR 10" WHE
56	092.70.041	WHEEL ASSY. OF 10"
57	092.70.030	INNER COVER OF HUB FOR 10" WHE
58	092.70.134	REAR AXLE
59	092.70.016	HEIGHT ADJUSTMENT BALL
61	092.70.088	GRASS CATCHING FRAME
62	092.70.072	STARLOCK 8060 6MM SHAFT 11.5MM
63	092.70.089	ROD PIVOT
64	092.70.082	COVER SPRING
65	092.70.038	REAR DISCHARGE COVER DUST PROO
66	092.70.017	REAR FLAP MTD RED 0638
67	092.70.093	WASHER FOR REAR CATCHER
69	092.70.043	FILTER NET GRASS BAG
71	092.70.124	Self-propelled Lever
72	092.70.121	Upper handle
73	092.70.001	LEVER GUARD
74	092.70.050	SCREW
75	092.70.111	ROPE GUIDE
76	092.70.054	ECROU
77	092.70.024	Lock washer
78	092.70.078	TYPE PIN
79	092.70.110	QUICK FIX HANDLE
80	092.70.095	Lock washer
81	092.70.122	LOWER HANDLE
82	092.70.046	HALF ROUND HEAD SQUARE NECK BO
83	092.70.067	washer
84	092.70.002	TRIANGLE KNOB
85	092.70.055	HEXAGON NUT
86	092.70.015	FASTENER
87	092.70.003	TRIANGLE KNOB
88	092.70.130	CABLE CONTROL
89	092.70.129	CABLE:VARIABLE:SPEED
90	092.70.094	BRAKE CABLE PLATE ASSY.
91	092.70.123	2042860
92	092.70.074	washer
94	092.70.012	FRONT BRACKET FASTENER
95	092.70.069	washer
