V-Belt

Black-Line V-Belt
Articolo numero:
754-05057
Posizione:
80
Description:
969912
Modell Year:
BLV 3530 / 2015 BLV 3530 / 2019 BLV 3530 / 2020 BLV 3530 / 2017 BLV 3530 / 2018 BLV 3530 / 2206
29.40 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Articolo aggiunto al carrello1
in magazzino in magazzino

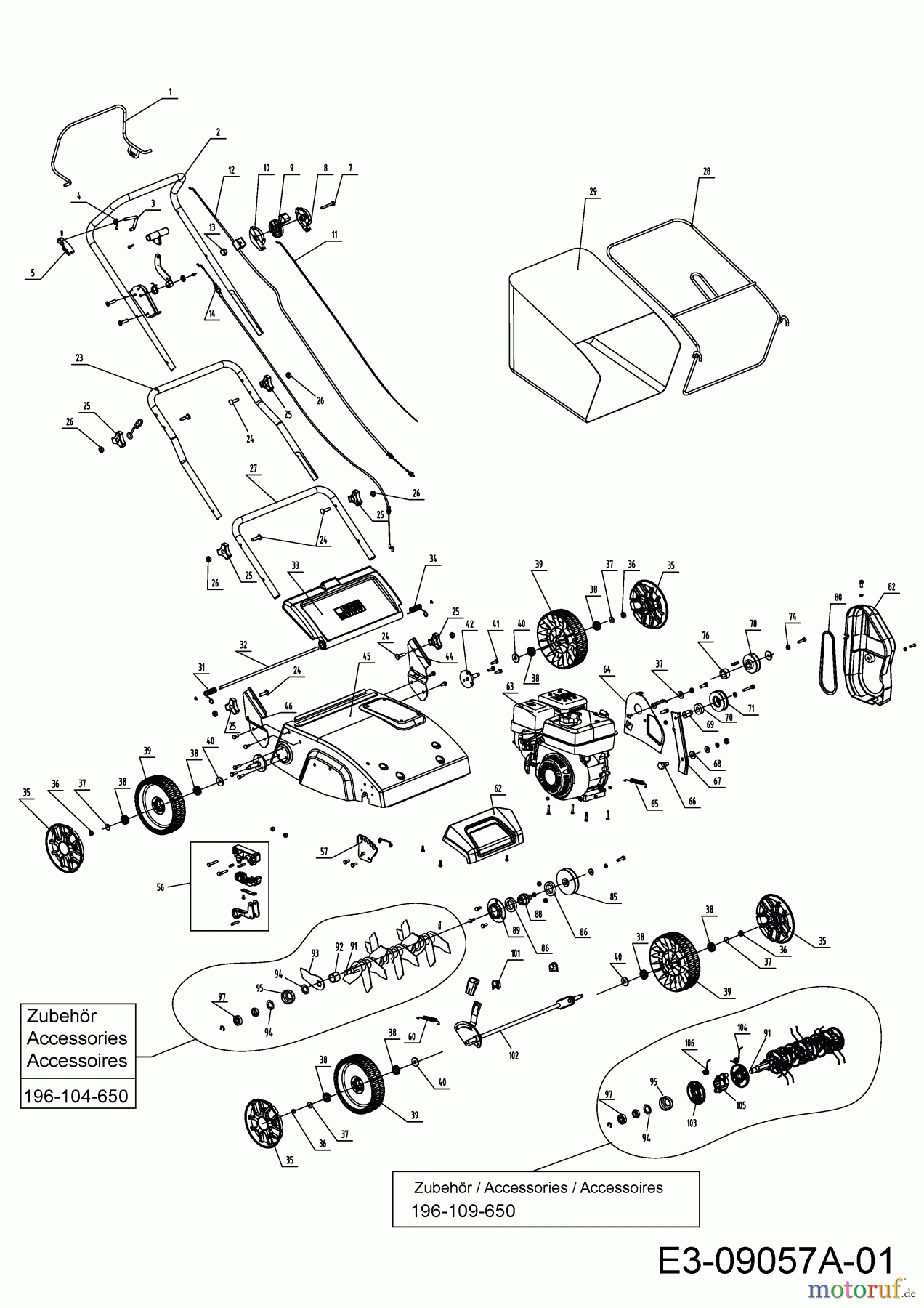

Black-Line Petrol verticutter BLV 3530 16AHGLMS683 (2022) Basic machine
PosizioneArticolo numeroDescrizione
1 747-06365DRIVE BAIL
2 749-05188Upper handle
3 707-06044CLAMPING BRACKET
4 732-05197SPRING-EXTENSION
5 731-10328LOCKING LEVER
7 710-04691SCR:M6x55mm:DIN 7985
8 731-10320HALF CASING LEFT
9 Black-Line ACCELERATOR731-10319ACCELERATOR
10 731-10321HALF CASING RIGHT
11 746-05159THROTTLE CABLE
12 746-05160CABLE SHIFT
13 712-04122NUT:CAP:M6:DIN 1587
14 Black-Line HEIGHT ADJUSTMENT CABLE746-05158HEIGHT ADJUSTMENT CABLE
23 749-05184LOWER HANDLE
24 710-06216Screw
25 731-10330WING NUT
26 Black-Line NUT:HEX:M8-1.25:CL8:DIN 934712-0690NUT:HEX:M8-1.25:CL8:DIN 934
27 749-05186LOWER HANDLE
28 664-05058FRAME GRASSBAG
29 764-05044Bag
31 732-05196TORSION SPRING RIGHT
32 711-06271ROD REAR FLAP
33 731-10315Rear flap
34 732-05195SPRING-TORSION-LH
35 734-05082HUBCAP
36 712-0692NUT:HEXLK:M8-1.25 NYLON DIN985
37 736-0700WASH:FLAT:8X16X1.6:ISO 7089
38 092.64.438BALL BEARING
39 734-05079WHEEL
40 Black-Line WASH:BLVL:0.375X0.880X0.060736-0105WASH:BLVL:0.375X0.880X0.060
41 710-05192SCREW M6X20
42 638-05007WHEEL BRACKET ASSY.
44 707-06037ATTACHMENT
45 681-05011SHELL VERTICUTTER
46 707-06038BRACKET COLUMN RIGHT
56 Black-Line QUICK RELEASE FASTENER631-05197QUICK RELEASE FASTENER
57 707-06040PLATE-CRUISE ADJUST
60 732-05192SPRING-BRAKE TENSION
62 731-10318COVER FRONT
63 752Z161-VHAENG 123 CC OHV HORIZ SHAFT
64 707-06039BRACKED-IDLER ENGAGE
65 732-05193SPRING-BRAKE TENSION
66 711-06270Screw
67 707-06042Idler arm
69 750-06219SPACER-PULLEY
70 Black-Line Ball bearing26.1027.02Ball bearing
71 756-05074PULLEY-IDLER-FLAT
76 750-06218SPACER-PULLEY
78 756-05071PULLEY
80 Black-Line V-Belt754-05057V-Belt
82 731-10317GUARD-BELT RH
85 756-05072PULLEY
86 Black-Line BALL BEARING 61906-2Z092.64.439BALL BEARING 61906-2Z
88 Black-Line FITTING,CONNECTOR711-06269FITTING,CONNECTOR
89 707-06043BEARING HOLDER
91 Black-Line AXLE-FR711-06326AXLE-FR
92 731-10498SPACER BLADE
93 742-05096VERTICUTTER BLADE
94 736-05090WASHER
95 731-10501COVER-HARD TOP
97 Black-Line BALL BEARING 6002-2Z092.64.440BALL BEARING 6002-2Z
101 731-10329BUSHING
102 638-05005FRONT AXLE
103 731-10505BUSH RETAINER SPRING TINE
104 Black-Line SPRING TINE LEFT732-05224SPRING TINE LEFT
105 731-10506RETAINER SPRING TINE
106 Black-Line SPRING TINE RIGHT732-05222SPRING TINE RIGHT
