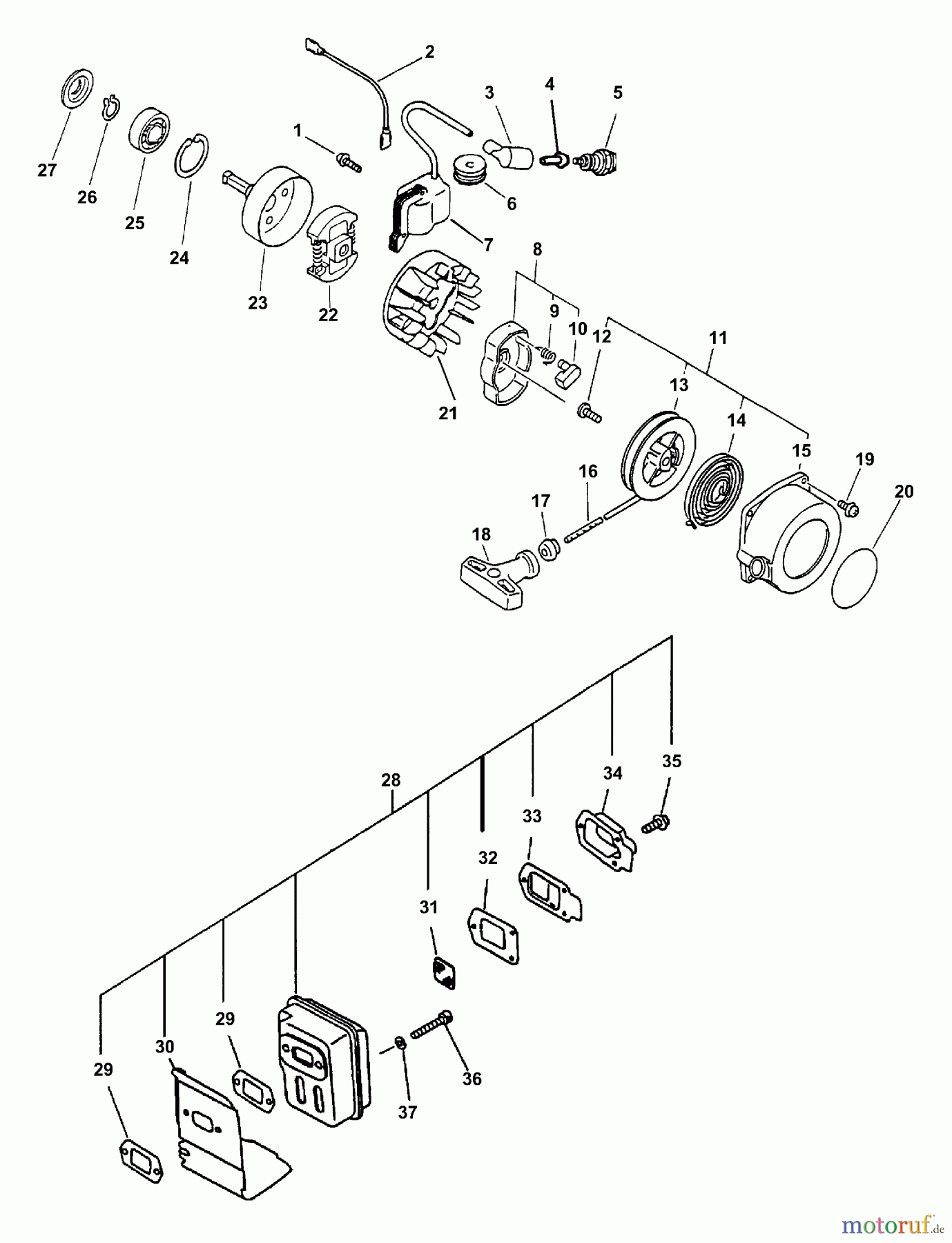

Echo Hochentaster PPSR-2433 - Echo Pole Saw / Pruner, S/N: 504000 - 999999 (Type 1E) Ignition, Starter, Clutch, Muffler

Posizione	Articolo numero	Descrizione
1	16-900162-04022	Schraube (10)
2	16-V485-001080	Kabel CS-310ES
3	16-159012-01620	Zündkerzenkappe SRM-2010, CS-
4	16-159011-03432	Kontaktfeder CS-2600/4200/PB-
5	1699944500071
5	16-159010-10230	Zündkerze CS-2600/SRM-320/350/
6	16-150112-44330	Gummidichtung PPT-2100,PPT-
7	16-156626-52730	Zündspule HC-2410 ab Serie
8	16-177202-44331	Starterklinke ES-1000 ab Ser.-
9	16-177234-12220	Feder, Starterklinke RM-4000/
10	16-177218-44330	Starterklinke SRM-2450/PB-
11	16-177200-42033	Starter kpl. ES-2000/2100/
12	16-177236-44330	Schraube CS-2600/ SRM-320/350/
13	16-177215-44430	Seilscheibe SRM-2305/ES-2100/
14	16-177220-42030	Starterfeder ES-2100/2400/HC-
15	16-177232-42032	Startergehäuse GT-2010 SRM-
16	16	16
17	16-177227-42030	Seilführung ES-2100/2400/HC-
18	16-177228-06530	Startergriff ES-2100/2400/HC-
19	16-900163-04016	Schraube
20	16X502000190
21	16-156801-09660	Polrad HC-2410 ab 001868
22	16-175000-56831	Kupplung SRM-220ES/T-226
23	16-175005-44331	Kupplungstrommel GT-2150/T-226
24	16-900702-00032	Seegerring, innen, 32mm
25	16-94054-06201	Kugellager
26	16-900701-00012	Seegerring außen 12mm
27	16-175053-04920	Ring
28	1614580052631
29	16-V104-000160	Dichtung, Auspuff PB-2400, GT-
30	16-145871-52130	Auspuffschutz HC-2400
31	16-145862-40630	Funkenschutzsieb SHR-170SI/
32	16-145866-42031	Dichtung HC-2410/SRM-250/GT-
33	16-145876-42030	Auslasstutzen, Auspuff ES-
34	16-145818-52130	Auspuffabdeckung PPT-2400
35	16-900238-04010	Schraube M4 x 10 ES-2400,PB-
36	16-900105-05055	Schraube EA-410/SHR-170SI/T-
37	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
