Kawasaki Motoren FA210V - AS02 bis FH641V - DS24 FD440V-AS02 - Kawasaki FD440V 4-Stroke Engine CARBURETOR Ricambi

Name: SHAFT-CARBURETOR,THRO
Price: 36.02 EUR

SHAFT-CARBURETOR,THRO

Articolo numero:

KA160412210

Posizione:

16041

36.02 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

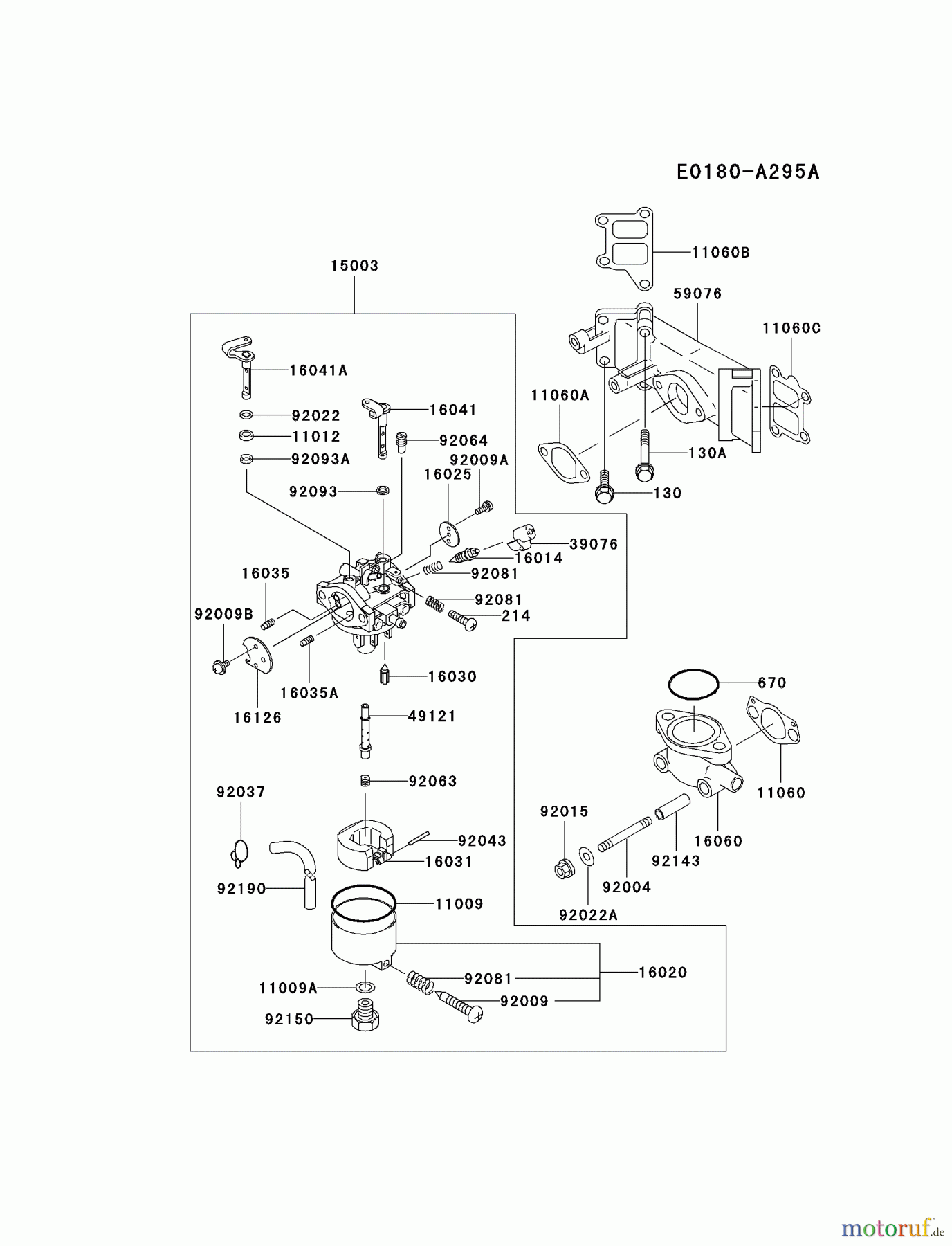

Posizione	Articolo numero	Descrizione
11009	KA110092037	GASKET
11009A	KA110092918	DICHTUNG BENZINSTANDSMESSER
11012	KA110122239	CAP
11060	KA110602092	DICHTUNG BENZINSTANDSMESSER
11060A	KA110602093	DICHTUNG BENZINSTANDSMESSER
11060B	KA110602094	DICHTUNG BENZINSTANDSMESSER
11060C	KA110602095	DICHTUNG BENZINSTANDSMESSER
15003	KA150032361	CARBURETOR-ASSY
16014	KA160142075	SCREW-PILOT AIR
16020	KA160202052	CHAMBER-FLOAT
16025	KA160252130	VALVE-THROTTLE,#130
16030	KA160302083	VALVE-FLOAT
16031	KA160312062	FLOAT
16035	KA160352052	JET-AIR,#1.5
16035A	KA160352063	JET-AIR,#0.9
16041	KA160412210	SHAFT-CARBURETOR,THRO
16041A	KA160412238	WELLE VERGASER
16060	KA160602157	PIPE-INTAKE
16126	KA161262056	VALVE,CHOKE
39076	KA390762053	LIMITER
49121	KA491212195	NOZZLE-MAIN
59076	KA590762077	MANIFOLD-INTAKE
92004	KA920042133	STUD,6X100
92009	KA920092015	SCREW
92009A	KA920092024	SCREW
92009B	KA920092081	SCREW
92015	KA920151367	NUT
92022	KA920221608	WASHER,THROTTLE STOP
92022A	KA920222373	WASHER
92037	KA920371043	CLAMP,TUBE
92043	KA920432006	PIN
92063	KA920632266	JET-MAIN
92064	KA920642102	JET-PILOT
92081	KA920812009	SPRING
92093	KA920932002	SEAL
92093A	KA920932070	SEAL
92143	KA921432011	COLLAR
92150	KA921502098	BOLT
92190	KA921902128	TUBE
130	KA130BA0616	BOLT-FLANGED
130A	KA130BA0640	BOLT-FLANGED
214	KA214AA0414	SCREW-PAN+-
670	KA670B3032	'O' RING,32MM
