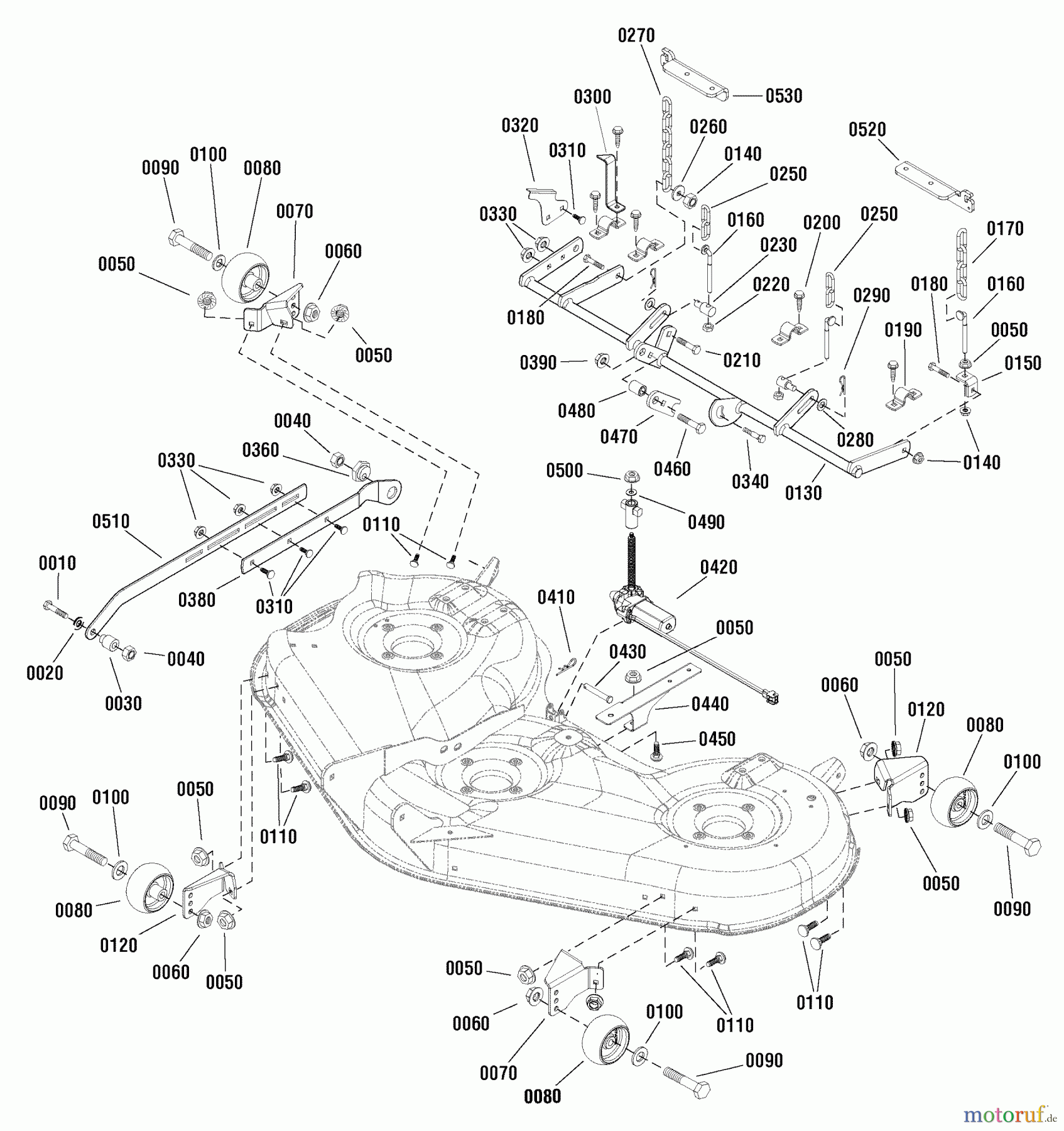

Murray 107.250050 (2691086-00) - Craftsman CTX9000, 46" Rear Lawn Tractor, 22HP (2012) 46" Mower Deck - Height Adjust Group (2990144) Ricambi

Name: NUT.31-18 FLANGELOCK
Price: 4.73 EUR

NUT.31-18 FLANGELOCK

Articolo numero:

BS015X79MA

Posizione:

0330

4.73 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Murray Rasen- und Gartentraktoren 107.250050 (2691086-00) - Craftsman CTX9000, 46

Posizione	Articolo numero	Descrizione
0010	BS7091553YP	HHCS, 3/8C X1-3/4
0020	BS5025156SM	SCHEIBE, 3/8" SAE
0030	BS1706644SM	SPACER,3/8X3/4X15/16
0040	BS2860681SM	MUTTER SELBSTSICH.
0050	BS1931277SM	MUTTER - HEX
0060	BS1960687SM	NUT - SKID SHOE
0070	BS1736074AYP	HALTER, RECHTS
0080	BS1714760SM	RAD AUFNAHME
0090	BS2108765SM	RADBOLZEN 3/8-16X2.7
0100	BS1960170SM	SCHEIBE-0500(0.51IDX1
0110	BS1931334SM	BOLZEN-STREBE HD SH SQ NK 5
0120	BS1736075AYP	HALTER, LINKS
0130	BS1753343AYP	SHAFT, ROCKER 46"
0140	BS1960686SM	NUT, HEX
0150	BS1751826AYP	BRACKET, FRAME MOUNT
0160	BS7028728SM	KETTENSPANNER
0170	BS1708088ASM	KETTENVERBIND. 06.08 SCHWARZ
0180	BS7091928SM
0190	BS1665374SM	STRAP-1.00WD 3.06LG .
0200	BS1664847SM	SCHRAUBE
0210	BS1960268SM	BOLZENACHSE HD SH SQ NK3
0220	BS7091493YP	HJN, 5/16C GR.B YZ
0230	BS1731382SM	TRAGZAPFEN- .37+.625OD
0250	BS1731383ASM	KETTENVERB.GLIED 2.8 LG 2 L
0260	BS1919381SM	ABZIEHER-SCHEIBE
0270	BS1708266ASM	KETTENVERBIND. 8.4 LG 06
0280	BS1960103SM	U-SCHEIBE-0.375(0.39IDX0
0290	BS1960074SM	CLIP, HAIR PIN .093DI
0300	BS1751880AYP	BRACKET, HOC
0310	BS7090001YP	BOLZEN 5/16-18 X 3/4
0320	BS1751846AYP	BRACKET, HOC
0330	BS015X79MA	NUT.31-18 FLANGELOCK
0340	BS1729576SM	BOLZEN 5/16-18 1.
0360	BS1727381SM	NUT-HEX ADJUSTING .99
0380	BS1739691AYP	ARM, PITCH ADJUSTMENT
0390	BS7091619SM	HFLN, 3/8C YZ
0410	BS1960221SM	SICHERUNGSSPLINT .062DIA
0420	BS1738294YP	MOTOR, MINI EHOC
0430	BS1668344SM	SHEAR PIN
0440	BS1734806AYP	BRKT, ROCKER SHAFT, 4
0450	BS1931333SM	BOLT
0460	BS7091810SM	(C) RHSNB, 3/8C X1-3/
0470	BS1751801AYP	ARM, MOUNT, EHOC, 3/4
0480	BS7014334YP	DISTANZRING 625 OD
0490	BS1921319SM	ABZIEHER-SCHEIBE
0500	BS1960757SM	MUTTER
0510	BS1739554AYP	ARM, PITCH ADJUSTMENT
0520	BS1727103ASM	HANGER-LH SNAPPER MWR
0530	BS1727102ASM	HANGER-RH SNAPPER MWR
