Murray 30577x31A - Scotts 30" Lawn Tractor (1998) (Home Depot) Body Chassis Ricambi

Name: UNTERLEGSCHEIBE.26.75 16G FLT
Price: 5.04 EUR

UNTERLEGSCHEIBE.26.75 16G FLT

Articolo numero:

BS017X38MA

Posizione:

5.04 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

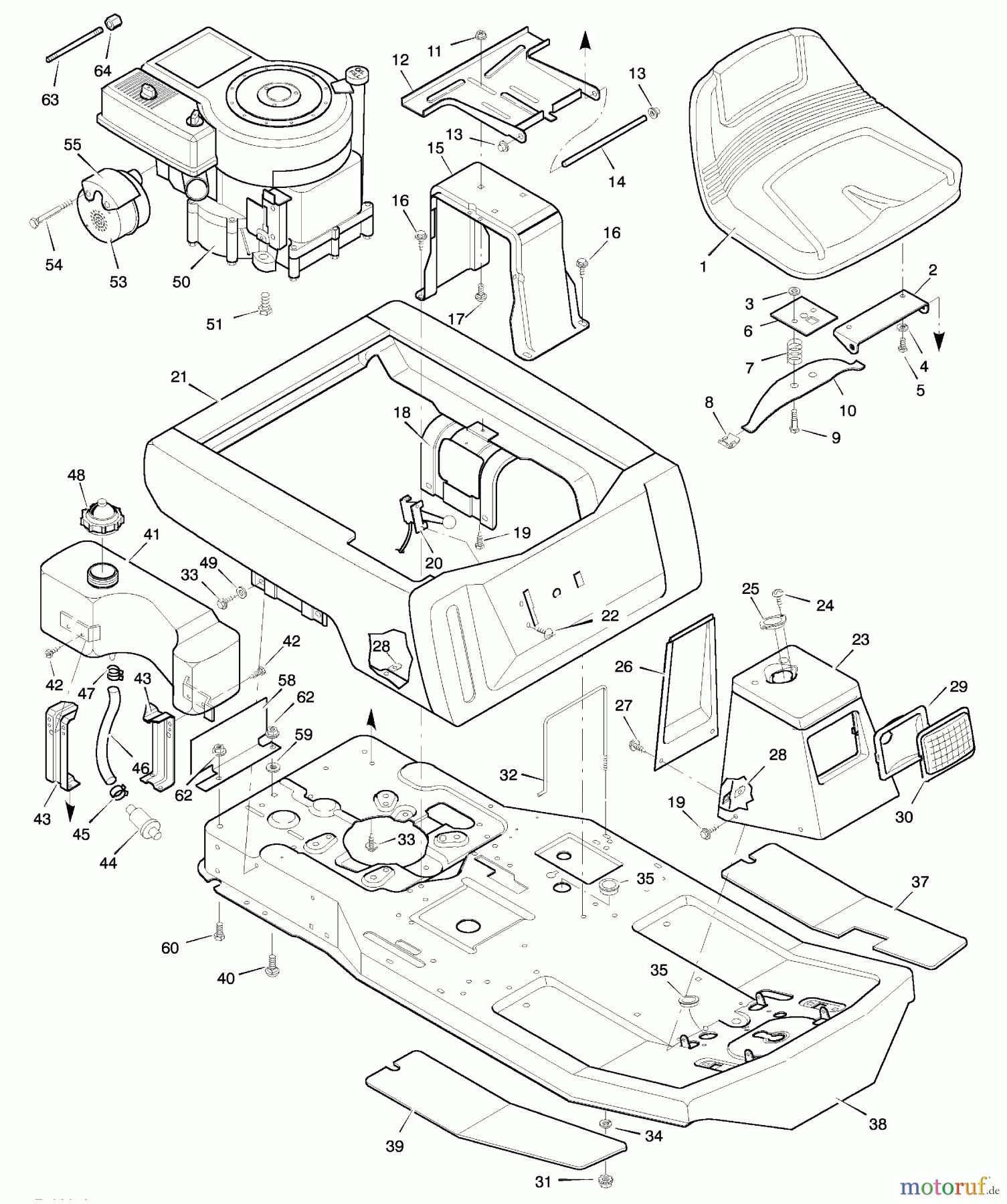

Murray Rasen- und Gartentraktoren 30577x31A - Scotts 30

Posizione	Articolo numero	Descrizione
1	BS092387MA	SITZ,FAULHABER #2 SM
2	BS056516E700MA	SEAT HINGE
3	BS028X64MA	DRUCKBUGEL .312
4	BS018X16MA	WASHER.31.56X.05 SPLI
5	BS001X45MA	BOLT-HEX.31-18X0.62 Z
6	BS091963ZMA	PLATE ASSY,SWITCH
7	BS164X26MA	DRUCKFEDER
8	BS091822MA	FEDERGLEITSTUCK
9	BS009X38MA	BOLT,SHD .32-16X.500D
10	BS091964MA	SITZFEDER
11	BS015X88MA	NUT,CENTERLOCK Z .3
12	BS056518E700MA	SITZHALTERUNG ZAPFEN PIVOT
13	BS028X23MA	PUSH CAP.375
14	BS056537ZMA	ROD -SEAT HINGE
15	BS056517E700
16	BS26X249MA	SCREW-.312-18X.75
17	BS002X53MA	BOLT,CRG .31-18 X 0.
18	BS055017E700MA	SUPPORT R. BODY
19	BS26X214MA	SCREW HEXHEAD TAP.
20	BS056599
21	BS054766E700
22	BS26X201MA	SCREW Z/BL CHROMATE
23	BS055019SE
24	BS26X201MA	SCREW Z/BL CHROMATE
25	BS056022MA	LAGER LENKSAULE
26	BS055023E700
27	BS004X24MA	SCREW-MCH.25-20X0.50
28	BS028X18MA	KLEMMMUTTER
29	BS056241ZMA	REFLEKTOR
30	BS090082MA	LINSE
31	BS015X66MA	MUTTER.25-20 KEPS LOCK Z
32	BS054800ZMA	BATTERY CLAMP
33	BS026X49MA	SCHRAUBE .31X50 TYPE B
34	BS017X38MA	UNTERLEGSCHEIBE.26.75 16G FLT
35	BS021268
37	BS056107
38	BS056611E700
39	BS056106
40	BS002X53MA	BOLT,CRG .31-18 X 0.
41	BS7601078MA	KIT, FUEL TANK RER
42	BS26X213MA	SCREW 25X75 (ARDS
43	BS1401271E701MA	KONSOLE FUNK TANK
44	BS056002
45	BS091174
46	BS091022
47	BS023713MA	SCHLAUCHSCHELLE ROT
48	BS092317MA	BENZINDECKEL
49	BS0019X6MA	SCHEIBE
50	BS	Eingangswelle UE 600
51	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
53	BS090330
54	BS01X118MA	BOLT-HEX.31-18X3.37 P
55	BS090332
58	BS056636E700
59	BS028X64MA	DRUCKBUGEL .312
60	BS001X91MA	BOLT-HEX.31-18X0.75 Z
62	BS015X76MA	NUT .31-18 KEPS LOCK
63	BS056261
64	BS021651ZMA	PIPE CAP
--	BSF-98672
--	BSF-98673
--	BS44X7672
--	BS44X7673
--	BS44X6651
--	BS44X7774MA	DEC - WARNING - FR/EN
