Murray 405000x8F - Scotts 40" Lawn Tractor (2005) (Home Depot) Chassis & Hood Ricambi

Name: FORMHAUBE - X3 1001
Price: 466.20 EUR

FORMHAUBE - X3 1001

Articolo numero:

BS1001538E701MA

Posizione:

466.20 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

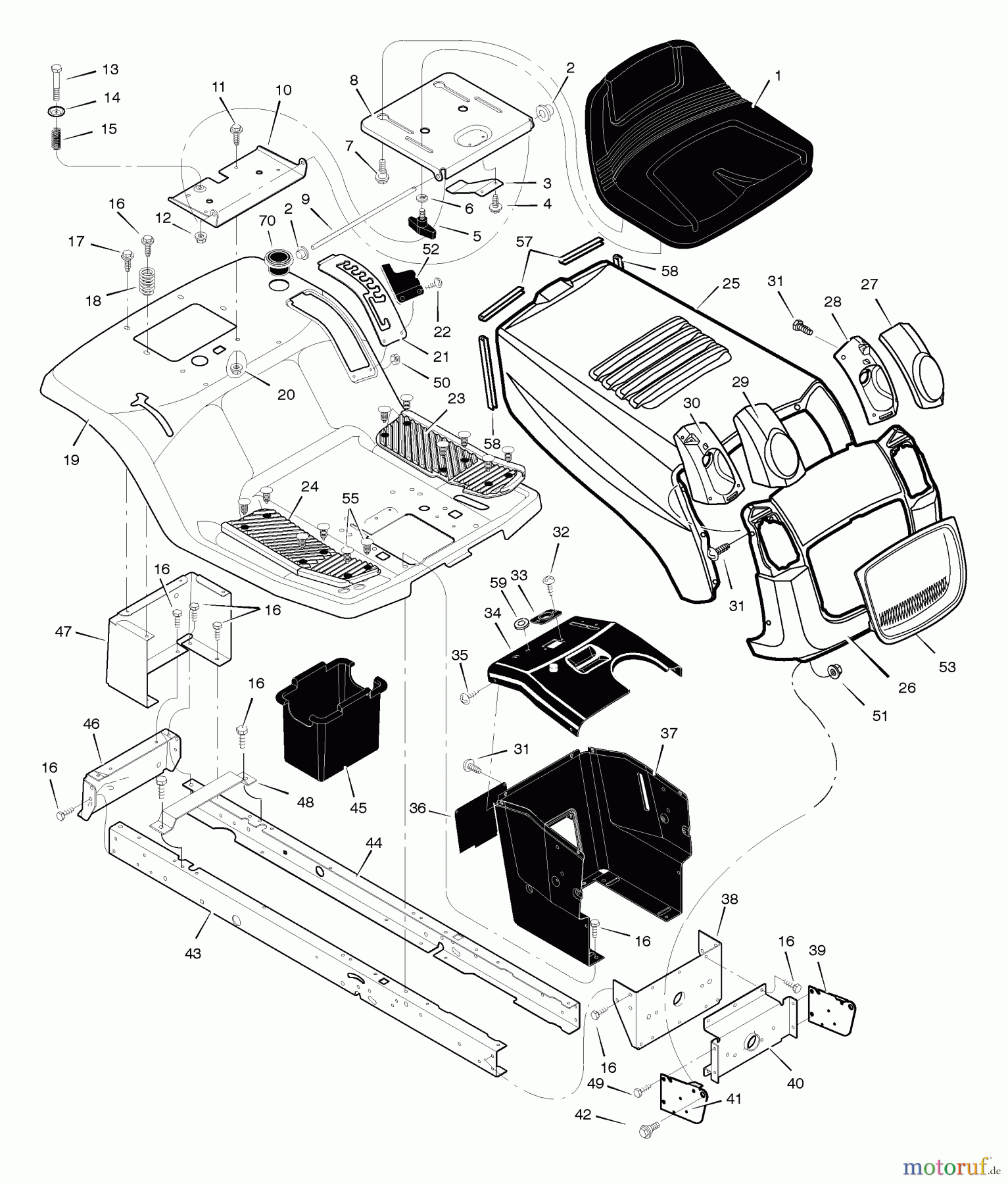

Murray Rasen- und Gartentraktoren 405000x8F - Scotts 40

Posizione	Articolo numero	Descrizione
1	BS690566MA	SEAT MID-BACK BLACK
2	BS028X23MA	PUSH CAP.375
3	BS094057MA	BLATTFEDER
4	BS26X229MA	SCREW 1/4 14X.38 STHX
5	BS1001054MA	BOLT - WING
6	BS017X47MA	UNTERLEGSCHEIBE .34 .62
7	BS009X56MA	ANSATZBOLZEN.32-18X.375D
8	BS094154E701MA	SUPPORT, SEAT
9	BS094156ZMA	ROD - PIVOT
10	BS1001648E701MA	BRACKET - SEAT PIVOT
11	BS001X45MA	BOLT-HEX.31-18X0.62 Z
12	BS015X89MA	MUTTER 25-20FLANSCHARRETIERUNG
13	BS009X55MA	BOLT-SHD.25-20X.312D
14	BS094155ZMA	TOPFSCHEIBE
15	BS164X31MA	DRUCKFEDER
16	BS26X249MA	SCREW-.312-18X.75
17	BS26X263MA	SCREW.25-20 S-T
18	BS164X30MA	DRUCKFEDER
19	BS1001987E701MA	DECK - KLEINER SITZ- G
20	BS15X123MA	MUTTER.31-18 NYLOCK ZINK
21	BS094151E701MA	LIFT - DETENT PLATE
22	BS009X47MA	BOLT-SHD.
23	BS1001582MA	FORMMATTE / HAELFTE - LINKS
24	BS1001578MA	FORMMATTE / HAELFTE - RECHTS
25	BS1001538E701MA	FORMHAUBE - X3 1001
26	BS1001531E701MA	GRILL/GITTER - X1
27	BS1001546MA	PLASTIKABDECKUNG-X1-LINKS
28	BS1001544MA	SCHEINWERFER GEHAUSE X1-L.
29	BS1001545MA	PLASTIC COVER - X1 -
30	BS1001547MA	HEADLAMP ASSY X1 - R.
31	BS26X250MA	SCREW-TAPPING 10-16
32	BS26X238MA	SCREW 1/4'' AB X.50
33	BS1001491MA	STEUERLAGER
34	BS7300774ZMA	INSTRUMENTENTAF.
35	BS26X201MA	SCREW Z/BL CHROMATE
36	BS093007E701MA	PANEL-SIDE ACCESS
37	BS095318E701MA	ARMATURENSTUTZE
38	BS1001270E701MA	BRKT - REAR HANGER
39	BS094085E701MA	SUPPORT, GRILLE LH
40	BS094007E701MA	AXLE, HANGER
41	BS094084E701MA	GRILL/GITTERSTUTZE RECHTS
42	BS009X58MA	ANSATZBOLZEN
43	BS1001928E701MA	LANGSTRAGER RECHTS
44	BS1001927E701MA	LANGSTRAGER LINKS
45	BS690424MA	BATTERY CONTAINER
46	BS1001002E701MA	PLATE-HITCH
47	BS690434E701MA	PANEL - REAR
48	BS690482E701MA	BRKT BATTERY SUPPORT
49	BS26X277MA	SCREW-5/16-18X.50
50	BS015X81MA	NUT#10-24 MCLEANLOCK
51	BS15X124MA	MUTTER
52	BS094610MA	COVER-LIFT DETENT
53	BS1001540MA	GRILLE INSERT-DIA- BL
55	BS0193X1MA	FASTENER-PANEL
57	BS1001652MA	ZIERLEISTE-SCHWARZ - 3.75
58	BS1001653MA	ZIERLEISTE-SCHWARZ - 6.5
59	BS1001755MA	DICHTSCHEIBE GROMMET-PARKBREMS
70	BS1001542MA	GETRANKEHALTER
--	BS1002007MA	TEILETASCHE/-BEUTEL ASSY
--	BSF-050710L
