Murray 40507x31B - Scotts 40" Lawn Tractor (2001) (Home Depot) Mower Housing Ricambi

Name: SCHARNIER-/GELENKHALTERUNG
Price: 31.19 EUR

SCHARNIER-/GELENKHALTERUNG

Articolo numero:

BS094956E701MA

Posizione:

31.19 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

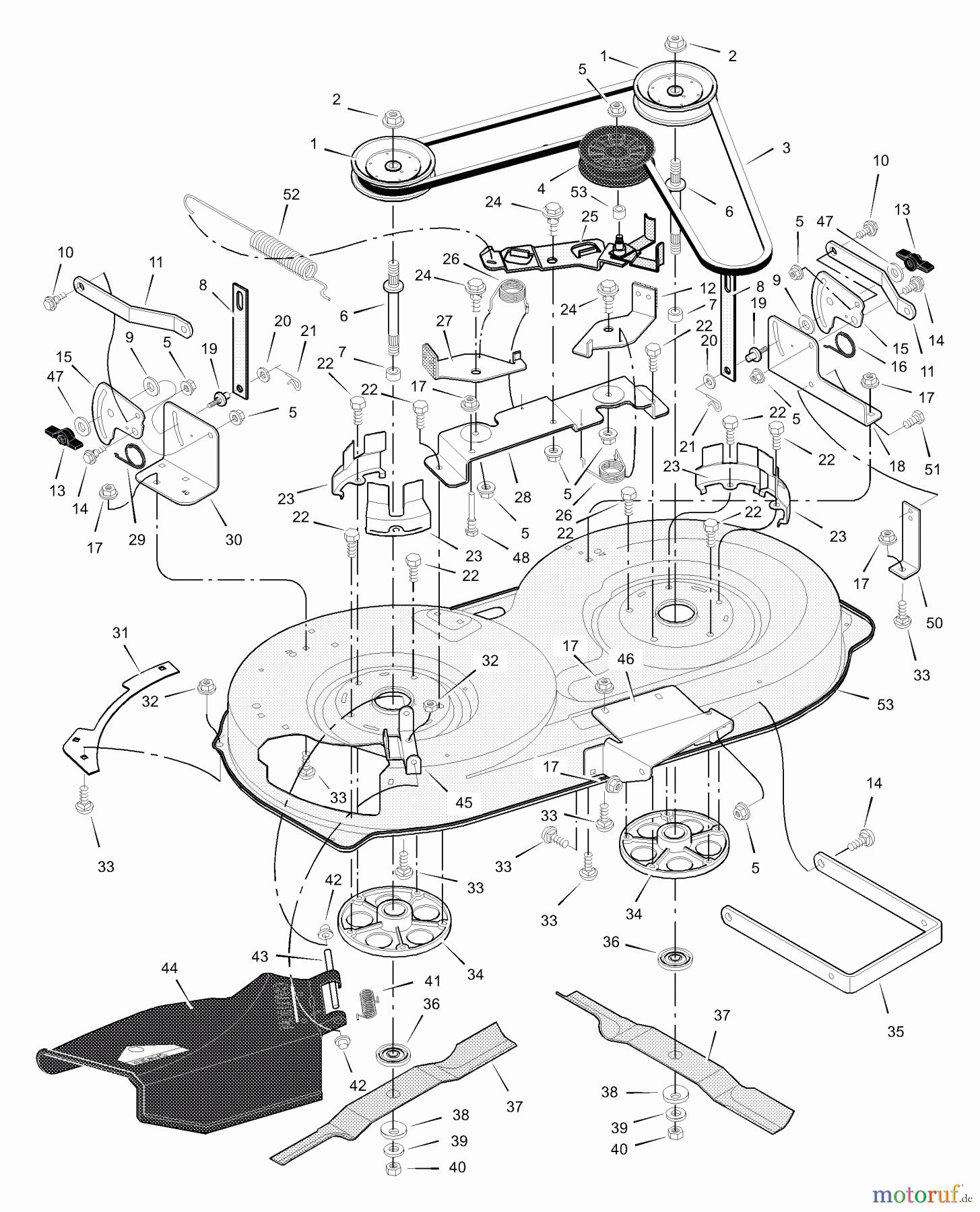

Murray Rasen- und Gartentraktoren 40507x31B - Scotts 40

Posizione	Articolo numero	Descrizione
1	BS092851MA	RIEMENSCHEIBE-BLINDWELLE 40
2	BS15X140MA	MUTTER.56-18 RIEMENSCHEIBE ZIN
3	BS037X62MA	BELT-85.94 WEDGE
4	BS690387MA	PULLEY - BACKSIDE IDL
5	BS015X84MA	MUTTER, CENTERLOCK .38-
6	BS774091MA	MANDREL SPLIN 7.03 Q1
7	BS094130MA	SPACER
8	BS690212E701MA	LIFT LINK (LT)
9	BS094137MA	FRICTION PAD
10	BS009X52MA	ANSATZBOLZEN .38-16X.600D
11	BS094055E701MA	HALTER HECKAUFHANGUNG/HECKFEDE
12	BS094049E701MA	BREMSARM & BELAG LINKS
13	BS094068MA	KNOB
14	BS009X51MA	BOLT-SHD.38-16X.499D
15	BS094128E701MA	SUSPENSION PLATE
16	BS166X43MA	TORSIONSFEDER LINKS
17	BS015X79MA	NUT.31-18 FLANGELOCK
18	BS094143E701MA	HALTER, GRUNDTRAGER LH 40
19	BS776060MA	NUT, 3/8-16
20	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
21	BS0031X4MA	PIN, HAIR .56D - .09
22	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
23	BS094051E701MA	RIEMENSCHEIBENABDECKUNG SEGMEN
24	BS009X39MA	ANSATZBOLZEN .38-16 X .
25	BS690408E701MA	IDLER ARM ASSY
26	BS166X41MA	SPRING TORSION BRKE
27	BS094047E701MA	BREMSBELAG & ARM RECHTS
28	BS094143E700
29	BS166X42MA	TORSIONSFEDER RECHTS
30	BS094142E700
31	BS091770E701MA	BLECH
32	BS015X88MA	NUT,CENTERLOCK Z .3
33	BS002X53MA	BOLT,CRG .31-18 X 0.
34	BS492574MA	JACKSHAFT HSNG
35	BS690539E701MA	BRKT-FRT SUSPENSION
36	BS092466MA	ADAPTER- MESSER
37	BS095103E701MA	SINGLE BLADE - 095103
38	BS17X166MA	WASHER.62-1.7 11G - B
39	BS17X165MA	UNTERLEGSCHEIBE.62-1.0-.18 FL
40	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
41	BS0166X4MA	SPRING-TORSION
42	BS028X23MA	PUSH CAP.375
43	BS094957ZMA	ROD -DEFLECTOR
44	BS094707MA	DEFLECTOR ASSY - CHUT
45	BS094956E701MA	SCHARNIER-/GELENKHALTERUNG
46	BS094144E700
47	BS017X45MA	WASHER,FLAT .33 1. 16
48	BS094781MA	SCREW GUIDE
50	BS094681E701MA	HALTEWINKEL
51	BS26X249MA	SCREW-.312-18X.75
52	BS165X119MA	ZUGFEDER
53	BS690369MA	SPACER 1/2'' TO 17 MM
54	BS094141E701MA	40" BLD HSNG ASSY
