Murray 425600x31A - Scotts 42" Lawn Tractor (2003) (Home Depot) Chassis & Hood Ricambi

Name: PLASTIC COVER - X2 -
Price: 18.90 EUR

PLASTIC COVER - X2 -

Articolo numero:

BS1001551MA

Posizione:

18.90 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

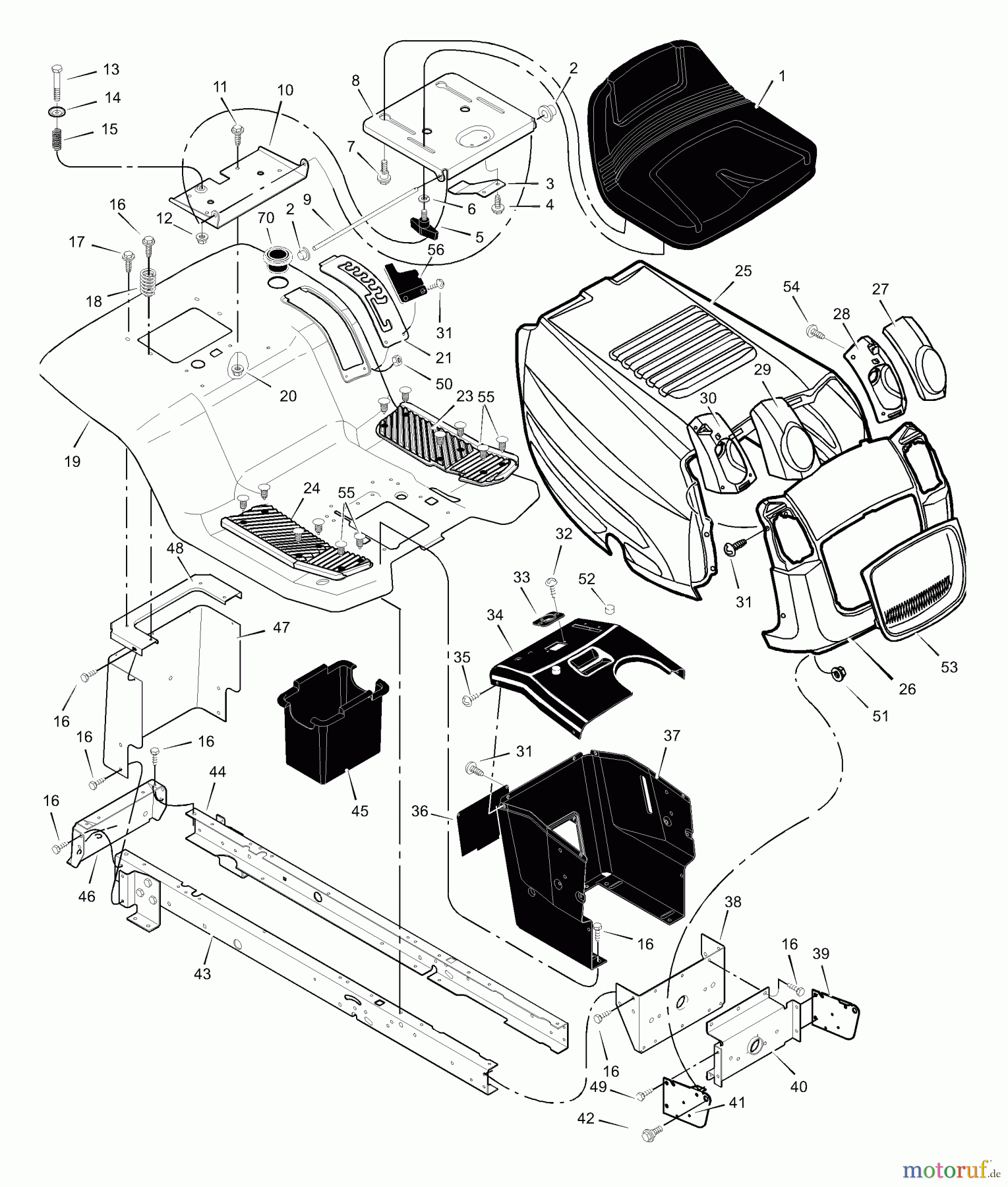

Murray Rasen- und Gartentraktoren 425600x31A - Scotts 42

Posizione	Articolo numero	Descrizione
1	BS1001028MA	RUCKSITZ, HI - ISC
2	BS028X23MA	PUSH CAP.375
3	BS094057MA	BLATTFEDER
4	BS26X229MA	SCREW 1/4 14X.38 STHX
5	BS1001054MA	BOLT - WING
6	BS017X47MA	UNTERLEGSCHEIBE .34 .62
7	BS009X56MA	ANSATZBOLZEN.32-18X.375D
8	BS094154E701MA	SUPPORT, SEAT
9	BS094156ZMA	ROD - PIVOT
10	BS1001648E701MA	BRACKET - SEAT PIVOT
11	BS001X45MA	BOLT-HEX.31-18X0.62 Z
12	BS015X89MA	MUTTER 25-20FLANSCHARRETIERUNG
13	BS009X55MA	BOLT-SHD.25-20X.312D
14	BS094155ZMA	TOPFSCHEIBE
15	BS164X31MA	DRUCKFEDER
16	BS26X249MA	SCREW-.312-18X.75
17	BS26X263MA	SCREW.25-20 S-T
18	BS164X30MA	DRUCKFEDER
19	BS1001556E700MA	SEAT DECK
20	BS15X123MA	MUTTER.31-18 NYLOCK ZINK
21	BS094194E701MA	LIFT DETENT PLATE LG
22	BS009X47MA	BOLT-SHD.
23	BS095408MA	FORMMATTE / SCHWARZ - LINKS
24	BS095409MA	FORMMATTE / SCHWARZ - RECHTS
25	BS1001537E701MA	FORMSCHLAUCH X2 1001
26	BS1001533E700MA
27	BS1001552MA	PLASTIKABDECKUNG - X2-L
28	BS1001554MA	HEADLAMP ASSY - X2 -
29	BS1001551MA	PLASTIC COVER - X2 -
30	BS1001553MA	SCHEINWERFER ASSY - X2 -
31	BS26X250MA	SCREW-TAPPING 10-16
32	BS26X238MA	SCREW 1/4'' AB X.50
33	BS1001491MA	STEUERLAGER
34	BS1001594E701MA	ARMATURENBRETT - EINZELN - W2/
35	BS26X201MA	SCREW Z/BL CHROMATE
36	BS093007E701MA	PANEL-SIDE ACCESS
37	BS095318E717MA	DASH SUPPORT
38	BS1001270E701MA	BRKT - REAR HANGER
39	BS094085E701MA	SUPPORT, GRILLE LH
40	BS094007E701MA	AXLE, HANGER
41	BS094084E701MA	GRILL/GITTERSTUTZE RECHTS
42	BS009X58MA	ANSATZBOLZEN
43	BS1001268E700
44	BS1001269E701MA	RAIL-FRAME LH
45	BS690424MA	BATTERY CONTAINER
46	BS1001002E700
47	BS690218E700MA	PLATTE-HINTEN
48	BS94186E700
49	BS26X277MA	SCREW-5/16-18X.50
50	BS015X81MA	NUT#10-24 MCLEANLOCK
51	BS15X124MA	MUTTER
52	BS094376MA	STOPPLEISTE
53	BS1001617MA	GRL INSERT 2-BLK/SILV
54	BS26X259MA	SCHRAUBE-#10X.5 AB W/WAS
55	BS0193X1MA	FASTENER-PANEL
56	BS094680MA	ABDECKUNG/FESTSTELLVORRICHT.,
70	BS1001542MA	GETRANKEHALTER
--	BSF-030736L
