Murray 425613x31A - Scotts 42" Lawn Tractor (2002) (Home Depot) Chassis And Hood Ricambi

Name: HAUBENZAPFENSTANGE PIVOT
Price: 98.39 EUR

HAUBENZAPFENSTANGE PIVOT

Articolo numero:

BS093137ZMA

Posizione:

98.39 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

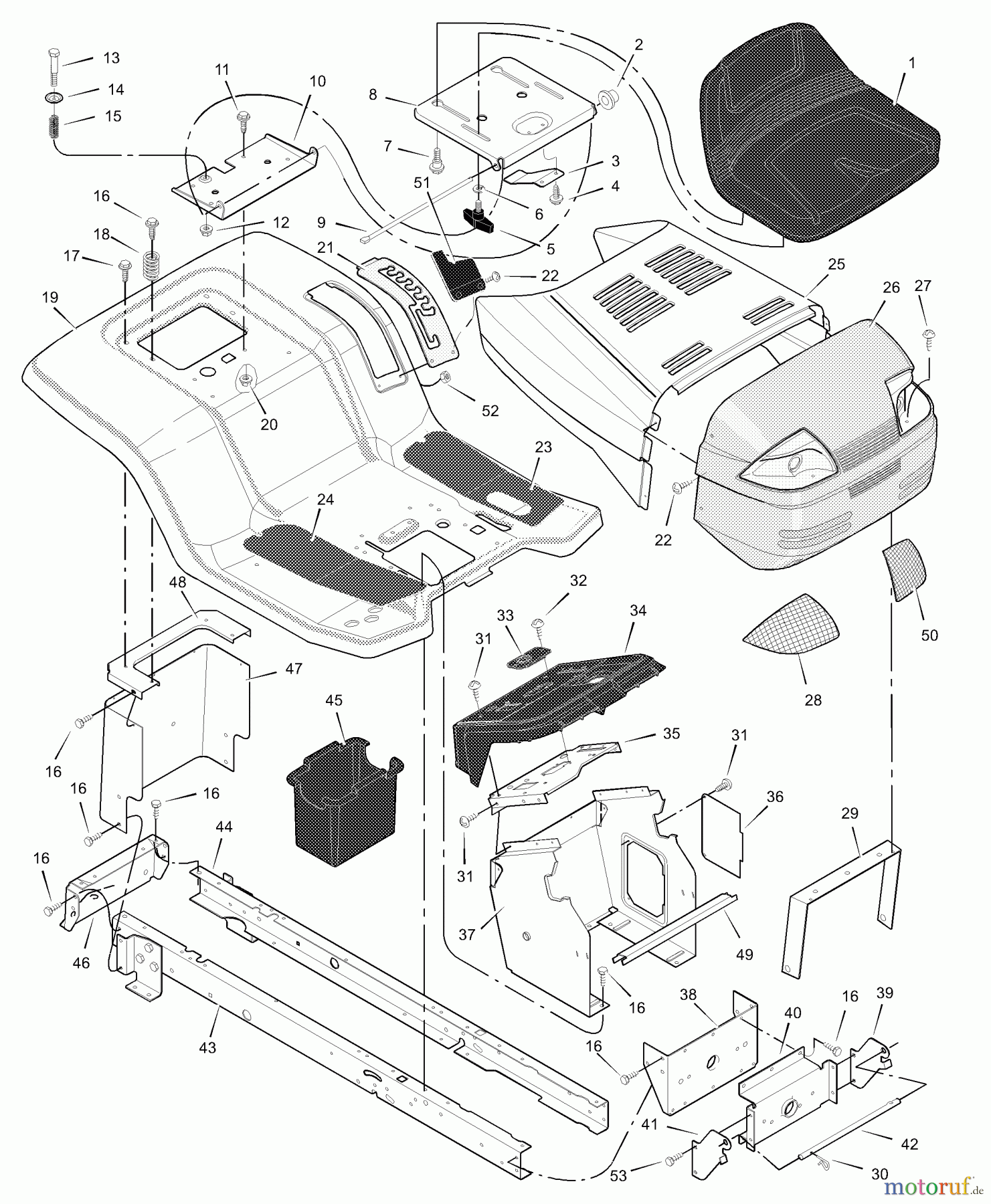

Murray Rasen- und Gartentraktoren 425613x31A - Scotts 42

Posizione	Articolo numero	Descrizione
1	BS1001028MA	RUCKSITZ, HI - ISC
2	BS028X23MA	PUSH CAP.375
3	BS094057MA	BLATTFEDER
4	BS26X229MA	SCREW 1/4 14X.38 STHX
5	BS1001054MA	BOLT - WING
6	BS017X47MA	UNTERLEGSCHEIBE .34 .62
7	BS009X56MA	ANSATZBOLZEN.32-18X.375D
8	BS094154E701MA	SUPPORT, SEAT
9	BS094156ZMA	ROD - PIVOT
10	BS1001648E701MA	BRACKET - SEAT PIVOT
11	BS001X45MA	BOLT-HEX.31-18X0.62 Z
12	BS015X89MA	MUTTER 25-20FLANSCHARRETIERUNG
13	BS009X55MA	BOLT-SHD.25-20X.312D
14	BS094155ZMA	TOPFSCHEIBE
15	BS164X31MA	DRUCKFEDER
16	BS26X249MA	SCREW-.312-18X.75
17	BS26X263MA	SCREW.25-20 S-T
18	BS164X30MA	DRUCKFEDER
19	BS094150E020
20	BS015X88MA	NUT,CENTERLOCK Z .3
21	BS094194E701MA	LIFT DETENT PLATE LG
22	BS009X47MA	BOLT-SHD.
23	BS094109
24	BS094108MA	MATTE RECHTS
25	BS093215E701MA	HOOD
26	BS092542MA	GRILL MONTAGE-3530
27	BS26X239MA	SCREW 1/4 ABX.75
28	BS092539MA	LENS-RIGHT-3530 SE
29	BS092541MA	BRACE-3530
30	BS0031X4MA	PIN, HAIR .56D - .09
31	BS26X250MA	SCREW-TAPPING 10-16
32	BS26X238MA	SCREW 1/4'' AB X.50
33	BS094219MA	BEARING UPPER 3520
34	BS776190MA	DASH LT 3520 (09422
35	BS094221E701MA	BEF.PLATTE VERKLEIDUNG
36	BS093007E701MA	PANEL-SIDE ACCESS
37	BS095082E700
38	BS1001270E701MA	BRKT - REAR HANGER
39	BS690544E700MA	GRILLE SUPPORT LH
40	BS094007E701MA	AXLE, HANGER
41	BS690543E717MA	GRILLE SUPPORT RH
42	BS093137ZMA	HAUBENZAPFENSTANGE PIVOT
43	BS1001268E701MA	RAHMENHOLM RECHTS
44	BS1001269E701MA	RAIL-FRAME LH
45	BS690424MA	BATTERY CONTAINER
46	BS1001002E700
47	BS690218E700MA	PLATTE-HINTEN
48	BS094186E700
49	BS095081E700
50	BS092540MA	LINSE-LINKS 3530 SE
51	BS094680MA	ABDECKUNG/FESTSTELLVORRICHT.,
52	BS015X81MA	NUT#10-24 MCLEANLOCK
53	BS26X277MA	SCREW-5/16-18X.50
--	BSF-020746L
