Murray 465609x24A - B&S/ 46" Lawn Tractor (2003) (Meijer) Mower Housing Suspension Ricambi

Name: GRIFF - .625 ID- SCHWARZ
Price: 8.10 EUR

GRIFF - .625 ID- SCHWARZ

Articolo numero:

BS092698MA

Posizione:

8.10 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

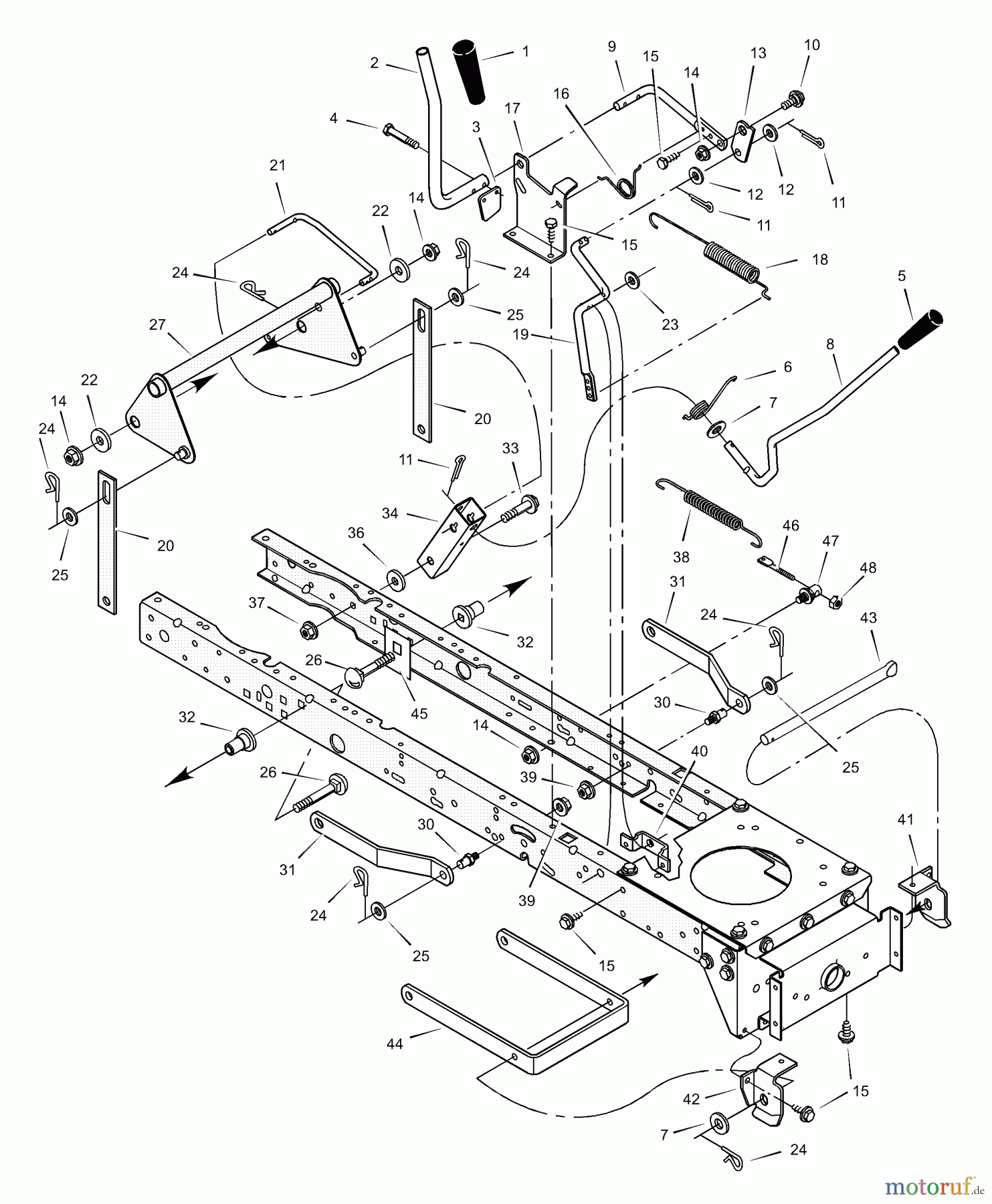

Posizione	Articolo numero	Descrizione
1	BS092698MA	GRIFF - .625 ID- SCHWARZ
2	BS094826ZMA	GRIFF PTO
3	BS094022ZMA	PADDLE-SWITCH
4	BS0025X3MA	SCHRAUBE-THD.FORM.HEX.
5	BS092697MA	GRIP - .50 ID - BLACK
6	BS166X40MA	TORSIONSFEDER LINKS
7	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
8	BS690533MA	HANDLE, LIFT
9	BS094017ZMA	LEVER - PTO
10	BS009X39MA	ANSATZBOLZEN .38-16 X .
11	BS030X20MA	PIN-COTTER.09D-.750L
12	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
13	BS094004ZMA	PTO LINK
14	BS015X84MA	MUTTER, CENTERLOCK .38-
15	BS26X249MA	SCREW-.312-18X.75
16	BS166X39MA	TORSIONSFEDER PTO
17	BS094018E701MA	HALTERUNG-PTO
18	BS165X120MA	ZUGFEDER
19	BS690394E701MA	CRANK, PTO
20	BS690212E701MA	LIFT LINK (LT)
21	BS690122E701MA	LIFT HANDLE LINK
22	BS17X168ZMA	UNTERLEGSCHEIBE.39-1.2-.11 FL
23	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
24	BS0031X4MA	PIN, HAIR .56D - .09
25	BS017X91MA	WASHER,FLAT .54.81
26	BS002X85MA	BOLT-CRG.37-16X2.25
27	BS1001111E700MA
30	BS094067MA	ANSATZGEWINDESTIFT
31	BS094055E701MA	HALTER HECKAUFHANGUNG/HECKFEDE
32	BS690151MA	SPACER - LIFTER
33	BS009X53MA	BOLT,SHD .38-16X.565
34	BS094015E701MA	BRACKET-PIVOT
36	BS17X191MA	UNTERLEGSCHEIBE - VORNUT
37	BS015X84MA	MUTTER, CENTERLOCK .38-
38	BS165X133MA	SPRING-EXTENSION (LIF
39	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
40	BS094005E701MA	KULISSENBREMSE
41	BS094027E701MA	HANGER - DECK LH
42	BS094026E701MA	HANGER - DECK RH
43	BS094158ZMA	ROD - HANGAR
44	BS690539E701MA	BRKT-FRT SUSPENSION
45	BS1001098E700
46	BS094042ZMA	FEDERBOLZEN MTG.
47	BS690182MA	STUD - SWIVEL
48	BS015X88MA	NUT,CENTERLOCK Z .3
