Spareparts

BRACKET-BELL CRANK

Articolo numero:

BS094601E701MA

Posizione:

non più disponibile

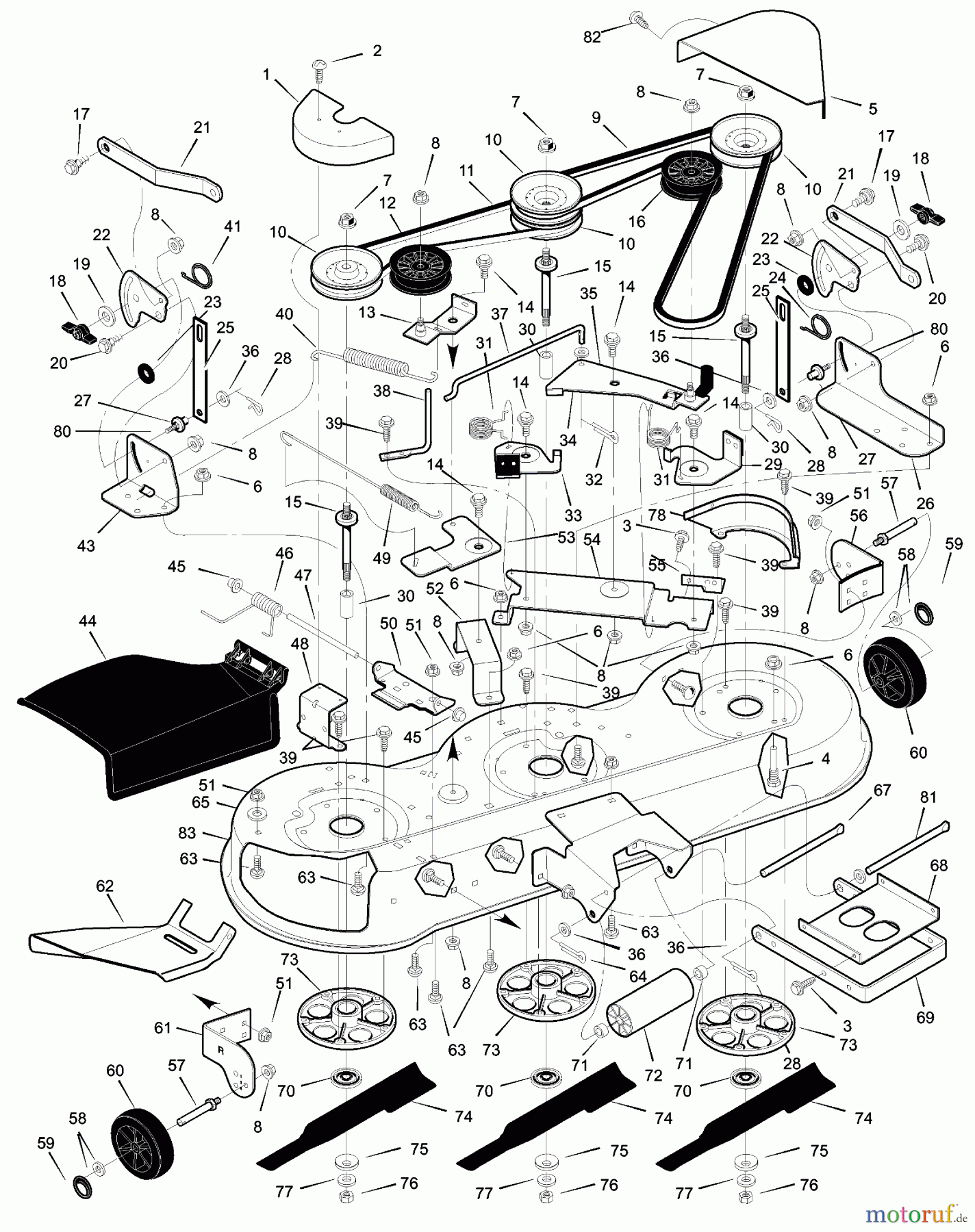

Murray Rasen- und Gartentraktoren 46576x92A - B&S/Murray 46

Posizione	Articolo numero	Descrizione
1	BS094607E701MA	COVER - PULLEY RIGHT
2	BS26X250MA	SCREW-TAPPING 10-16
3	BS26X249MA	SCREW-.312-18X.75
4	BS091754MA	SCREW,GUIDE 5/16-18 Z
5	BS094605E701MA	COVER - PULLEY (TOP)
6	BS015X79MA	NUT.31-18 FLANGELOCK
7	BS15X140MA	MUTTER.56-18 RIEMENSCHEIBE ZIN
8	BS015X84MA	MUTTER, CENTERLOCK .38-
9	BS037X89MA	BELT PRIMARY 46
10	BS094592MA
11	BS037X66MA	BELT-SECONDARY 47.10
12	BS423238MA	IDLER PULLEY
13	BS94639	SCHRAUBE
14	BS009X39MA	ANSATZBOLZEN .38-16 X .
15	BS774091MA	MANDREL SPLIN 7.03 Q1
16	BS774089MA	PULLEY BS 4'' PLASTIC
17	BS009X52MA	ANSATZBOLZEN .38-16X.600D
18	BS094068MA	KNOB
19	BS017X45MA	WASHER,FLAT .33 1. 16
20	BS009X51MA	BOLT-SHD.38-16X.499D
21	BS094055E701MA	HALTER HECKAUFHANGUNG/HECKFEDE
22	BS094128E701MA	SUSPENSION PLATE
23	BS094137MA	FRICTION PAD
24	BS166X43MA	TORSIONSFEDER LINKS
25	BS690212E701MA	LIFT LINK (LT)
26	BS094600E700MA	HEBEHALTER LINKS
27	BS776060MA	NUT, 3/8-16
28	BS0031X4MA	PIN, HAIR .56D - .09
29	BS094640E701MA	BREMSE ASSY LINKS
30	BS094130MA	SPACER
31	BS166X41MA	SPRING TORSION BRKE
32	BS030X20MA	PIN-COTTER.09D-.750L
33	BS94641E700
34	BS017X47MA	UNTERLEGSCHEIBE .34 .62
35	BS690579E701MA	IDLER ARM ASSY 46
36	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
37	BS094606ZMA	VERBINDUNGSSTANGE UMLENKHEBEL
38	BS092116ZMA	ROD-BELT GUIDE
39	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
40	BS165X79MA	SPRING-EXTENSION
41	BS166X42MA	TORSIONSFEDER RECHTS
42	BS094053E701MA	HEBE-/STOSSELVERBINDUNG, RECHT
43	BS	Eingangswelle UE 600
44	BS092100MA	DEFLECTOR-CHUTE-46
45	BS028X23MA	PUSH CAP.375
46	BS166X34MA	TORSIONSFEDER
47	BS092159ZMA	DEFLEKTORSTANGE
48	BS092140E701MA	DECKELHALTERUNG LINKS
49	BS165X120MA	ZUGFEDER
50	BS092104E701MA	BRKT - HINGE
51	BS015X88MA	NUT,CENTERLOCK Z .3
52	BS094601E701MA	BRACKET-BELL CRANK
53	BS094603E701MA	KIPPHEBEL; STEUERHEBEL 46
54	BS094596E700
55	BS094602E701MA	HALTERUNG - BREMSBLECH
56	BS094919E701MA	BRACKET, L GAGE WHEEL
57	BS094025MA	BOLZEN-RADSTELZE
58	BS017X91MA	WASHER,FLAT .54.81
59	BS031X11MA	HAARSTIFT
60	BS092683MA	WHEEL, GUAGE
61	BS094918E701MA	HALTERUNG, RECHTS RADSTELZE
62	BS092103E701MA	DEFLEKTOR, SCHACHT
63	BS002X53MA	BOLT,CRG .31-18 X 0.
64	BS030X49MA	PIN-COTTER.13D-1.25L
65	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
66	BS094997SEMA	BRKT KIT FRONT DK 46
67	BS094996MA	STANGE - DECKFEDERUNG/AUFHANG
68	BS094604E701MA	STIFFENER
69	BS690539E701MA	BRKT-FRT SUSPENSION
70	BS092466MA	ADAPTER- MESSER
71	BS091925MA	SPACER-BEARING-P/M
72	BS092137MA	ROLLER
73	BS492574MA	JACKSHAFT HSNG
74	BS56631E700
75	BS17X166MA	WASHER.62-1.7 11G - B
76	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
77	BS17X165MA	UNTERLEGSCHEIBE.62-1.0-.18 FL
78	BS94643E700
80	BS019X35MA	WASHER.43-0.74 X.04 S
81	BS094996MA	STANGE - DECKFEDERUNG/AUFHANG
82	BS26X277MA	SCREW-5/16-18X.50
83	BS094936E701MA	HOUSING BLADE ASSY 46
