Murray 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears) Main Case, LH Fender & Yoke Lift Group Ricambi

Name: KOTFLUGEL, HINTEN
Price: 41.28 EUR

KOTFLUGEL, HINTEN

Articolo numero:

BS7034299YP

Posizione:

41.28 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

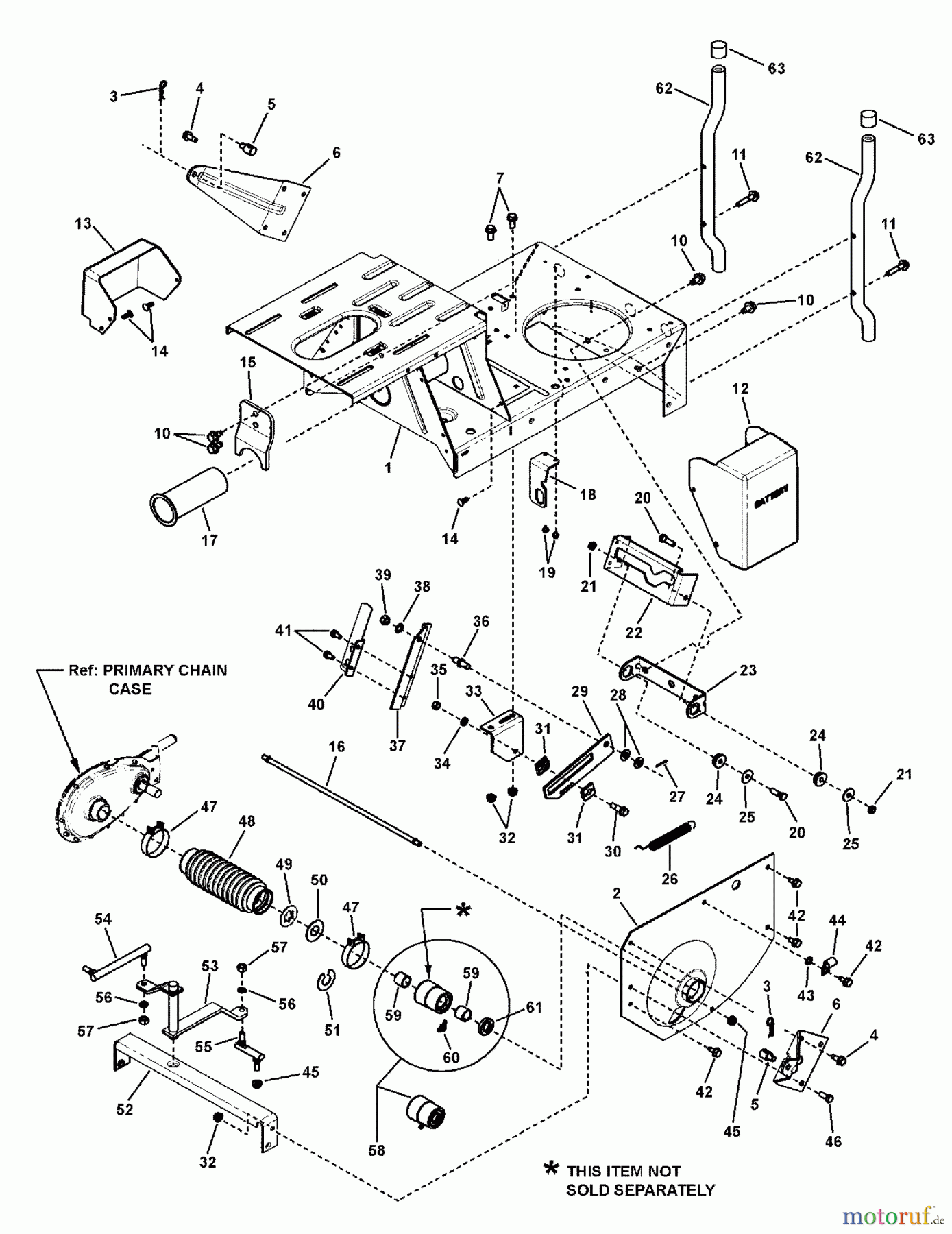

Murray Reitermäher 107.280341 (7800669A) - Craftsman 28

Posizione	Articolo numero	Descrizione
1	BS7053697YP	STANDARDHAUPTGEH.
2	BS7037285YP	FENDER, LH
3	BS7091503SM	HAIR PIN, 3/32X1-1/2
4	BS7090793YP	SCHRAUBE, 5/16-18X3/4
5	BS7028200SM	SICHERUNGSSTIFT
6	BS7034299YP	KOTFLUGEL, HINTEN
7	BS7090595SM	HFLB, 5/16C X3/4 BZ
10	BS7091198SM	HWST, 3/8CX5/8BP
11	BS7091506YP	HWST, 5/16C X1-1/2 YZ
12	BS7028990YP	COVER, BATTERY
13	BS7073268YP	ABDECKUNG, MAGNETSCH.
14	BS7091272YP	FASTENER, RATCHET
15	BS7074210YP	HALTER, TREIBRIEMENEINST.
16	BS7011070YP	TUGANKER
17	BS7074650YP	BUSHING, PIVOT
18	BS7073735YP	HALTER, SCHALTER
19	BS7090981YP	HWST, #10F X1/4 BZ
20	BS7090238SM	HHCS, 5/16F X1 GR5 BZ
21	BS7011201YP
22	BS7046162YP	YOKE
23	BS7033291YP	KLEMMSCHELLE, TRAVERSE
24	BS7011048YP	LAGER
25	BS7011763SM	WASHER, FENDER, 5/16
26	BS7013885YP	FEDER, KUPPL./BREMSE
27	BS7090037YP
28	BS7090122YP	WASHER, 3/8" FLAT SAE
29	BS7047190YP	SLIDE, DRIVE SUPPORT
30	BS7014664SM	BOLT, SHLDR, 5/16C X1
31	BS7014663YP	GLEITSTUCK
32	BS7090585MA	NUT .31-18 FLANGELOCK
33	BS7047189YP	BRKT, DRIVE SUPPORT
34	BS7090187SM	SLW, .318X.583X.078 Z
35	BS7091511SM	MUTTER, 5/16C GR5 YZ
36	BS7015464YP	BOLZEN
37	BS7073733YP	AUSLEGERGABEL
38	BS7090390SM	SCHEIBE 3/8 BZ
39	BS7091630SM	SECHSKANTMUTTER
40	BS7600141YP	KIT, LEAF SPRING
41	BS7090539YP	SCHRAUBE, 1/4-20X1/2
42	BS7090361YP	HWST, 5/16C X5/8 BP
43	BS7090391SM	ITLW, 5/16
44	BS7012652YP	CLIP, KABEL
45	BS7010969YP	MUTTER, 5/16F ZP
46	BS7090206YP
47	BS7012332YP	KLEMME, 2
48	BS7075115YP	BOOT, AXLE
49	BS7011072YP	SICHERUNGSSCHEIBE
50	BS7011071YP	SICHERUNGSSCHEIBE
51	BS7012271YP
52	BS7033799YP	BRACE, CROSS
53	BS7041384YP	SHIFT ARM
54	BS7023676YP	SCHALTGEST. LANG
55	BS7011018YP	SCHALTHEBEL, KURZ
56	BS7091315SM	SLW, .32X.58X.08 YZ
57	BS7091297SM	MUTTER, 5/16F GR5 YZ
58	BS7052827YP	3/4"ID BEARING ASMY
59	BS7074182YP	LAGER, DX
60	BS7013324YP	STIFTSCHRAUBE, 3/16
61	BS7074500YP	SEAL, DUST / GREASE
62	BS7030798ZYP	STO?FANGER, HINTEN
63	BS7010153YP	STO?F.KAPPE
