Murray 309007x8B - Select 30" Mid-Engine Rider (2005) (Home Depot) Motion Drive Ricambi

Name: RAHMENFUHRUNG MER HYD
Price: 262.50 EUR

RAHMENFUHRUNG MER HYD

Articolo numero:

BS1401371E701MA

Posizione:

262.50 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

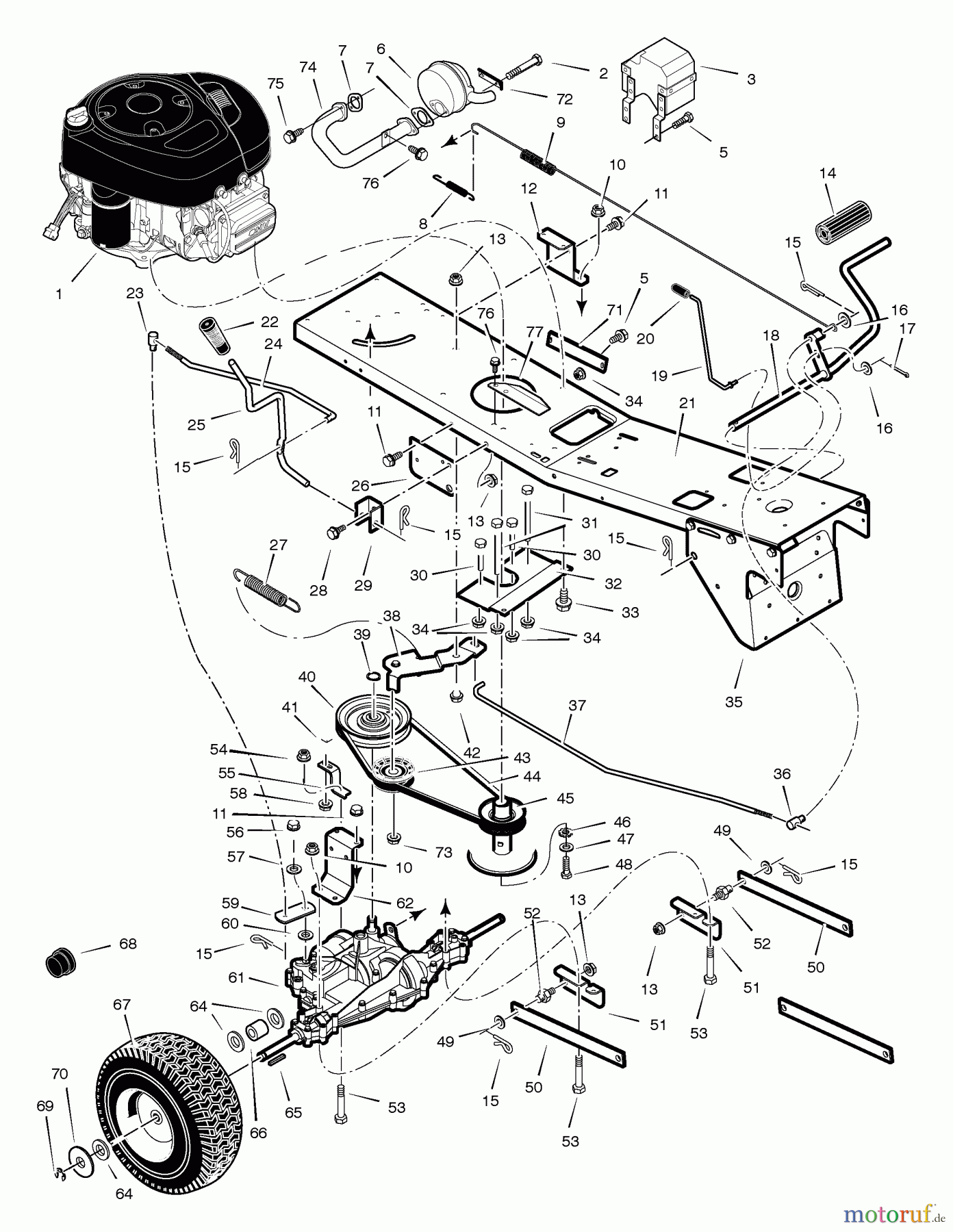

Murray Reitermäher 309007x8B - Murray Select 30

Posizione	Articolo numero	Descrizione
1	BS	Eingangswelle UE 600
2	BS01X134MA	BOLT-HEX.31-18X4.12 O
3	BS1401375MA	HITZESCHILD
5	BS26X267MA	SCREW 5/16-18
6	BS1401358MA	MUFFLER
7	BS692236	AUSPUFFDICHTUNG
8	BS165X75MA	SPRING,EXTENSION
9	BS165X148MA	FEDERHEBEL
10	BS015X88MA	NUT,CENTERLOCK Z .3
11	BS26X249MA	SCREW-.312-18X.75
12	BS1401268
13	BS015X84MA	MUTTER, CENTERLOCK .38-
14	BS021544MA	CLUTCH & BRAKE PEDAL
15	BS030X20MA	PIN-COTTER.09D-.750L
16	BS017X53MA	WASHER.41.82 16G FLT
17	BS030X20MA	PIN-COTTER.09D-.750L
18	BS1401127E701MA	WS ASM. PEDAL C/B
19	BS1401112MA	GRIFF, FESTSTELLBREMSE
20	BS091079MA	GRIP-BLACK .207 ID X
21	BS1401371E701MA	RAHMENFUHRUNG MER HYD
22	BS092697MA	GRIP - .50 ID - BLACK
23	BS1401148ZMA	EINSTELLMUTTER
24	BS1401122MA	LINK, DRIVE
25	BS1401111MA	SCHALTHEBEL
26	BS1401032
27	BS165X147MA	SPRING, EXT
28	BS009X39MA	ANSATZBOLZEN .38-16 X .
29	BS1401043
30	BS1401104MA	FUHRUNG ANTRIEBSRIEMEN KURZ
31	BS1401105MA	GUIDE, BELT LONG
32	BS1401057
33	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
34	BS015X79MA	NUT.31-18 FLANGELOCK
35	BS1401059
36	BS094815ZMA	NUT-ADJUSTING
37	BS1401078MA	KUPPLUNGSSTANGE
38	BS1401128
39	BS0011X7MA	SPRENGRING/SEEGERRING.625D.035
40	BS1401077MA	RIEMENSCHEIBE, 5.44 DIA. FLA
41	BS002X53MA	BOLT,CRG .31-18 X 0.
42	BS009X39MA	ANSATZBOLZEN .38-16 X .
43	BS1401252MA	UMLENKROLLE - B/D
44	BS37X110MA	BELT, 4L MOTION DRIVE
45	BS1401066MA	PULLEY,STACK SPLIT ST
46	BS019X35MA	WASHER.43-0.74 X.04 S
47	BS17X170MA	WASHER.46.97.25 FLAT
48	BS01X140MA	SECHSKANTBOLZEN.43-20X1.50 Z
49	BS17X120MA	UNTERLEGSCHEIBE.51-1.5 16G FL
50	BS1401031E701MA	ARM HINTEN; RUCKARM
51	BS1401039
52	BS094067MA	ANSATZGEWINDESTIFT
53	BS01X155MA	BOLT-HEX.31-18X2.50 P
54	BS015X88MA	NUT,CENTERLOCK Z .3
55	BS1401051E701MA	KONSOLE,DREHMOMENT REACTO
56	BS06X105MA	CAP SCREW 1/4-28 (AR
57	BS017X38MA	UNTERLEGSCHEIBE.26.75 16G FLT
58	BS015X43MA	NUT .31-18 ST OVERLOC
59	BS1401351ZMA	GABELVERSTELLUNG
60	BS17X148MA	UNTERLEGSCHEIBE.38 SQ 1. 16G F
61	BS	Eingangswelle UE 600
62	BS1401042
64	BS17X160MA	WASHER.76-1.2 16G FL
65	BS056534MA	VIERKANTSCHLUSSEL
66	BS1401103MA	SPACER, TRANSAXLE
67	BS1401120MA	HINTERRAD 15"
68	BS094618MA	HUB CAP
69	BS0011X3MA	RING,E .750D .050T
70	BS17X195MA	UNTERLEGSCHEIBE
71	BS1401260E701MA	VERSTARKUNGSBLECH
72	BS092378MA	SCHRAUBENVERSCHLUSS 223016
73	BS015X98MA	MUTTER.38-16 FLANSCHARRETIERUN
74	BS1401357MA	ABGASROHR
75	BS06X103MA	5/16-18 SOCKET HEAD
76	BS26X263MA	SCREW.25-20 S-T
77	BS1401396MA	ABSCHIRMUNG,KABELBAUM
