Murray 309304x8D - Scotts 30" Mid-Engine Rider (2002) (Home Depot) Chassis & Hood Ricambi

Name: SCHLAUCHSCHELLE - GELB
Price: 6.30 EUR

SCHLAUCHSCHELLE - GELB

Articolo numero:

BS095197MA

Posizione:

6.30 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

in magazzino

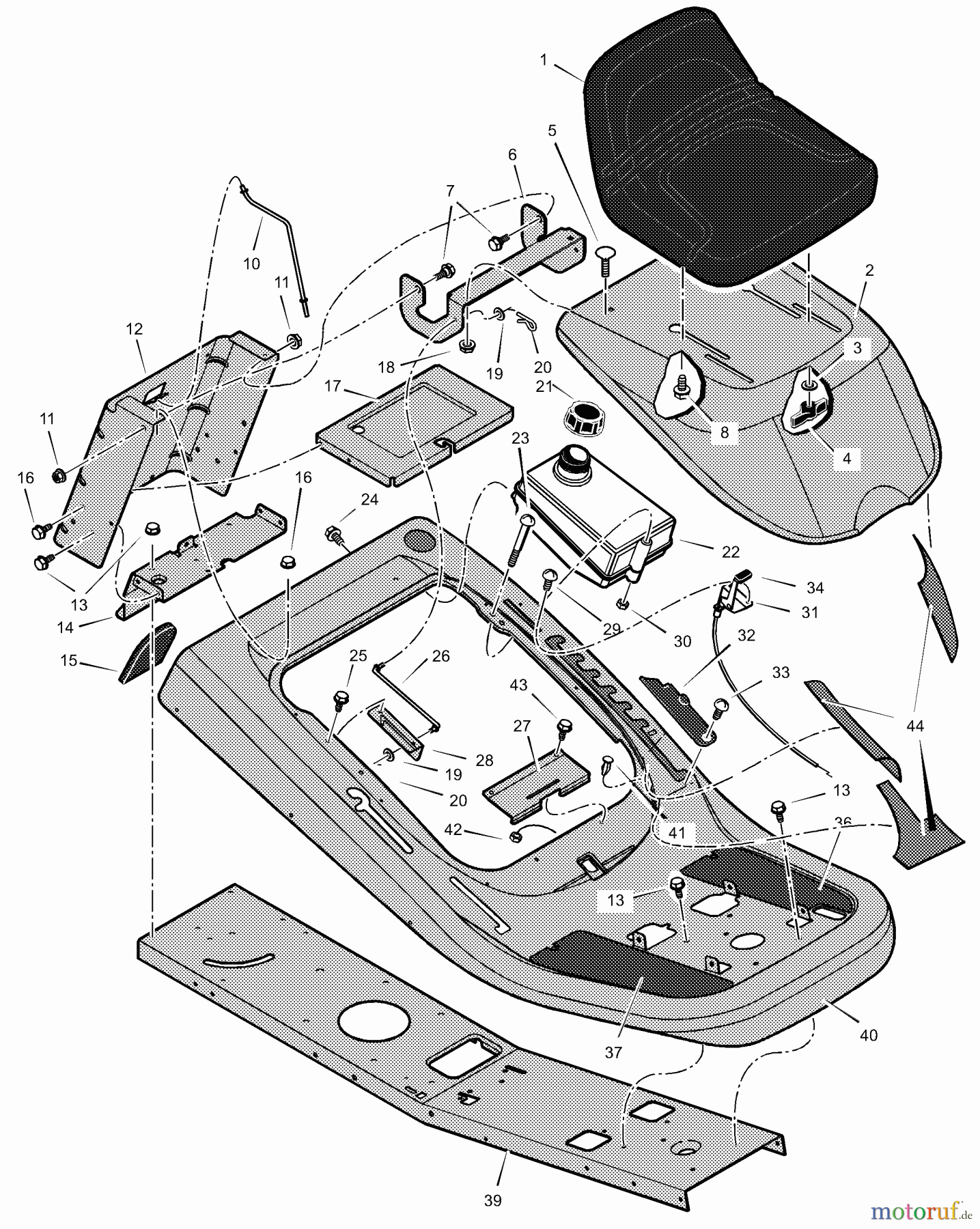

Posizione	Articolo numero	Descrizione
1	BS690566MA	SEAT MID-BACK BLACK
2	BS1401027E701MA	HAUBE
3	BS017X47MA	UNTERLEGSCHEIBE .34 .62
4	BS1001054MA	BOLT - WING
5	BS002X53MA	BOLT,CRG .31-18 X 0.
6	BS1401378E701MA	KONSOLE, GELENK/SCHARNIER
7	BS009X29MA	BOLT-SHD.38-16X.499D
8	BS009X56MA	ANSATZBOLZEN.32-18X.375D
10	BS1401113MA	ROD, BATTERY
11	BS015X84MA	MUTTER, CENTERLOCK .38-
12	BS1401025E701MA	ABDECKBLECH HINTEN
13	BS26X249MA	SCREW-.312-18X.75
14	BS1401050E701MA	PLATTE, KUPPLUNG
15	BS1401086MA	ABDECKUNG, KURZ SCHWARZ
16	BS26X263MA	SCREW.25-20 S-T
17	BS1401076E701MA	TRAY, BATTERY
18	BS015X79MA	NUT.31-18 FLANGELOCK
19	BS017X37MA	WASHER,FLAT .26.62
20	BS0031X6MA	PIN, HAIR .38D - .0
21	BS095197MA	SCHLAUCHSCHELLE - GELB
22	BS7601045MA	FUEL TANK ASSY MER
23	BS06X111MA	SCHRAUBE ,1/4-20X.5TRU
24	BS26X253MA	SCREW-THREAD FORMING
25	BS26X263MA	SCREW.25-20 S-T
26	BS1401110MA	ROD, PROP
27	BS1401041MA	SPRING, SEAT DECK
28	BS1401297E701MA	STANGENHALTERUNG - PROPELLER
29	BS26X201MA	SCREW Z/BL CHROMATE
30	BS15X116MA	MUTTER.25-20 HEX NYLOCK
31	BS1401169MA	GASHEBEL
32	BS1401084MA	HEBEDECKEL ARRETIERUNG SCHWARZ
33	BS009X47MA	BOLT-SHD.
34	BS	Eingangswelle UE 600
36	BS1401145MA	FLOORMAT, LH SANDPAPE
37	BS1401144MA	BODENMATTE, RECHTS RAU
39	BS1401256E701MA	GRUNDRAHMEN
40	BS1401026E700
41	BS094744MA	BUMPER
42	BS15X116MA	MUTTER.25-20 HEX NYLOCK
43	BS0025X2MA	SCREW-TRI.25-20X .50
44	BS7601036MA	HEAT SHIELD ASSY
--	BSF-020600L
