Murray 309311x92A - B&S/ 30" Mid-Engine Rider (MER) (2003) (Walmart) Motion Drive Ricambi

Name: BRACKET, LH - TRANSAX
Price: 50.51 EUR

BRACKET, LH - TRANSAX

Articolo numero:

BS1401268E701MA

Posizione:

50.51 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

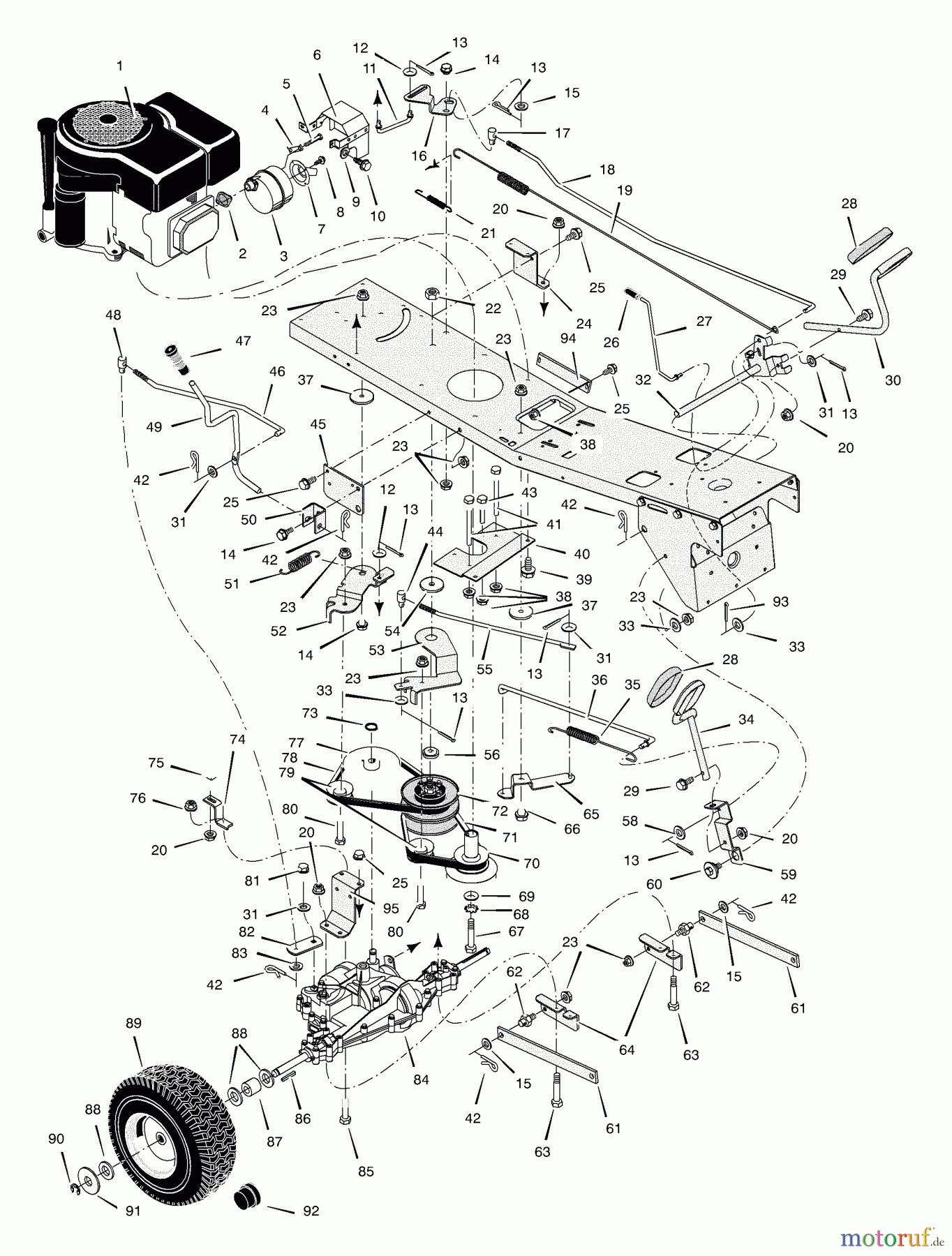

Murray Reitermäher 309311x92A - B&S/Murray 30

Posizione	Articolo numero	Descrizione
1	BS	Eingangswelle UE 600
2	BS692236	AUSPUFFDICHTUNG
3	BS091271SEMA	SCHALLDARMPFER 12HP B&S
4	BS092378MA	SCHRAUBENVERSCHLUSS 223016
5	BS01X134MA	BOLT-HEX.31-18X4.12 O
6	BS1401207
7	BS1401204MA	ABGASROHR B & S KOMPL.
8	BS26X208MA	GEWINDESCHRAUBE-.375-B
9	BS018X32MA	WASHER.25.48X.07 SPLI
10	BS0025X2MA	SCREW-TRI.25-20X .50
11	BS1401170MA	HANDGRIFF HEBEL
12	BS017X45MA	WASHER,FLAT .33 1. 16
13	BS030X20MA	PIN-COTTER.09D-.750L
14	BS009X39MA	ANSATZBOLZEN .38-16 X .
15	BS17X102MA	UNTERLEGSCHEIBE-MAHER
16	BS1401166 Z
17	BS092132ZMA	EINSTELLMUTTER
18	BS1401165MA	KUPPLUNGSGESTANGE VARIATOR
19	BS165X148MA	FEDERHEBEL
20	BS015X88MA	NUT,CENTERLOCK Z .3
21	BS165X75MA	SPRING,EXTENSION
22	BS15X137
23	BS015X84MA	MUTTER, CENTERLOCK .38-
24	BS1401042E701MA	HALTER, STUFENLOSES GETRIEBE,
25	BS26X249MA	SCREW-.312-18X.75
26	BS091079MA	GRIP-BLACK .207 ID X
27	BS1401112MA	GRIFF, FESTSTELLBREMSE
28	BS1401139
29	BS01X139MA	BOLT-HEX.31-18X1.25 Z
30	BS1401179E701
31	BS017X38MA	UNTERLEGSCHEIBE.26.75 16G FLT
32	BS1401180E701MA	C/B ZAPFEN PIVOT STANGE ASSY
33	BS017X53MA	WASHER.41.82 16G FLT
34	BS1401181E701MA	PEDALGESTANGE
35	BS165X158MA	SPRING, EXT. RETURN
36	BS1401142MA	GESTAENGE
37	BS17X174ZMA	WASHER.40-2.2-.11 FL
38	BS015X79MA	NUT.31-18 FLANGELOCK
39	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
40	BS1401057E701MA	BLECH, RIEMENFUHRUNG
41	BS1401105MA	GUIDE, BELT LONG
42	BS0031X4MA	PIN, HAIR .56D - .09
43	BS1401104MA	FUHRUNG ANTRIEBSRIEMEN KURZ
44	BS021920ZMA	JUSTIERMUTTER
45	BS1401032E701MA	BRACKET, LIFT PIVOT
46	BS1401122MA	LINK, DRIVE
47	BS092697MA	GRIP - .50 ID - BLACK
48	BS1401148ZMA	EINSTELLMUTTER
49	BS1401111MA	SCHALTHEBEL
50	BS1401043E701MA	HALTER ABDECKUNG
51	BS165X156MA	SPRING, DRIVE EXT VAR
52	BS1401131 Z
53	BS1401132ZMA	UMLENKARM KUPPLUNG
54	BS17X210HTMA	DICHTSCHEIBE
55	BS1401136MA	VERBINDUNG -ANTRIEB
56	BS1401124MA	DISTANZSTUCK,SCHULTER
58	BS017X53MA	WASHER.41.82 16G FLT
59	BS1401254ZMA	ARM - PEDAL
60	BS009X69MA	ANSATZ-/SCHULTERBOLZEN
61	BS1401031E701MA	ARM HINTEN; RUCKARM
62	BS094067MA	ANSATZGEWINDESTIFT
63	BS01X155MA	BOLT-HEX.31-18X2.50 P
64	BS1401039E701MA	HALTERUNG/KONSOLE, HINTEN HANG
65	BS1401183E701
66	BS009X15MA	BOLT,SHD .38-16X .499
67	BS01X140MA	SECHSKANTBOLZEN.43-20X1.50 Z
68	BS019X35MA	WASHER.43-0.74 X.04 S
69	BS17X170MA	WASHER.46.97.25 FLAT
70	BS1401158MA	STAPELRIEMENSCHEIBE
71	BS37X114MA	BELT, PRIMARY DRIVE
72	BS1001133MA	VARIATOR ASSY
73	BS0011X7MA	SPRENGRING/SEEGERRING.625D.035
74	BS1401051E701MA	KONSOLE,DREHMOMENT REACTO
75	BS002X53MA	BOLT,CRG .31-18 X 0.
76	BS015X43MA	NUT .31-18 ST OVERLOC
77	BS1401157MA	RIEMENSCHEIBE, HINTERACHSE
78	BS37X115MA	BELT, SECONDARY
79	BS1401156MA	PULLEY, IDLER
80	BS01X111MA	BOLT-HEX.37-16X1.50 Z
81	BS06X105MA	CAP SCREW 1/4-28 (AR
82	BS1401093ZMA	BUGEL
83	BS17X148MA	UNTERLEGSCHEIBE.38 SQ 1. 16G F
84	BS915-033
85	BS01X120MA	BOLT-HEX.31-18X2.00 Z
86	BS056534MA	VIERKANTSCHLUSSEL
87	BS1401103MA	SPACER, TRANSAXLE
88	BS17X160MA	WASHER.76-1.2 16G FL
89	BS1401120MA	HINTERRAD 15"
90	BS0011X3MA	RING,E .750D .050T
91	BS17X195MA	UNTERLEGSCHEIBE
92	BS094618MA	HUB CAP
93	BS030X35MA	SPLINT.13D-.880L
94	BS1401260E701MA	VERSTARKUNGSBLECH
95	BS1401268E701MA	BRACKET, LH - TRANSAX
