Murray 309311x92A - B&S/ 30" Rear Engine Rider (2003) (Walmart) Mower Housing Ricambi

Name: DEFLEKTOR, SCHACHT SCHWARZ
Price: 161.39 EUR

DEFLEKTOR, SCHACHT SCHWARZ

Articolo numero:

BS1401081MA

Posizione:

161.39 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

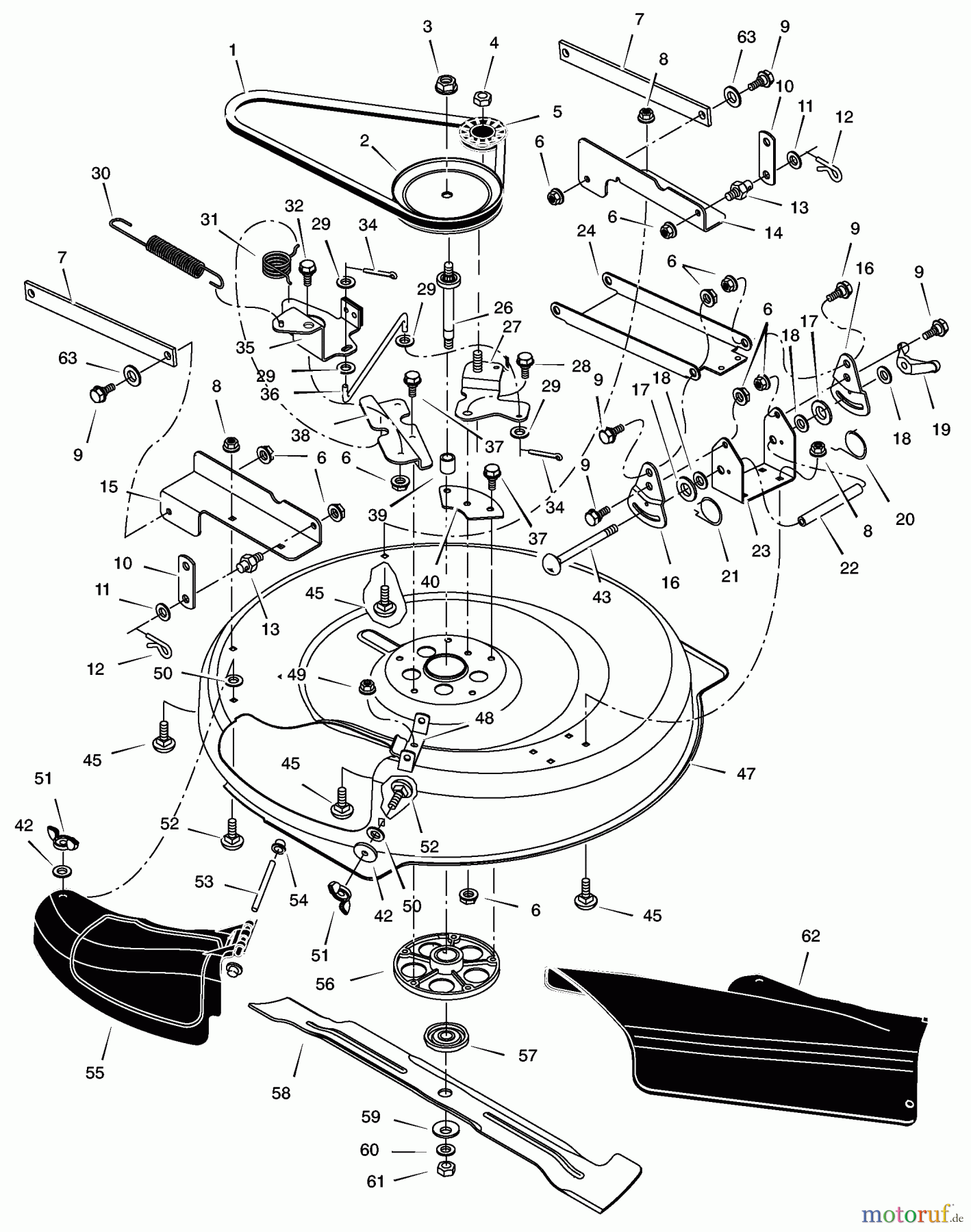

Murray Reitermäher 309311x92A - B&S/Murray 30

Posizione	Articolo numero	Descrizione
1	BS37X111MA	RIEMEN,30" MESSER ANTRIEB
2	BS1401092MA	PULLEY, 30'' INPUT
3	BS15X140MA	MUTTER.56-18 RIEMENSCHEIBE ZIN
4	BS015X98MA	MUTTER.38-16 FLANSCHARRETIERUN
5	BS1401252MA	UMLENKROLLE - B/D
6	BS015X84MA	MUTTER, CENTERLOCK .38-
7	BS1401031E701MA	ARM HINTEN; RUCKARM
8	BS015X79MA	NUT.31-18 FLANGELOCK
9	BS009X58MA	ANSATZBOLZEN
10	BS1401033E701MA	KUISSE HEBEVORRICHTUNG
11	BS17X102MA	UNTERLEGSCHEIBE-MAHER
12	BS0031X4MA	PIN, HAIR .56D - .09
13	BS094067MA	ANSATZGEWINDESTIFT
14	BS1401047E701MA	HALTER , HINTEN LINKE HALFTE
15	BS1401296E701MA	BRKT, DECK LIFT, RR
16	BS1401038E701MA	ABDECKBLECH/ EINGEPASST
17	BS094137MA	FRICTION PAD
18	BS017X45MA	WASHER,FLAT .33 1. 16
19	BS095004MA	WINGNUT
20	BS166X43MA	TORSIONSFEDER LINKS
21	BS166X42MA	TORSIONSFEDER RECHTS
22	BS1401095MA	ROHR DISTANZRING
23	BS1401037E701MA	HALTER AUFBAU
24	BS1401040E701MA	HANGER, VORNE
26	BS1401065MA	VERZAHNTE WELLE; KEILWELLE
27	BS1401258E701MA	ASSY - LENKZWISCHENHEBEL; UMLE
28	BS009X39MA	ANSATZBOLZEN .38-16 X .
29	BS017X47MA	UNTERLEGSCHEIBE .34 .62
30	BS165X157MA	ZUGFEDER PTO
31	BS166X46MA	TORSIONSFEDER
32	BS009X42MA	BOLT,SHD .38-16X.600D
34	BS030X20MA	PIN-COTTER.09D-.750L
35	BS1401185E701MA	SP ASM, BREMSARM
36	BS1401119MA	LINK, IDLER ARM Z
37	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
38	BS1401052E701MA	KONSOLE, BREMSFASSUNG
39	BS1401094MA	SPACER, JACKSHAFT
40	BS1401259ZMA	PLATTE, SPANNROLLE MONTAGE
42	BS019X45MA	LOCKWASHER
43	BS002X94MA	BOLT, CARRIAGE
45	BS002X53MA	BOLT,CRG .31-18 X 0.
47	BS1401236E701MA	CUTTER HOUSING ASSY
48	BS1401106E701MA	SCHANIER
49	BS015X88MA	NUT,CENTERLOCK Z .3
50	BS028X76MA	SCHNELLMUTTER
51	BS014X86MA	NUT .31-18 WINGNUT
52	BS002X74MA	SCHLOSSSCHRAUBE.31-18X0.75
53	BS091767ZMA	STANGE DEFLEKTOR
54	BS028X23MA	PUSH CAP.375
55	BS1401080MA	COVER, MULCH BLACK
56	BS1401241MA	JACKSHAFT HOUSING ASSY
57	BS1001035MA	FLUGELADAPTER
58	BS1401079E701MA	SINGLE BLADE - 140107
59	BS17X166MA	WASHER.62-1.7 11G - B
60	BS17X165MA	UNTERLEGSCHEIBE.62-1.0-.18 FL
61	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
62	BS1401081MA	DEFLEKTOR, SCHACHT SCHWARZ
63	BS17X120MA	UNTERLEGSCHEIBE.51-1.5 16G FL
64	BS0025X7MA	MOTORBOLZEN 3/8 X 1.25
