20505x92B - B&S/Murray 20" Walk-Behind Mower (1997) (Walmart)

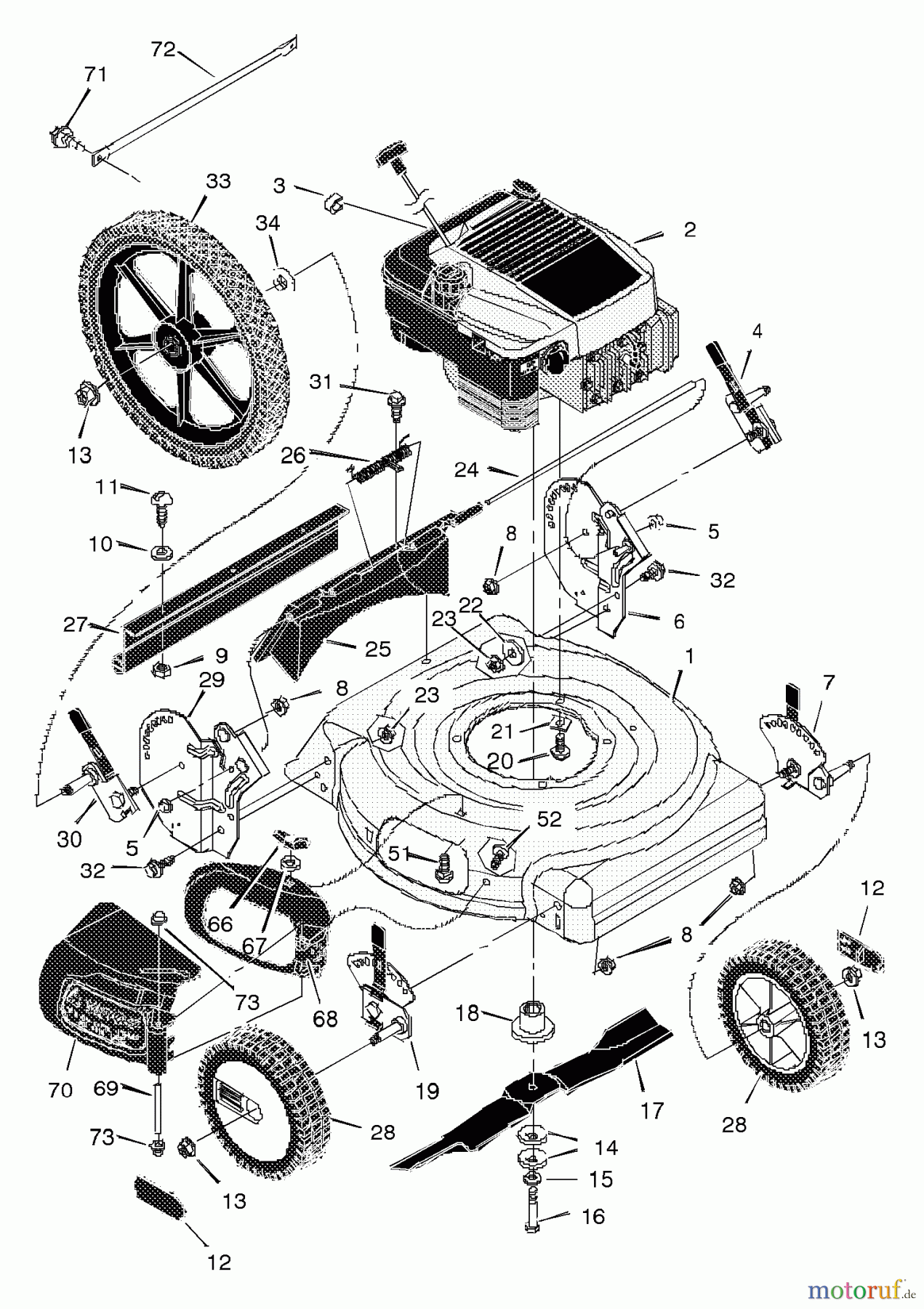

Mower Housing Assembly
Articolo numero:
BS671976
Posizione:
30
non più disponibile
Posizione
Articolo numero
Descrizione
1
BS776004
2
BS
Eingangswelle UE 600
3
BS042189MA
KLEMME-SEILSTOPP
4
BS671977
5
BS028X49MA
NUT- PUSH
6
BS672262
7
BS671973MA
HGT ADJ 20RB LH FRONT
8
BS015X68MA
MUTTER.38-16 FLANSCHARRETIERUN
9
BS15X102MA
MUTTER HEX 10-24 NYLON
10
BS017X38MA
UNTERLEGSCHEIBE.26.75 16G FLT
11
BS004X21MA
SCREW,MCH 10-24X.625
12
BS043615MA
HUBCAP 8X2 BAR GRAY
13
BS015X84MA
MUTTER, CENTERLOCK .38-
14
BS17X137MA
WASHER.39-2.2 11G FL
15
BS17X124MA
WASHER.40.81 16G FLT
16
BS01X142MA
BOLT-HEX.37-24X1.50 P
17
BS672056E701MA
EINZELKLINGE; EINZELBLATT
18
BS071056MA
ADAPTER-BLADE 7/8X1.0
19
BS671972MA
HOHENVERSTELLER 20RB RECHTS VO
20
BS0025X6MA
SCREW, TRI .38-16 X
21
BS671989
22
BS17X146MA
UNTERLEGSCHEIBE.34-1.2 11G FL
23
BS015X79MA
NUT.31-18 FLANGELOCK
24
BS215X17ZMA
STANGE .250 DIA X 15.359
25
BS671915
26
BS166X44MA
TORSIONSFEDER 20 RB
27
BS671969MA
DEFLECTOR-REAR HW
28
BS672060MA
8X1.75 WHL DIAMOND D-
29
BS672261
30
BS671976
31
BS26X259MA
SCHRAUBE-#10X.5 AB W/WAS
32
BS001X85MA
SECHSKANTBOLZEN.38-16X0.75 Z
33
BS672074MA
14X1.75 WHL DIA MAG D
34
BS017X67ZMA
WASHER-FLAT.53-1.0-.0
51
BS002X16MA
SCHLOSSSCHRAUBE .31-18X
52
BS26X221MA
SCREW-.25 X.50 SF TP
66
BS071495MA
WING NUT.31-18 NY-LOC
67
BS028X64MA
DRUCKBUGEL .312
68
BS672158MA
SCHACHT ASSY 20RB SCHWARZ
69
BS215X18ZMA
STANGE.250 DIA X 3.50
70
BS671927
71
BS26X263MA
SCREW.25-20 S-T
72
BS672233
73
BS028X42MA
DRUCKKAPPE.250 METALL
--
