Murray 20606x9B - B&S/ 20" Walk-Behind Mower (1998) (Montgomery Wards) Mower Housing Assembly Ricambi

Name: WING NUT.31-18 NY-LOC
Price: 5.72 EUR

WING NUT.31-18 NY-LOC

Articolo numero:

BS071495MA

Posizione:

5.72 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

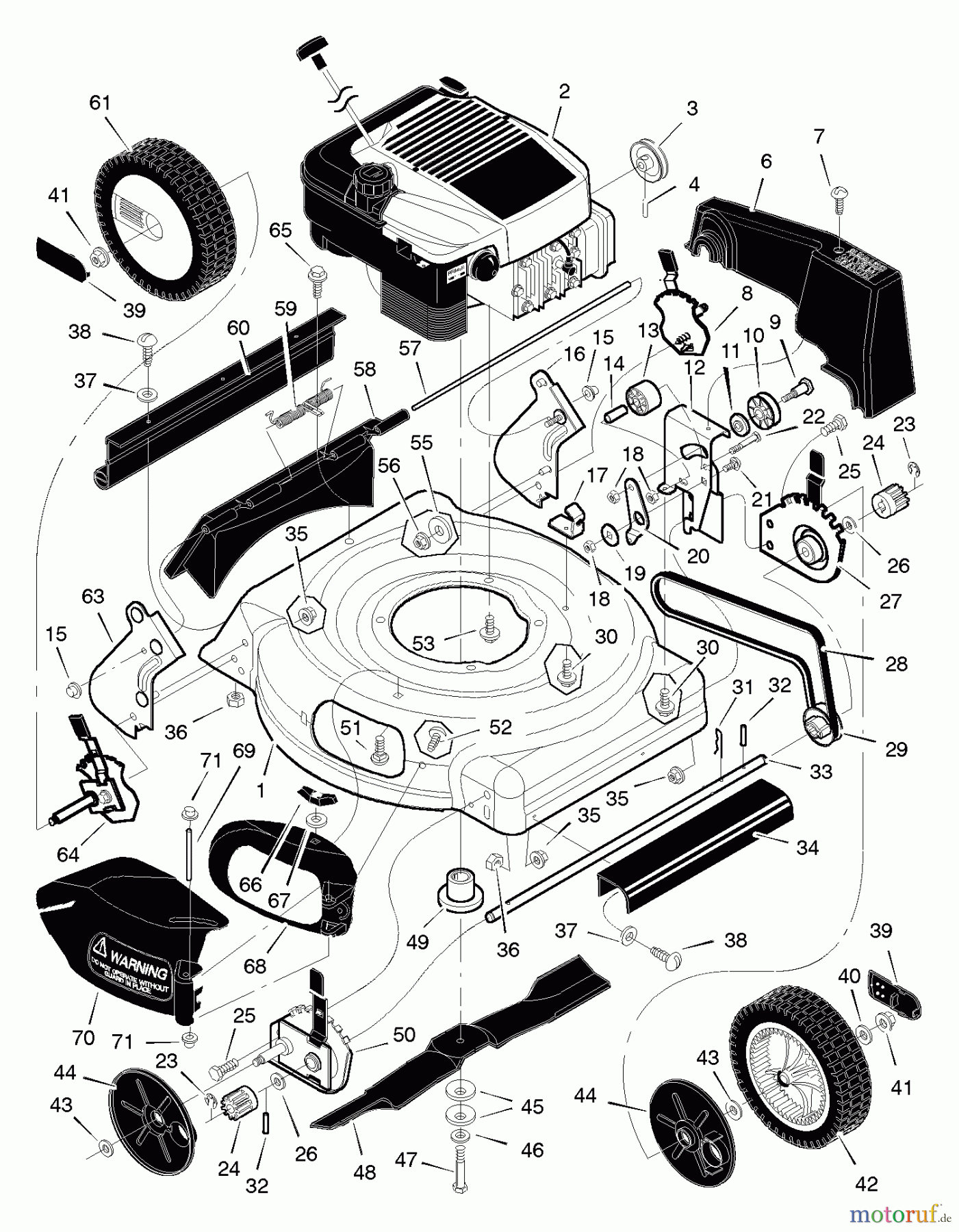

Murray Rasenmäher 20606x9B - B&S/Murray 20

Posizione	Articolo numero	Descrizione
1	BS776002
2	BS	Eingangswelle UE 600
3	BS071434MA	PULLEY-ENG PTO 22RD
4	BS032X64MA	PIN-SPRING.188D-1.0L
6	BS671928
7	BS26X279MA	SCREW-THREAD FORMING
8	BS672605A
9	BS009X50MA	ANSATZBOLZEN .32-18X.499D
10	BS071779MA	IDLER -V- 21FDR
11	BS071788MA	DISTANZTUCK-LEITRAD FDR
12	BS671935 Z
13	BS071778MA	UMLENKROLLE HINTEN 21F
14	BS071793MA	LAGER B/S LEITRAD FD
15	BS028X49MA	NUT- PUSH
16	BS672591
17	BS671934
18	BS015X43MA	NUT .31-18 ST OVERLOC
19	BS071789MA	SPACER IDLER ARM FDR
20	BS671936
21	BS002X53MA	BOLT,CRG .31-18 X 0.
22	BS001X81MA	BOLT-HEX.31-18X1.62 Z
23	BS011X16MA	RING, E .500D - .042T
24	BS071792MA	ZAHNRADGETRIEBE/RITZEL 21RB FD
25	BS001X85MA	SECHSKANTBOLZEN.38-16X0.75 Z
26	BS17X186MA	WASHER.50.99.03 FLAT
27	BS672603MA	HGT ADJ-7 20RB- 8'' FD
28	BS037X84MA	BELT 20RB ORANGE
29	BS071791MA	RIEMENSCHEIBE-ACHSE 21RB FD
30	BS26X263MA	SCREW.25-20 S-T
31	BS0031X9MA	HAARNADEL/HAARSTIFT .38D-.080
32	BS043629MA	PIN, DRIVE .177X.750
33	BS671931MA	AXLE FRT DR 20 RB
34	BS671948MA	ACHSVERKLEIDUNG
35	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
36	BS15X102MA	MUTTER HEX 10-24 NYLON
37	BS017X38MA	UNTERLEGSCHEIBE.26.75 16G FLT
38	BS004X21MA	SCREW,MCH 10-24X.625
39	BS043615MA	HUBCAP 8X2 BAR GRAY
40	BS17X169MA	UNTERLEGSCHEIBE.377-1-.03 FLT
41	BS015X84MA	MUTTER, CENTERLOCK .38-
42	BS071133MA	8X2.00 WHL BAR DR D-G
43	BS17X120MA	UNTERLEGSCHEIBE.51-1.5 16G FL
44	BS071780MA	STAUBABDECKUNG 21RB FD 8X2
45	BS17X137MA	WASHER.39-2.2 11G FL
46	BS17X124MA	WASHER.40.81 16G FLT
47	BS01X142MA	BOLT-HEX.37-24X1.50 P
48	BS672763E701MA	KLINGE 20X2.25 MULCH
49	BS071056MA	ADAPTER-BLADE 7/8X1.0
50	BS672602MA	HOHENVERST. -7 20RB-8"FD R.- H
51	BS002X16MA	SCHLOSSSCHRAUBE .31-18X
52	BS26X221MA	SCREW-.25 X.50 SF TP
53	BS0025X6MA	SCREW, TRI .38-16 X
55	BS17X146MA	UNTERLEGSCHEIBE.34-1.2 11G FL
56	BS015X88MA	NUT,CENTERLOCK Z .3
57	BS215X17ZMA	STANGE .250 DIA X 15.359
58	BS672610AMA	TUR-ASSY 20RB SCHWARZ
59	BS166X44MA	TORSIONSFEDER 20 RB
60	BS671970MA	DEFLECTOR-REAR
61	BS672082
63	BS672590
64	BS672604A
65	BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
66	BS071495MA	WING NUT.31-18 NY-LOC
67	BS028X64MA	DRUCKBUGEL .312
68	BS672158MA	SCHACHT ASSY 20RB SCHWARZ
69	BS215X18ZMA	STANGE.250 DIA X 3.50
70	BS671927
71	BS028X42MA	DRUCKKAPPE.250 METALL
--	BSF-98533
