Murray 22607x71B - B&S/ 22" Walk-Behind Mower (1999) (Quality Stores) Mower Housing Assembly Ricambi

Name: SCHRAUBE- MOTORGESTELL
Price: 7.04 EUR

SCHRAUBE- MOTORGESTELL

Articolo numero:

BS025X11MA

Posizione:

7.04 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

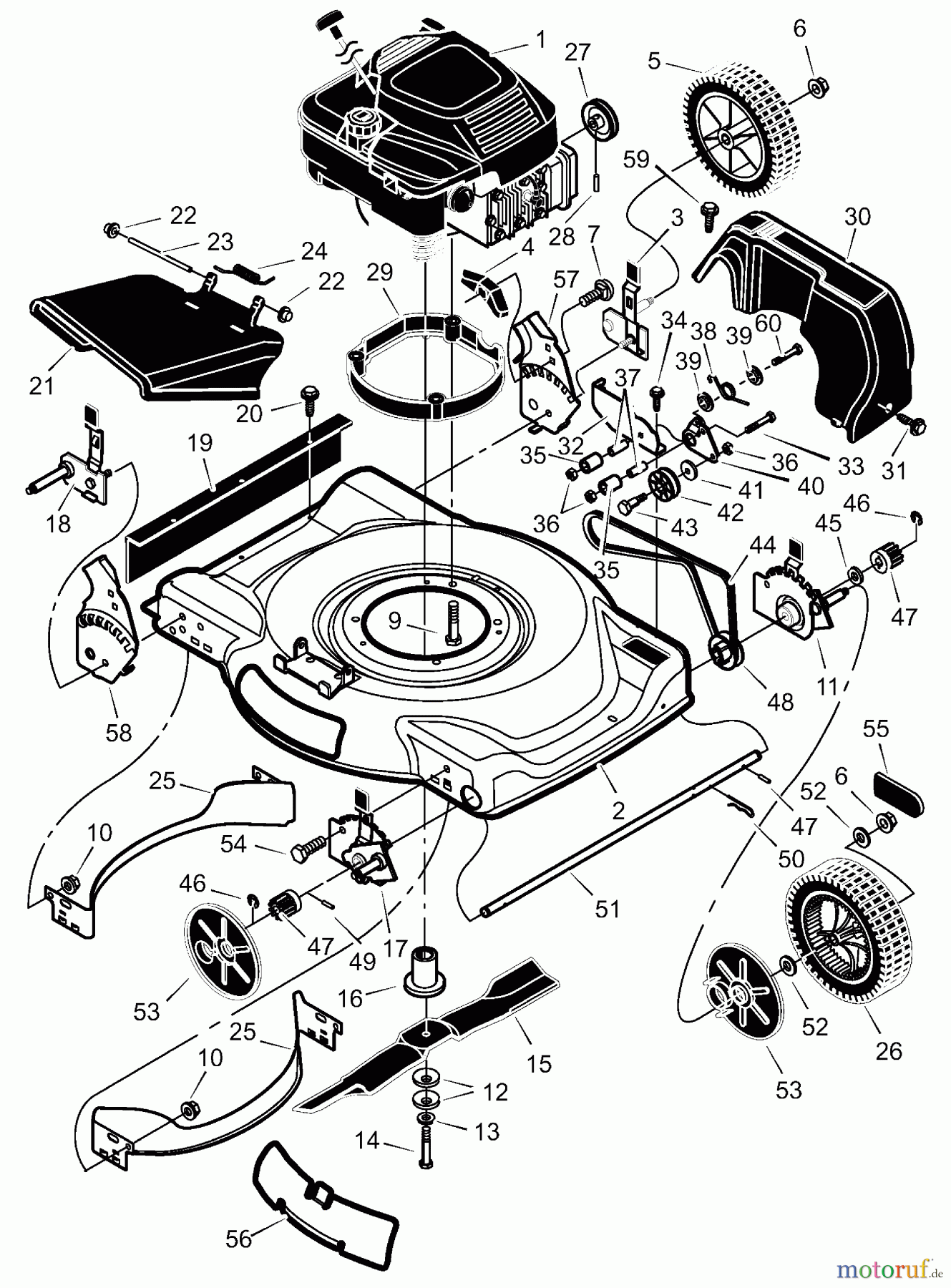

Murray Rasenmäher 22607x71B - B&S/Murray 22

Posizione	Articolo numero	Descrizione
1	BS	Eingangswelle UE 600
2	BS776023
3	BS672641MA	ROLLENEINSTELLUNG-7 22SD- 8" B
4	BS071495MA	WING NUT.31-18 NY-LOC
5	BS071132MA	8X2.00 RADSTANGE/HOLM D-GR
6	BS015X84MA	MUTTER, CENTERLOCK .38-
7	BS002X81MA	BOLT-CRG.31-18X1.50
9	BS025X11MA	SCHRAUBE- MOTORGESTELL
10	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
11	BS672643MA	ROLLENEINSTELLUNG-7 22SD- 8"FD
12	BS17X137MA	WASHER.39-2.2 11G FL
13	BS17X124MA	WASHER.40.81 16G FLT
14	BS01X153MA	BOLT,HEX.37-24X3.00PH
15	BS1101120E701MA	EINZELMESSER; EINZELBLATT
16	BS672503MA	KLINGENADAPTER 7/8X2.3
17	BS672642MA	HGT ADJ-7 22SD- 8'' FD
18	BS672640MA	ROLLENEINSTELLUNG-7 22SD- 8" B
19	BS672738MA	GUARD REAR 22SD 98
20	BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
21	BS672421MA	SCHACHT DEFLEKTOR 22
22	BS028X42MA	DRUCKKAPPE.250 METALL
23	BS215X11ZMA	STANGE .250 DIA X 4.00
24	BS0166X5MA	TORSIONSFEDER
25	BS672744E701MA	BAFFLE-22SD FRNT/REAR
26	BS071133MA	8X2.00 WHL BAR DR D-G
27	BS071434MA	PULLEY-ENG PTO 22RD
28	BS032X64MA	PIN-SPRING.188D-1.0L
29	BS672671MA	ENGINE BASE ASSY 22SD
30	BS672722
31	BS26X259MA	SCHRAUBE-#10X.5 AB W/WAS
32	BS1101240ZMA	HALTERUNG-LEITRAD STUTZE 22
33	BS001X81MA	BOLT-HEX.31-18X1.62 Z
34	BS26X263MA	SCREW.25-20 S-T
35	BS672754MA	PULLEY, BACKSIDE IDLE
36	BS015X43MA	NUT .31-18 ST OVERLOC
37	BS071793MA	LAGER B/S LEITRAD FD
38	BS166X45MA	TORSIONSFEDER 22 FD
39	BS071789MA	SPACER IDLER ARM FDR
40	BS1101121ZMA	ARM-PIVOT ZAPFEN 22FD MIT T
41	BS071788MA	DISTANZTUCK-LEITRAD FDR
42	BS071779MA	IDLER -V- 21FDR
43	BS009X50MA	ANSATZBOLZEN .32-18X.499D
44	BS37X101MA	V BELT
45	BS17X186MA	WASHER.50.99.03 FLAT
46	BS011X16MA	RING, E .500D - .042T
47	BS071792MA	ZAHNRADGETRIEBE/RITZEL 21RB FD
48	BS071791MA	RIEMENSCHEIBE-ACHSE 21RB FD
49	BS043629MA	PIN, DRIVE .177X.750
50	BS0031X9MA	HAARNADEL/HAARSTIFT .38D-.080
51	BS672508MA	AXLE-22SDFD
52	BS17X169MA	UNTERLEGSCHEIBE.377-1-.03 FLT
53	BS071780MA	STAUBABDECKUNG 21RB FD 8X2
54	BS001X85MA	SECHSKANTBOLZEN.38-16X0.75 Z
55	BS043615MA	HUBCAP 8X2 BAR GRAY
56	BS672422ZMA	MULCH PLATE 22SD 98-
57	BS672335E700
58	BS672334E700
59	BS26X289MA	GEWINDESCHRAUBE 10# 2.00 LG
60	BS01X120MA	BOLT-HEX.31-18X2.00 Z
--	BSF-99408
