22617x92A - B&S/Murray 22" Walk-Behind Mower (2000) (Walmart)

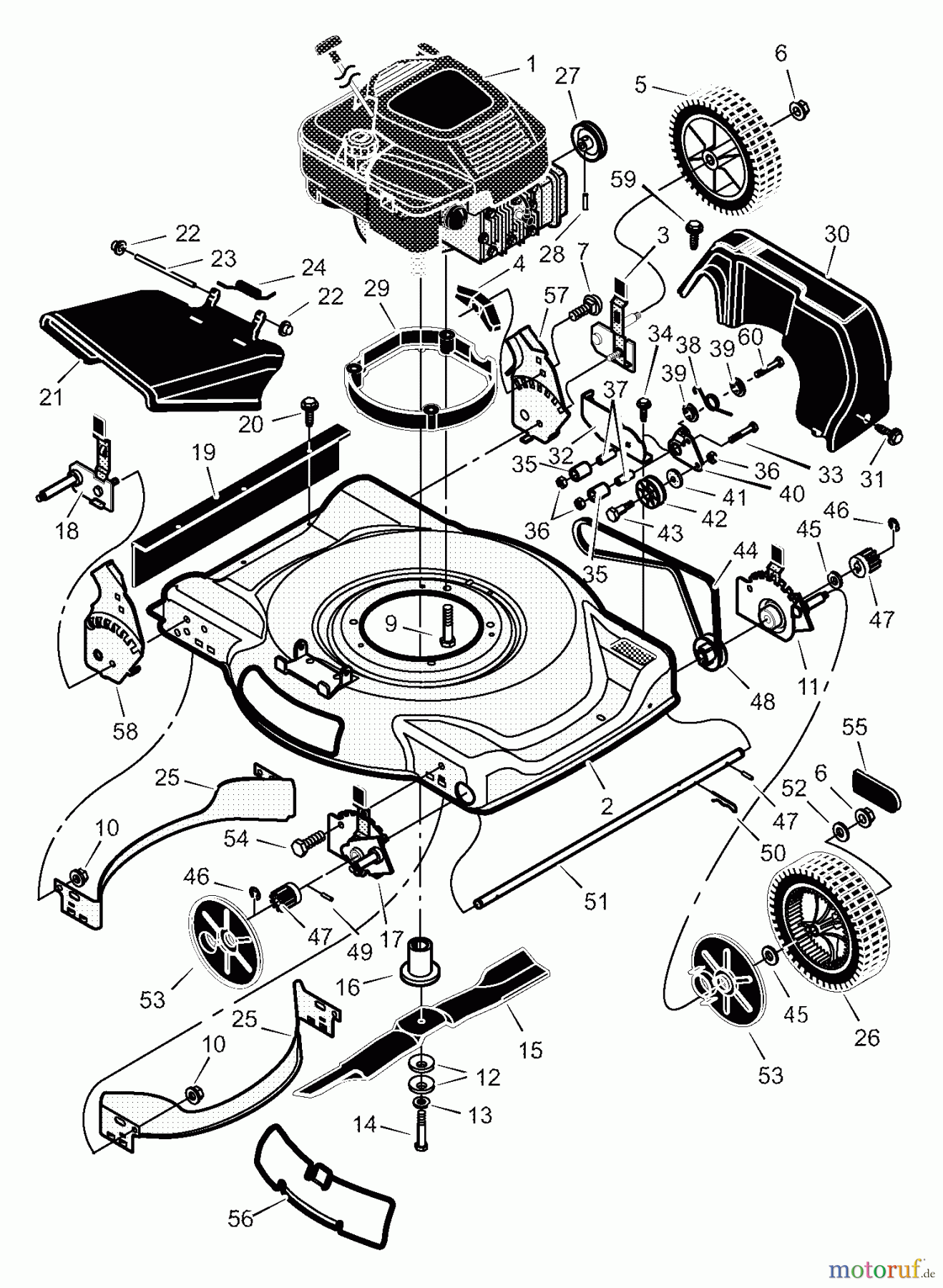

Mower Housing Assembly
WING NUT.31-18 NY-LOC
Articolo numero:
BS071495MA
Posizione:
4
5.78 €
Tutti i prezzi includono l'IVA nell'UE, in più
spedizione
Quantità:
Articolo aggiunto al carrello1
Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.
Posizione
Articolo numero
Descrizione
1
BS
Eingangswelle UE 600
2
BS776023
3
BS672641MA
ROLLENEINSTELLUNG-7 22SD- 8" B
4
BS071495MA
WING NUT.31-18 NY-LOC
5
BS071132MA
8X2.00 RADSTANGE/HOLM D-GR
6
BS015X84MA
MUTTER, CENTERLOCK .38-
7
BS002X81MA
BOLT-CRG.31-18X1.50
9
BS025X11MA
SCHRAUBE- MOTORGESTELL
10
BS015X68MA
MUTTER.38-16 FLANSCHARRETIERUN
11
BS672643MA
ROLLENEINSTELLUNG-7 22SD- 8"FD
12
BS17X137MA
WASHER.39-2.2 11G FL
13
BS17X124MA
WASHER.40.81 16G FLT
14
BS01X153MA
BOLT,HEX.37-24X3.00PH
15
BS1101120E701MA
EINZELMESSER; EINZELBLATT
16
BS672503MA
KLINGENADAPTER 7/8X2.3
17
BS672642MA
HGT ADJ-7 22SD- 8'' FD
18
BS672640MA
ROLLENEINSTELLUNG-7 22SD- 8" B
19
BS672738MA
GUARD REAR 22SD 98
20
BS26X245MA
SCHRAUBE-#10X.5 B W/WAS
21
BS672421MA
SCHACHT DEFLEKTOR 22
22
BS028X42MA
DRUCKKAPPE.250 METALL
23
BS215X11ZMA
STANGE .250 DIA X 4.00
24
BS0166X5MA
TORSIONSFEDER
25
BS672744E701MA
BAFFLE-22SD FRNT/REAR
26
BS071133MA
8X2.00 WHL BAR DR D-G
27
BS071434MA
PULLEY-ENG PTO 22RD
28
BS032X64MA
PIN-SPRING.188D-1.0L
29
BS672671MA
ENGINE BASE ASSY 22SD
30
BS672722
31
BS26X259MA
SCHRAUBE-#10X.5 AB W/WAS
32
BS1101240ZMA
HALTERUNG-LEITRAD STUTZE 22
33
BS001X81MA
BOLT-HEX.31-18X1.62 Z
34
BS26X263MA
SCREW.25-20 S-T
35
BS672754MA
PULLEY, BACKSIDE IDLE
36
BS015X43MA
NUT .31-18 ST OVERLOC
37
BS071793MA
LAGER B/S LEITRAD FD
38
BS166X45MA
TORSIONSFEDER 22 FD
39
BS071789MA
SPACER IDLER ARM FDR
40
BS1101121ZMA
ARM-PIVOT ZAPFEN 22FD MIT T
41
BS071788MA
DISTANZTUCK-LEITRAD FDR
42
BS071779MA
IDLER -V- 21FDR
43
BS009X50MA
ANSATZBOLZEN .32-18X.499D
44
BS37X101MA
V BELT
45
BS17X186MA
WASHER.50.99.03 FLAT
46
BS011X16MA
RING, E .500D - .042T
47
BS071792MA
ZAHNRADGETRIEBE/RITZEL 21RB FD
48
BS071791MA
RIEMENSCHEIBE-ACHSE 21RB FD
49
BS043629MA
PIN, DRIVE .177X.750
50
BS0031X9MA
HAARNADEL/HAARSTIFT .38D-.080
51
BS672508MA
AXLE-22SDFD
52
BS17X169MA
UNTERLEGSCHEIBE.377-1-.03 FLT
53
BS071780MA
STAUBABDECKUNG 21RB FD 8X2
54
BS001X85MA
SECHSKANTBOLZEN.38-16X0.75 Z
55
BS043615MA
HUBCAP 8X2 BAR GRAY
56
BS672422ZMA
MULCH PLATE 22SD 98-
57
BS672335E700
58
BS672334E700
59
BS26X289MA
GEWINDESCHRAUBE 10# 2.00 LG
60
BS01X120MA
BOLT-HEX.31-18X2.00 Z
--
