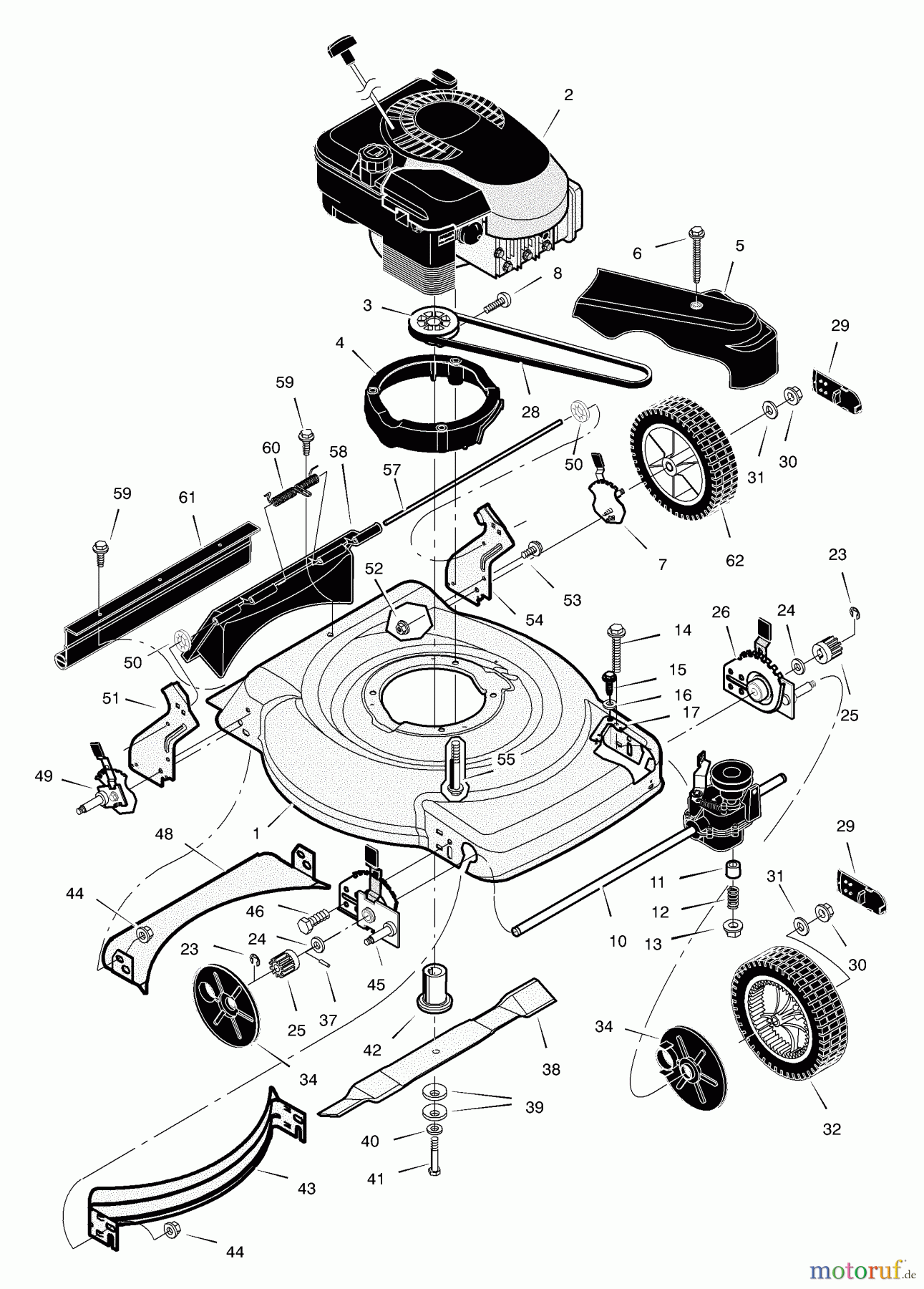

Murray 228511x8D - Scotts 22" Walk-Behind Mower (2002) (Home Depot) Mower Housing Assembly Ricambi

Name: AUFKLEBER-KUNDENBETREUUNG-MURR
Price: 25.52 EUR

AUFKLEBER-KUNDENBETREUUNG-MURR

Articolo numero:

BS44X6259MA

Posizione:

25.52 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Posizione	Articolo numero	Descrizione
1	BS1101339E701
2	BS	Eingangswelle UE 600
3	BS1101436MA	PULLEY-CRANKSHAFT FR-
4	BS1101331MA	DISTANZSTUCK-MOTOR 22RB FDTM
5	BS1101596MA	COVER- BELT BLACK-TMD
6	BS26X304MA	SCREW-#10X.2.5
7	BS672605MA	HGT ADJ-7 2022RB- 8''
8	BS26X303MA	SCREW, #8 - 11 X .63
10	BS1101435MA	TRANS, 1SP FRANCE RED
11	BS043844MA	DISTANZSTUCK 16" MAG RAD
12	BS164X27MA	SPRING-COMPRESSION
13	BS015X88MA	NUT,CENTERLOCK Z .3
14	BS01X156MA	BOLT-HEX.31-18X3.00 P
15	BS025X15MA	SCREW 3/8-16
16	BS17X124MA	WASHER.40.81 16G FLT
17	BS1101569E701MA	BRKT-BELT COVER USE U
23	BS011X16MA	RING, E .500D - .042T
24	BS17X186MA	WASHER.50.99.03 FLAT
25	BS071792MA	ZAHNRADGETRIEBE/RITZEL 21RB FD
26	BS1101029MA	HOHENVERSTELLER-7 22RB-8"FD
28	BS37X116MA	RIEMEN-22RB FD TMCC FRA
29	BS043615MA	HUBCAP 8X2 BAR GRAY
30	BS015X84MA	MUTTER, CENTERLOCK .38-
31	BS17X169MA	UNTERLEGSCHEIBE.377-1-.03 FLT
32	BS071133MA	8X2.00 WHL BAR DR D-G
34	BS071780MA	STAUBABDECKUNG 21RB FD 8X2
37	BS043629MA	PIN, DRIVE .177X.750
38	BS1101120E701MA	EINZELMESSER; EINZELBLATT
39	BS17X137MA	WASHER.39-2.2 11G FL
40	BS17X124MA	WASHER.40.81 16G FLT
41	BS01X144MA	SECHSKANTBOLZEN.37-24X3.25PH
42	BS1101336MA	ADAPTER-MESSER/BLATT 7/8X2.6
43	BS672915E701MA	BAFFLE-22RB FRONT .05
44	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
45	BS1101028MA	HOHENVERSTELLER-7 22RB- 8"FD
46	BS001X85MA	SECHSKANTBOLZEN.38-16X0.75 Z
48	BS672916E701MA	BAFFLE-22RB REAR .05
49	BS672604MA	HGT ADJ-7 2022RB- 8''
50	BS028X49MA	NUT- PUSH
51	BS1101238E701MA	HALTERUNG GRIFF STUTZE 2022RB
52	BS015X79MA	NUT.31-18 FLANGELOCK
53	BS001X45MA	BOLT-HEX.31-18X0.62 Z
54	BS1101239E701MA	HALTERUNG GRIFF STUTZE 2022RB
55	BS025X11MA	SCHRAUBE- MOTORGESTELL
57	BS215X21MA	STANGE.25DX17.50 PCH ZIN
58	BS672610AMA	TUR-ASSY 20RB SCHWARZ
59	BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
60	BS166X44MA	TORSIONSFEDER 20 RB
61	BS1101105MA	SCHUTZ HINTEN 22RB 08-WH
62	BS071132MA	8X2.00 RADSTANGE/HOLM D-GR
--	BS44X6259MA	AUFKLEBER-KUNDENBETREUUNG-MURR
--	BS48X407MA	DEC-WARNING/FINGER
--	BS48X667
--	BS48X5039
--	BSF-020468M
