Murray 22965x8B - Scotts 22" Walk-Behind Mower (2001) (Home Depot) Mower Housing Assembly Ricambi

Name: HALTERUNG-LEITRAD STUTZE 22
Price: 11.97 EUR

HALTERUNG-LEITRAD STUTZE 22

Articolo numero:

BS1101240ZMA

Posizione:

11.97 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

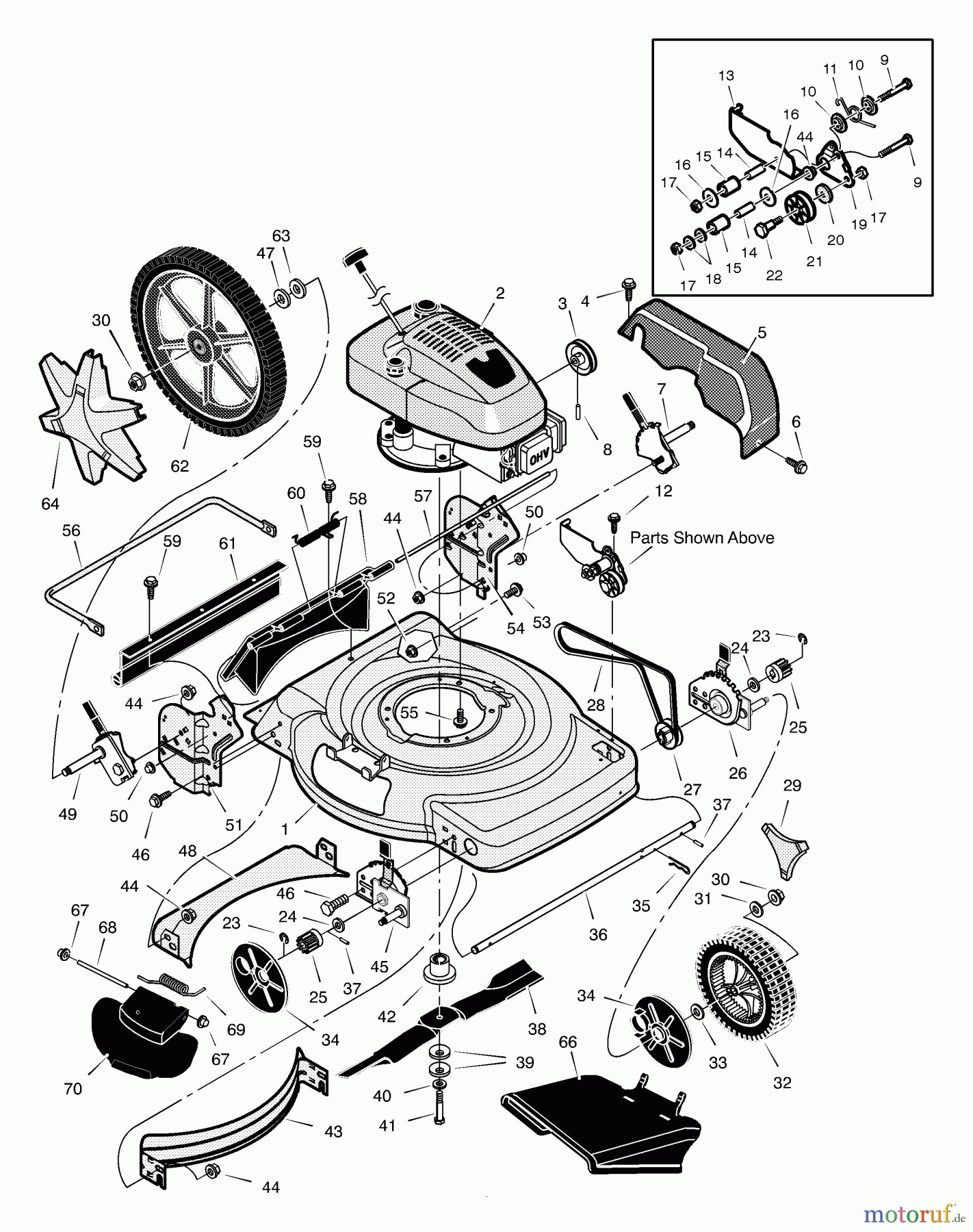

Posizione	Articolo numero	Descrizione
1	BS7501002
2	BS	Eingangswelle UE 600
3	BS071434MA	PULLEY-ENG PTO 22RD
4	BS26X256MA	SCREW, TAP #10 1.25L
5	BS1101080
6	BS26X279MA	SCREW-THREAD FORMING
7	BS1101101MA	HOHENVERSTELLER 22RB RER HW LI
8	BS032X64MA	PIN-SPRING.188D-1.0L
9	BS01X120MA	BOLT-HEX.31-18X2.00 Z
10	BS071789MA	SPACER IDLER ARM FDR
11	BS166X45MA	TORSIONSFEDER 22 FD
12	BS26X217MA	GEWINDESCHRAUBE .25 .625 LG
13	BS1101240ZMA	HALTERUNG-LEITRAD STUTZE 22
14	BS071793MA	LAGER B/S LEITRAD FD
15	BS672754MA	PULLEY, BACKSIDE IDLE
16	BS017X45MA	WASHER,FLAT .33 1. 16
17	BS015X43MA	NUT .31-18 ST OVERLOC
18	BS17X102MA	UNTERLEGSCHEIBE-MAHER
19	BS1101121ZMA	ARM-PIVOT ZAPFEN 22FD MIT T
20	BS071788MA	DISTANZTUCK-LEITRAD FDR
21	BS071779MA	IDLER -V- 21FDR
22	BS009X50MA	ANSATZBOLZEN .32-18X.499D
23	BS011X16MA	RING, E .500D - .042T
24	BS17X186MA	WASHER.50.99.03 FLAT
25	BS071792MA	ZAHNRADGETRIEBE/RITZEL 21RB FD
26	BS1101079MA	HOHENVERSTELLER-7 22RB- 8"FD
27	BS071791MA	RIEMENSCHEIBE-ACHSE 21RB FD
28	BS37X100MA	BELT(22SD B&S)&(22RB
29	BS672805MA	HUBCAP T-BAR LG-RIM D
30	BS015X84MA	MUTTER, CENTERLOCK .38-
31	BS17X169MA	UNTERLEGSCHEIBE.377-1-.03 FLT
32	BS672441MA	8X2.00 RAD T-SCHIENE DR D
33	BS17X120MA	UNTERLEGSCHEIBE.51-1.5 16G FL
34	BS071780MA	STAUBABDECKUNG 21RB FD 8X2
35	BS0031X9MA	HAARNADEL/HAARSTIFT .38D-.080
36	BS672508MA	AXLE-22SDFD
37	BS043629MA	PIN, DRIVE .177X.750
38	BS672573E701MA	SINGLE BLADE - 672573
39	BS17X137MA	WASHER.39-2.2 11G FL
40	BS17X124MA	WASHER.40.81 16G FLT
41	BS01X153MA	BOLT,HEX.37-24X3.00PH
42	BS672503MA	KLINGENADAPTER 7/8X2.3
43	BS672915E701MA	BAFFLE-22RB FRONT .05
44	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
45	BS1101078MA	HOHENVERSTELLER-7 22RB- 8"FD
46	BS001X85MA	SECHSKANTBOLZEN.38-16X0.75 Z
47	BS0020X3MA	WASHER,SPRING .52X.99
48	BS672916E701MA	BAFFLE-22RB REAR .05
49	BS1101100MA	HOHENVERSTELLER 22RB RER HW RE
50	BS028X49MA	NUT- PUSH
51	BS1101244E701MA	BRKT, HNDLE SUPT BLAC
52	BS015X79MA	NUT.31-18 FLANGELOCK
53	BS001X45MA	BOLT-HEX.31-18X0.62 Z
54	BS1101245E701MA	HALTERUNG,GRIFF STUTZE SCHWARZ
55	BS0025X6MA	SCREW, TRI .38-16 X
56	BS1101008E122
57	BS215X21MA	STANGE.25DX17.50 PCH ZIN
58	BS1101131
59	BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
60	BS166X44MA	TORSIONSFEDER 20 RB
61	BS1101105MA	SCHUTZ HINTEN 22RB 08-WH
62	BS672801MA	14X2 RAD SCOTTS-BB 6
63	BS017X91MA	WASHER,FLAT .54.81
64	BS672800MA	HUBCAP SCOTTS 6SPOKE
66	BS672917MA	SCHACHT DEFLEKTOR 22 R8
67	BS028X42MA	DRUCKKAPPE.250 METALL
68	BS215X19ZMA	STANGE.250 DIA X 5.55
69	BS166X38MA	TORSIONSFEDER
70	BS672920MA	MULCH COVER 22RB GRAY
--	BSF-010408J
