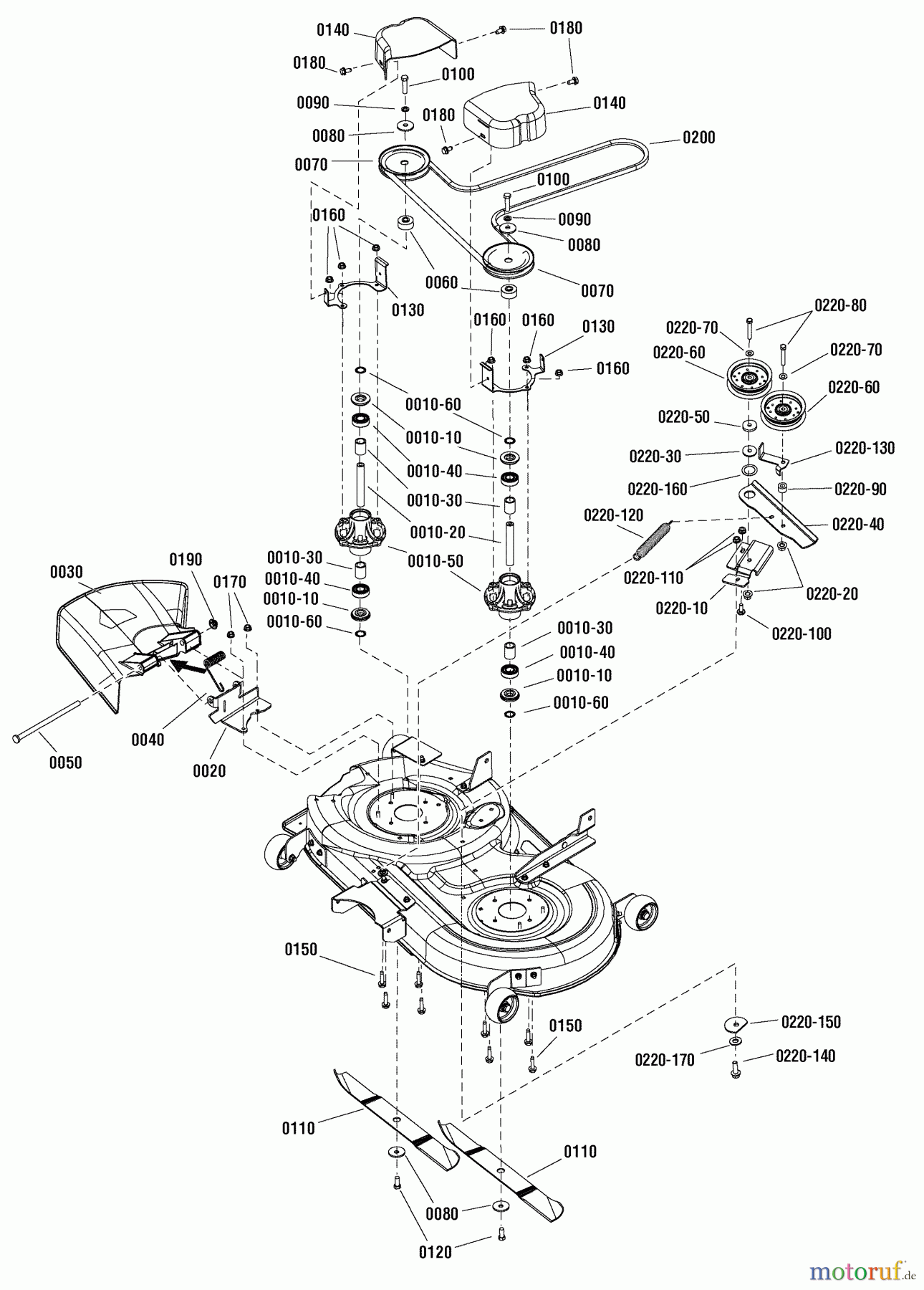

Murray 107.280061 (7800753) - Craftsman ZTS7000, 21HP B&S w/42" Mower Deck (2011) (Sears) 42" Mower Deck - Spindle and Idler Group (7502257) Ricambi

KUGELLAGER, 20MM

Articolo numero:
BS1735399YP
Posizione:
0010-40
14.49 €
Tutti i prezzi includono l'IVA nell'UE, in più spedizione
Quantità:
Dettagli di contatto Sicurezza del prodotto
Articolo aggiunto al carrello1
in magazzino in magazzino
Murray Nullwendekreismäher, Zero-Turn 107.280061 (7800753) - Craftsman ZTS7000, 21HP B&S w/42
PosizioneArticolo numeroDescrizione
0010 BSEingangswelle UE 600
0010-10 Murray SCHUTZSCHILDBS1735323YPSCHUTZSCHILD
0010-20 BS1735326YPSPINDELACHSE, 20MM
0010-30 BS1735328YPDISTANZSCHEIBE, LAGER
0010-40 BS1735399YPKUGELLAGER, 20MM
0010-50 BS1735573YPSPINDELGEHAUSE
0010-60 Murray RING, SELBSTSICH.BS1960766YPRING, SELBSTSICH.
0020 BS7301176BZYPHINGE, BRACKET
0030 BS7104733YPCHUTE, SIDE DISCHARGE
0040 BS7035813SMSPRING, TORSION, SIDE
0050 BS7104640YPROD, DISCHARGE CHUTE
0060 BS1737457YPDISTANZRING, RIEMENSCHEIBE
0070 BS1737835YPRIEMENSCHEIBE
0080 BS1656916SMWASHER, SPRING 0.475I
0090 BS1918199SMSICHERUNGSRING, FEDER 438
0100 BS1923027SMSECHSKANTSCHR: HD 7/16
0110 BS1737816BMYPMESSER
0120 BS1920676SMSECHSKANTSCHR. HD7/16
0130 BS7301177BZYPBRACKET, REAR COVER
0140 BS1735752YPRIEMENABDECKUNG
0150 BS7091524YPHWST, SWAGEFORM,
0160 BS1931277SMMUTTER - HEX
0170 BS1927557SMNUT-HEX FLANGE 5/16-1
0180 BS1930601SMSCREW-HEX WSHR HD TAP
0190 BS1960519SMDRUCKMUTTER .500DIA
0200 BS1732956SMV-BELT HA 118.00 LG
0220 BSEingangswelle UE 600
0220-10 BS7300569BZYPBRACKET, IDLER
0220-20 BS1931211SMBUNDMUTTER 3/8-16
0220-30 BS1714255SMDISTANZSTUCK-0.406ID 1.50 O
0220-40 BS1734243BMYPARM, IDLER
0220-50 BS1960534SMSCHEIBE-0.375(0.41IDX1
0220-60 BS1736540YPLAUFROLLE
0220-70 BS7090122YPWASHER, 3/8" FLAT SAE
0220-80 BS7091560YPSCHRAUBE, 3/8-16 X 2-1/4
0220-90 BS7016719YPSPACER .750 X .39
0220-100 BS1931334SMBOLZEN-STREBE HD SH SQ NK 5
0220-110 BS1927557SMNUT-HEX FLANGE 5/16-1
0220-120 BS1733844SMFEDER 1.03 ODX
0220-130 BS7301201BZYPBELT, GUIDE
0220-140 BS7091591SMBOLZEN, /16C X1 GR5 YZ
0220-150 BS7091775SMFW, .531X2.5X.135 CUT
0220-160 BS7031079YPWASHER, THRUST
0220-170 BS1924940SMWASHER-0.375(0.41IDX0
