Murray 11527ES (1696029) - 27" Dual Stage Snowthrower (2011) Handles & Controls Group (2989399_2989759) Ricambi

Name: BLECHLEISTE
Price: 20.90 EUR

BLECHLEISTE

Articolo numero:

BS1502113MA

Posizione:

0560

20.90 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

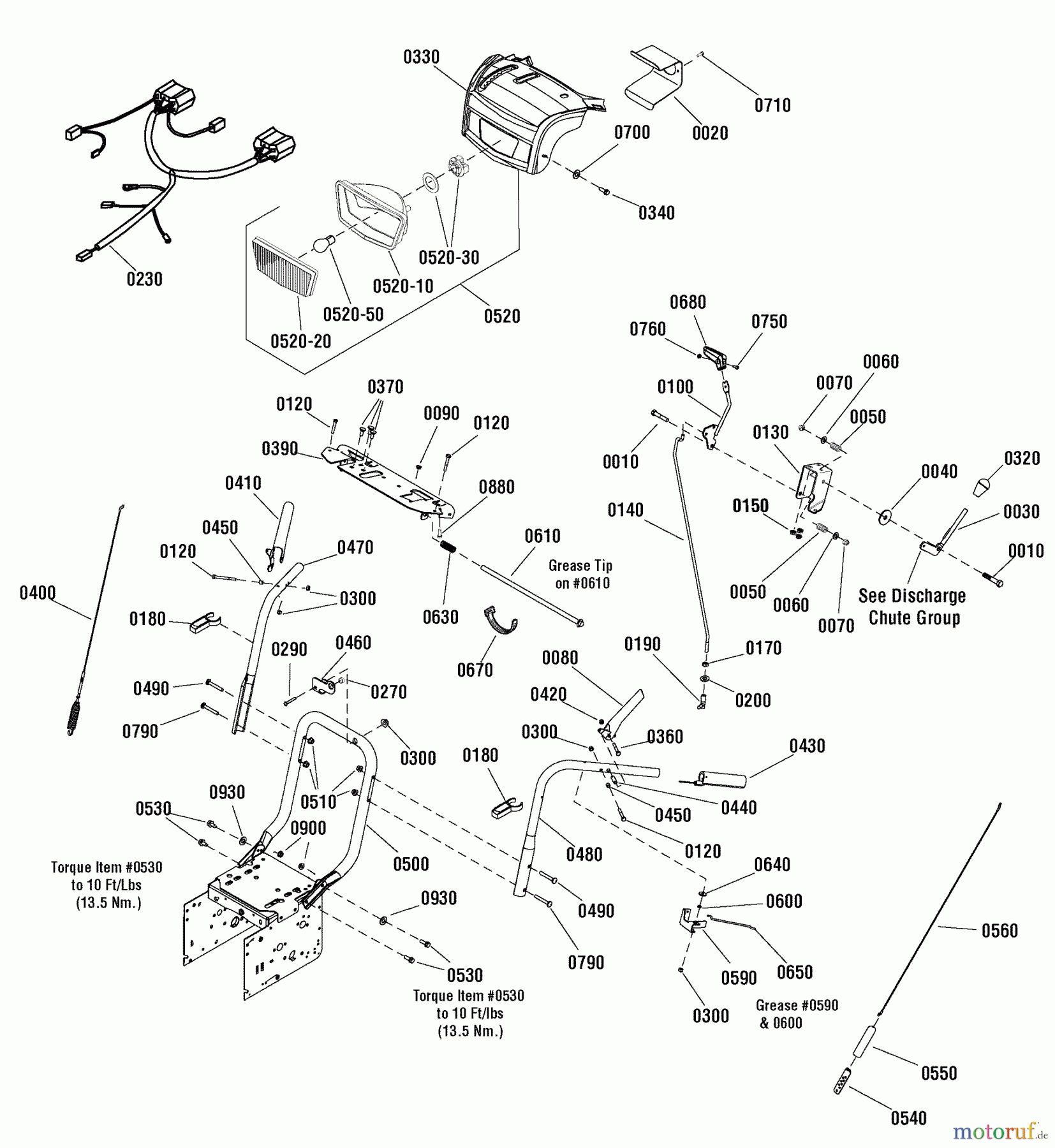

Murray Schneefräsen 11527ES (1696029) - Murray 27

Posizione	Articolo numero	Descrizione
0010	BS1923701SM	CAPSCREW - HEX HD
0020	BS1736305AYP	BELEUCHTUNGSHALTER
0030	BS1736192YP	HEBEL, LEITBLECH KONTR.
0040	BS1924356SM	ABZIEHER-SCHEIBE
0050	BS50786MA	FEDER,.509 DIA X0.75
0060	BS1918266SM	ABZIEHER-SCHEIBE
0070	BS1919439SM	NUT - HEX LOCK
0080	BS1739782AYP	KUPPL.HEBEL. LINKS
0090	BS1667588SM	BUSHING
0100	BS1736836YP	DREHZAHLREG.HEBEL KOMPL.
0120	BS1921962SM	CAPSCREW - HEX HD
0130	BS1737684YP	HALTER, BEDIENTEIL
0140	BS1734354SM	ROD - SPEED CONTROL
0150	BS1931277SM	MUTTER - HEX
0170	BS2820263SM	NUT - HEX
0180	BS1739510YP	MONTAGEHALTER
0190	BS1739290YP	KUGELGELENK
0200	BS1917356SM	LOCKWASHER
0230	BS1738286YP	KABELSTRANG, SCHEINWERFER
0270	BS1501874MA	BUSHING, CHUTE CRANK
0290	BS1931323SM	BOLT-RD HD SH SQ NK
0300	BS1920397SM	NUT - HEX LOCK
0320	BS1732470SM	KNOB
0330	BS1736345YP	BLENDE KOMPL. PANEL
0340	BS1960001SM	SCREW, SELF TAPPING
0360	BS1750554YP	SCHULTERBOLZEN
0370	BS1931333SM	BOLT
0390	BS1739500AYP	AUFNAHME, ARMATURENTRAGER
0400	BS1737544YP	ZUG UND FEDER KOMPL.
0410	BS1739783AYP	KUPPL.HEBEL. RECHTS
0420	BS1933896SM	NUT - HEX LOCK
0430	BS1726317SM	GRIP, FOAM
0440	BS1736542YP	DISTANZSTUCK, ABGESETZT
0450	BS1678392SM	SPACER, HANDLE
0460	BS1735589YP	HALTER
0470	BS1734587ASM	HANDLE - UPPER RH
0480	BS1734586ASM	HANDLE - UPPER LH
0490	BS1960273SM	BOLT
0500	BS1737274AYP	HANDGRIFF, UNTER
0510	BS1739305YP	NUT, ESNA, 5/16-18
0520	BS1736208YP	SCHEINWERFER KOMPL.
0520-10	BS	Eingangswelle UE 600
0520-20	BS	Eingangswelle UE 600
0520-30	BS1736180YP	SOCKET, LIGHT, W/GASKET
0520-50	BS	Eingangswelle UE 600
0530	BS1931333SM	BOLT
0540	BS313441MA	BRACKET, CABLE ADJ BL
0550	BS308146MA	BOOT, CLUTCH SPRING
0560	BS1502113MA	BLECHLEISTE
0590	BS1733505ASM	BRACKET, FREE HAND
0600	BS1733095SM	DISTANZSTUECK
0610	BS1736363YP	STREBE & FEDER KOMPL.
0630	BS2108360SM	SPRING
0640	BS1960353SM	ABZIEHER-SCHEIBE
0650	BS1736360YP	GESTANGE
0670	BS1701011SM	TIE, SELF LOCKING .18
0680	BS1733192SM	KNOB-SLOT SPEED BLACK
0700	BS1921319SM	ABZIEHER-SCHEIBE
0710	BS316042MA	SCREW, 10X.62 UNSL-HW
0750	BS1960589SM	SCREW-RD HD PHILLIPS
0760	BS7091290SM	HLN, NYLON, #10C YZ
0790	BS1931338SM	BOLT-RD HD SH SQ NK 5
0880	BS7091081SM	HWST, 1/4-15X3/4 BZ
0900	BS1739305YP	NUT, ESNA, 5/16-18
0930	BS71071MA	WASHER, FLAT .349X.69
