Murray 536.881500 - Craftsman 22" Dual Stage Snow Thrower (2004) (Sears) Engine Drive Assembly Ricambi

Name: SCREW, 3/8-16X1.00 -2
Price: 5.57 EUR

SCREW, 3/8-16X1.00 -2

Articolo numero:

BS47792MA

Posizione:

5.57 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

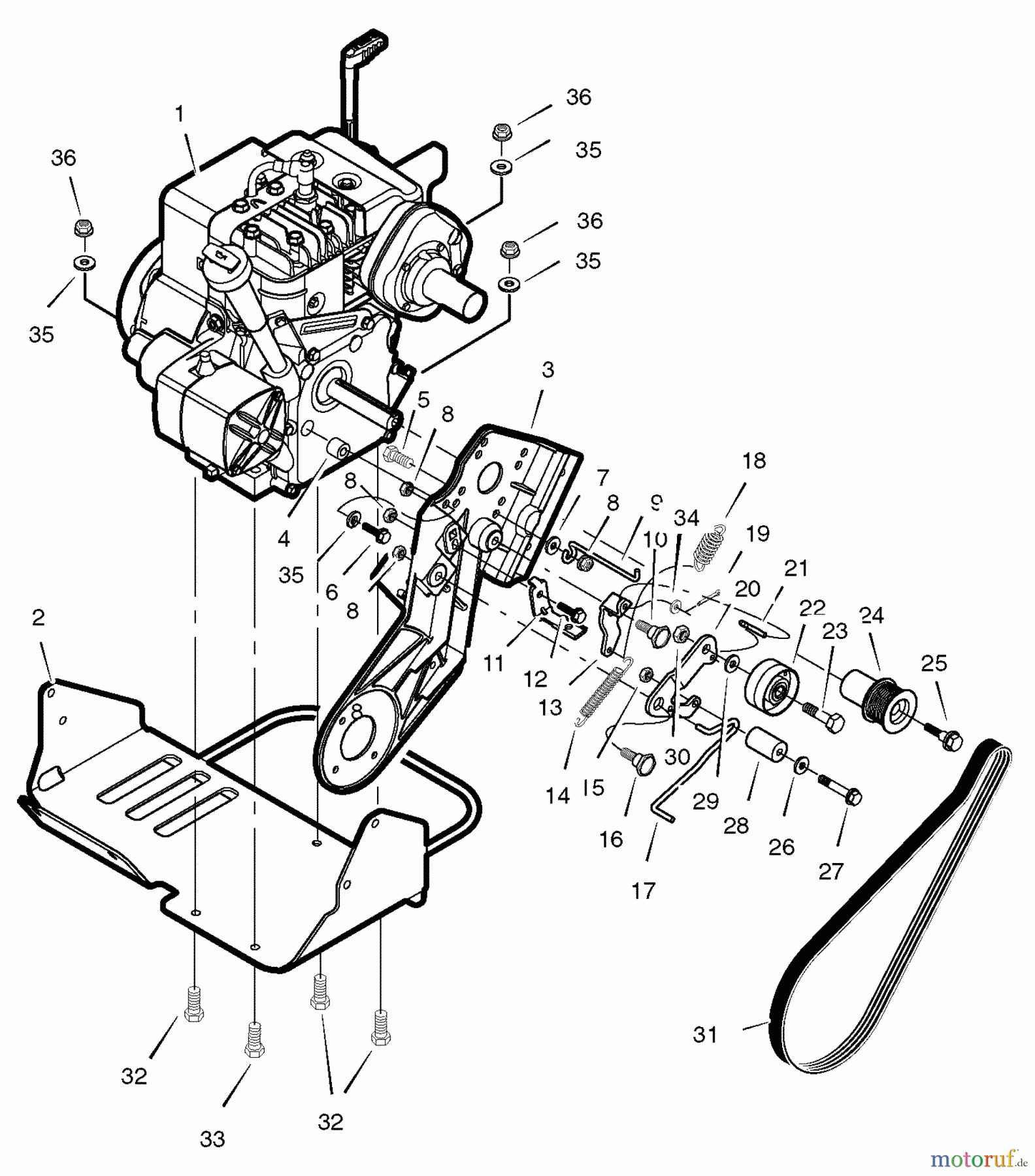

Posizione	Articolo numero	Descrizione
1	BS	Eingangswelle UE 600
2	BS1501849E701MA	CRADLE ASSY, ENGINE
3	BS1501872E701MA	RAHMEN LINKS
4	BS1502027MA	MOTORFASSUNG; MOTORGESTELL ANT
5	BS1X216MA	SECHSKANTBOLZEN
6	BS6X118MA	BOLT, HEX
7	BS71071MA	WASHER, FLAT .349X.69
8	BS015X43MA	NUT .31-18 ST OVERLOC
9	BS334079MA	GURTFUHRUNG; RIEMENFUHRUNG
10	BS333594MA	ANSATZBOLZEN.500X.177 .31
11	BS333970MA	BRAKE PAD,11 GA BLACK
12	BS579052MA	SCHRAUBE.25-20X0.62 HHC
13	BS313444MA	ARM,IDLER PIVOT REPLA
14	BS313473MA	SPRING,EXT.38 OD X.03
16	BS333594
15	BS73826MA	NUT.25-20 HEX CTRL0CK
17	BS1501009MA	WIRE FORM,BRAKE 5.0/2
18	BS313471MA	SPRING,EXT.75 OD X.06
19	BS121223MA	FEDERSTECKER
20	BS320077MA	ARM,IDLER BLACK PHOS
21	BS313436MA	STEUERVERBINDUNGSSTANGE 954
22	BS48924MA	PULLEY,IDLER BB 1.88O
23	BS302637MA	SCREW, 3/8-16X1.50 SP
24	BS1501908MA	RIEMENSCHEIBE,MOTOR MODELL 9
25	BS1501907MA	BOLZEN, MOTOR RIEMENSCHEIBE
26	BS71067MA	WASHER, FLAT .281X.63
27	BS180044MA	SCHRAUBE 25-20X2.00 HHC
28	BS1501010MA	ANDRUCKROLLE; ABSENKROLLE
29	BS301188MA	UNTERLEGSCHEIBE .378X
30	BS41529MA	NUT, 3/8-16 HXCTRLKJA
31	BS333721MA	BELT,POLY-V 10 RIB 35
32	BS001X81MA	BOLT-HEX.31-18X1.62 Z
33	BS47792MA	SCREW, 3/8-16X1.00 -2
34	BS414106MA	WASHER F
35	BS71060MA	WASHER, SPTLK .31X.58
36	BS71037MA	MUTTER 31-18 REG SECHSKANT -Y
--	BSF-041032C
