Murray C950-52411-0 - Craftsman 29" Dual Stage Snow Thrower (2004) (Sears) Engine Ricambi

Name: SCREW 3/8-24X1.00 NYH
Price: 6.24 EUR

SCREW 3/8-24X1.00 NYH

Articolo numero:

BS39573MA

Posizione:

6.24 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

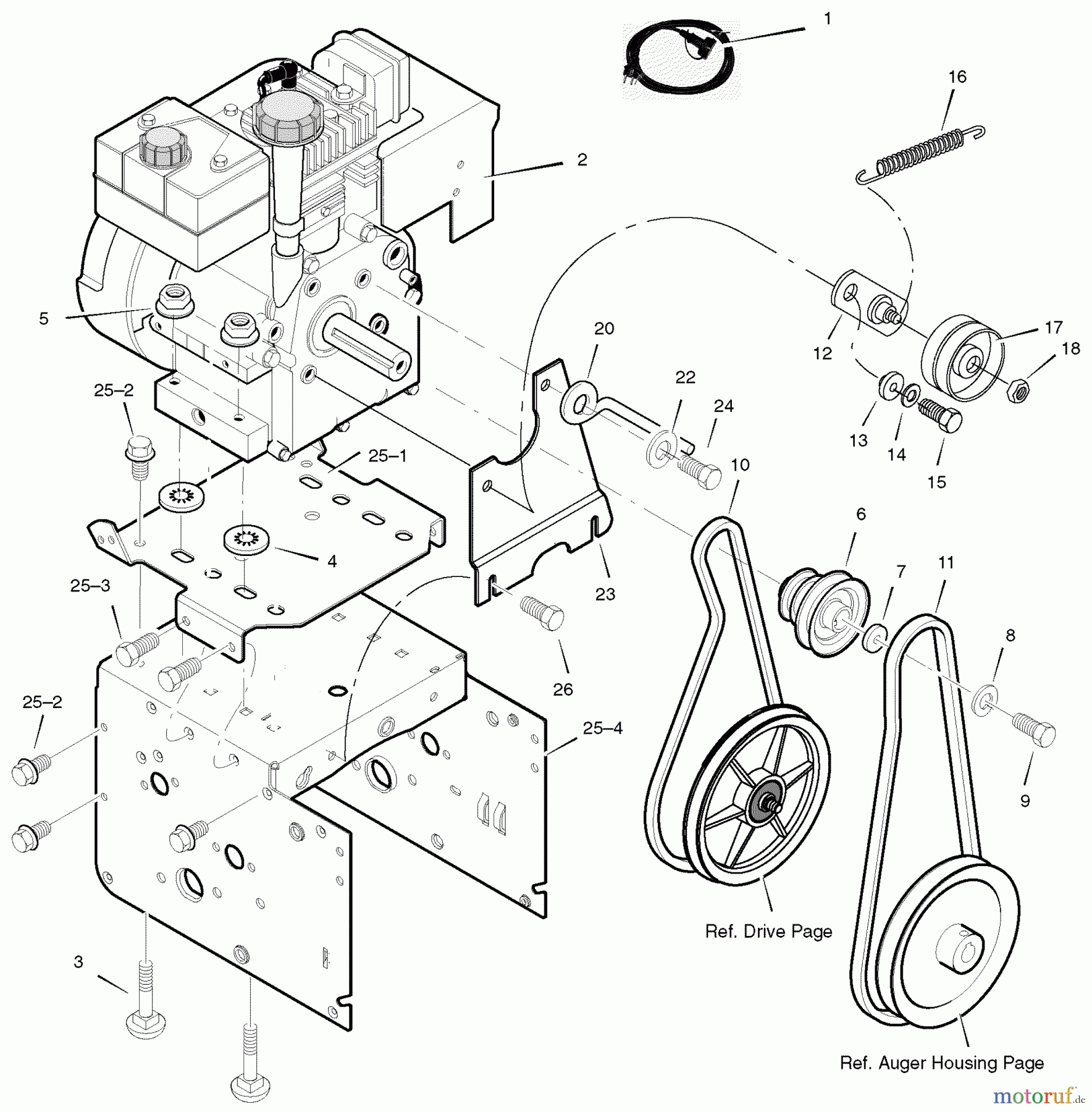

Posizione	Articolo numero	Descrizione
1	BS6219MA	LEINE, STARTER MOTOR
2	BS	Eingangswelle UE 600
3	BS002X97MA	BOLT, CARR 5/16
4	BS028X76MA	SCHNELLMUTTER
5	BS710026MA	MUTTER .31-HEX FLG SER
6	BS1501109MA	MOTORRIEMENSCHEIBE
7	BS710247MA	WASHER
8	BS71063MA	SCHEIBE
9	BS39573MA	SCREW 3/8-24X1.00 NYH
10	BS579932MA	BELT
11	BS585416MA	BELT
12	BS1501112YZMA	IDLER BRKT ASY,DR-BEL
13	BS1501065MA	BUSHING,IDLER BRKT
14	BS71060MA	WASHER, SPTLK .31X.58
15	BS910828MA	SCREW, 5/16-24X1.00 H
16	BS165X164MA	LEITZUGFEDER 8-13
17	BS50793MA	PULLEY, IDLER BFF 1.8
18	BS41529MA	NUT, 3/8-16 HXCTRLKJA
20	BS1501201MA	GUIDE,BELT STD FR DRI
22	BS71060
23	BS1501482MA	BLECH SCHWINGUNGSFREI SCHWINGM
24	BS910828
25	BS	Eingangswelle UE 600
25?1	BS1501062E549
25?2	BS310169MA	SCREW, 1/4-20X .63 WA
25?3	BS25X020MA	SCREW.31-18X0.50 WAHH
25?4	BS1501049E549
26	BS26X263MA	SCREW.25-20 S-T
--	BSF-041054L
