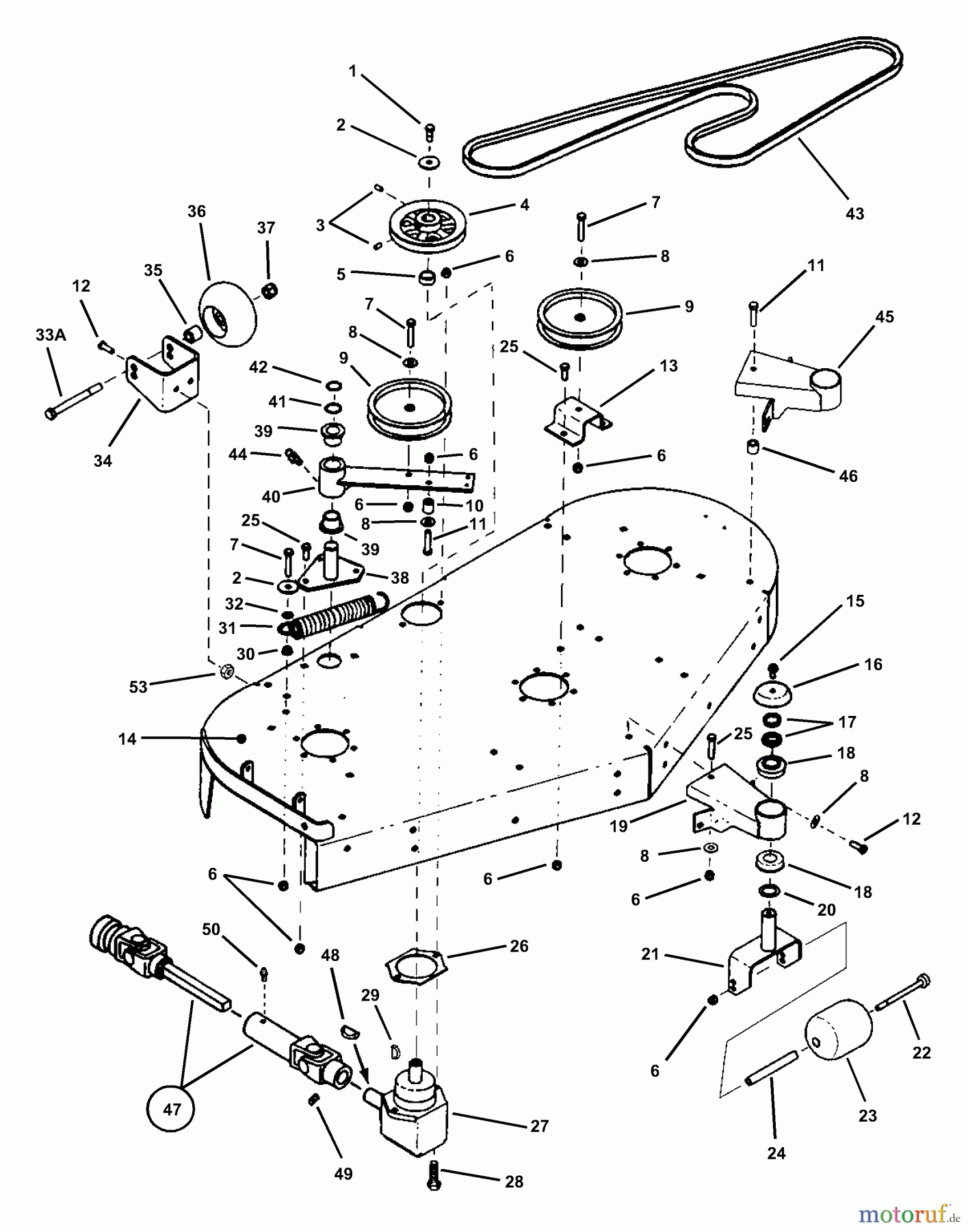

Snapper ZM6101M - 61" Deck, Mid Mount Z-Rider, Series 1 Deck, Idlers, Rollers (Part 1) Ricambi

Name: MATSUI DRIVESHAFT KIT
Price: 526.24 EUR

MATSUI DRIVESHAFT KIT

Articolo numero:

BS7063327YP

Posizione:

526.24 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Posizione	Articolo numero	Descrizione
1	BS7091899YP	(C) HHCS, 3/8F X1 GR5
2	BS7091331SM	U.-SCHEIBE.406X1.5X.120 YZ
3	BS1930540SM	SCHRAUBENSATZ SQ HD CUP P
4	BS7074466YP	PULLEY, CAST 5.25OD
5	BS7035668YP	(C) SPACER, 1.125OD X
6	BS703117	MUTTER
7	BS7091305SM	HHCS, 3/8C X2 GR5 YZ
8	BS7090517SM	FW, .438X1X.084 YZ
9	BS7035789YP	PULLEY, IDLER 5.5 OD
10	BS7035858YP	(C) SPACER, .750 OD X
11	BS1921971SM	KOPFSCHRAUBE, SECHSK. HD 3/8
12	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
13	BS7036449YP	(C) STAND, FIXED IDLE
14	BS7043847
15	BS703228	SCHRAUBE, 5/16-18 X .75
16	BS7036578YP	CAP, CASTER SHAFT
17	BS7028641YP	SPACER, ELEC CL
18	BS7044892YP	(C) BEARING, RADIAL 1
19	BS7044643YP	(C) WELD, BRKT, GAUGE
20	BS7023747YP	BUSHING, MACH, 1
21	BS7044646YP	CASTER, GAUGE WHEEL
22	BS7091617YP	HHCS, 3/8C X6 GR5 YZ
23	BS7079868YP	(C) ROLLER, 3-3/4 D.X
24	BS7079882YP	(C) BUSHING
25	BS703814	BOLT, RD HD, 3/8-16X1
26	BS7036455YP	(C) SHIM, GEARBOX
27	BS7058342YP	GEARBOX, RIGHT ANGLE
28	BS703871	KOPFSCHRAUBE,3/8-16X1.25
29	BS7010008YP	KEY, WOODRUFF, 5/32X5
30	BS703333	MUTTER, 3/8-16
31	BS7035667YP	(C) SPRING, EXTENSION
32	BS703986	RETAINER, PUSHNUT,3/8
33A	BS703886	CAPSCREW, 1/2-13X5
34	BS7036457YP	(C) BRKT, GAUGE WHEEL
35	BS7036456YP	SPACER, YZ
36	BS1700184SM	RAD - 2.60 BREIT 4.9
37	BS7091325YP	HLN, NYLON, 1/2C YZ
38	BS7041295YP	(C) WELD, IDLER PIVOT
39	BS7023556YP	BUSHING, CASTER
40	BS7042619YP	(C) WELD, IDLER ARM,
41	BS7032031YP	FW, 1.031X1.25X.03
42	BS7012709YP	RETAINING RING, 1" OD
43	BS7035542YP	(C) BELT, HB 134.5EL
44	BS703153	ZERK,GREASE FITTING
45	BS7041821YP	(C) WELD, GAUGE WHEEL
46	BS7044752YP	SPACER, YZ
47	BS7063327YP	MATSUI DRIVESHAFT KIT
48	BS7010211YP	FEDERKEIL, #9
49	BS7090132YP	HRSS, 3/8C X3/8 GR5
50	BS7076998
53	BS703347	MUTTER, 3/8-16
