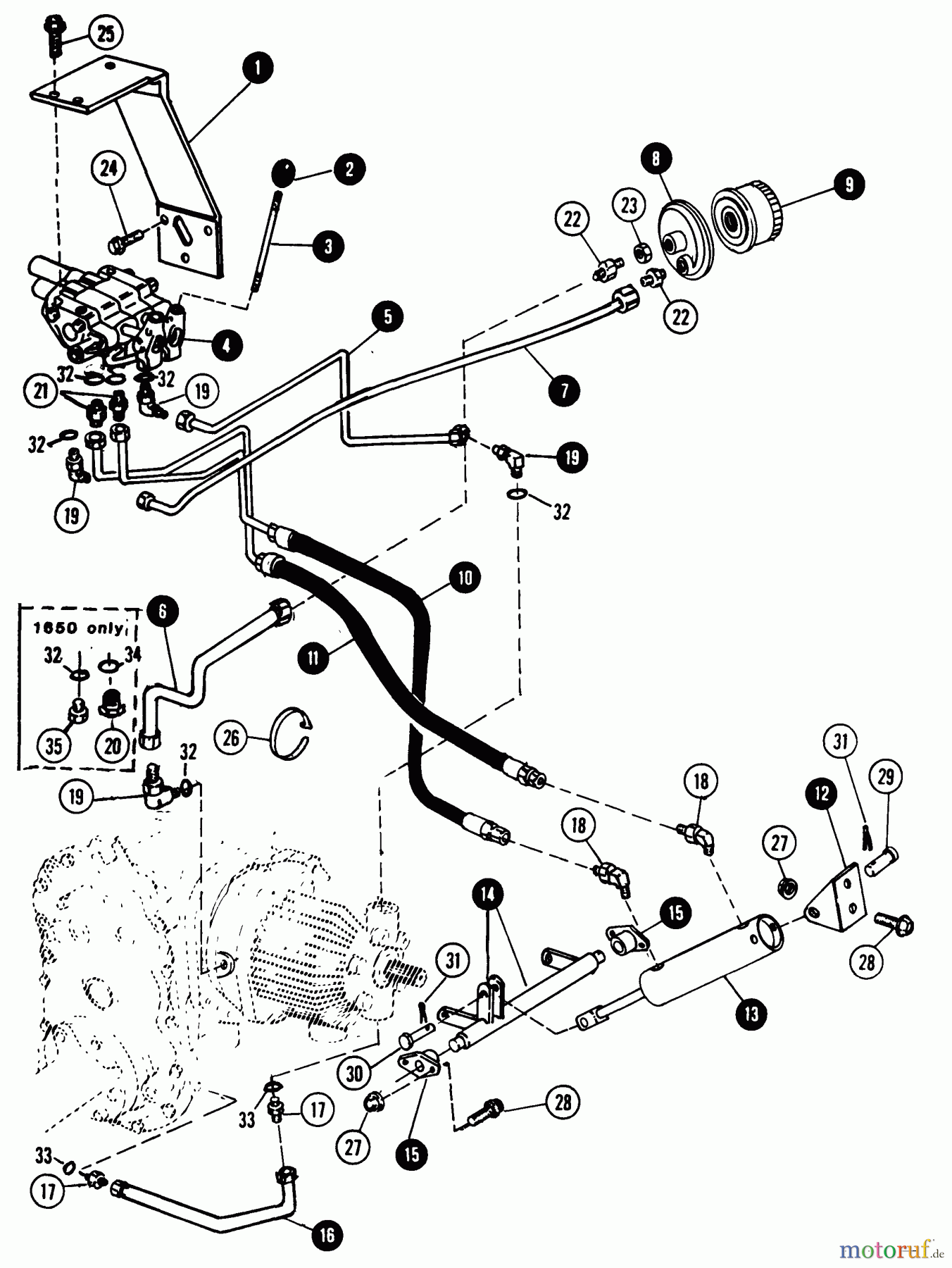

Snapper 1650 (80424) - 16 HP Garden Tractor, Hydro Drive, MF Series Hydraulic Lift System (Mid-Mount) Ricambi
Articolo numero:
BS7013906
Posizione:
32
non più disponibile
| Posizione | Articolo numero | Descrizione | |
| 1 | BS49839 | ||
| 2 | BS7018271YP | KNOB BALL, 5/16-18 | |
| 3 | BS7027525YP | HANDLE | |
| 4 | BS7019870 | ||
| 5 | BS19873 | ||
| 6 | BS19646 | ||
| 7 | BS19648 | ||
| 8 | BS7018335YP | BASE, FILTER | |
| 9 | BS7018334 | ||
| 10 | BS19871 | ||
| 11 | BS19872 | ||
| 12 | BS7039676 | ||
| 13 | BS7019565 | ||
| 14 | BS49842 | ||
| 15 | BS18277 | ||
| 16 | BS19866 | ||
| 17 | BS12767 | ||
| 18 | BS7012785 | ||
| 19 | BS12764 | ||
| 20 | BS12771 | ||
| 21 | BS12773 | ||
| 22 | BS12753 | ||
| 23 | BS7090283YP | HJN, 3/4F ZP | |
| 24 | BS7090620YP | HFLB, 3/8C X7/8 ZP | |
| 25 | BS7090661YP | HFLB, 5/16C X1 ZP | |
| 26 | BS7018332YP | STRAP, HOSE | |
| 27 | BS703333 | MUTTER, 3/8-16 | |
| 28 | BS7027198YP | (C) HFLB, 3/8C X1 YZ | |
| 29 | BS7012756 | ||
| 30 | BS7012751YP | CLEVIS PIN, 1/2X1-7/8 | |
| 31 | BS7091598SM | COTTER PIN, 1/8X3/4 Y | |
| 32 | BS7013906 | ||
| 33 | BS13908 | ||
| 34 | BS13907 | ||
| 35 | BS12772 | ||
