Snapper CSLT23460 (7800344) - 46" Lawn Tractor, 23HP, LT100 Series Motion Drive Group Ricambi

Name: NUT, CNTR LCK, 3/8-16
Price: 5.37 EUR

NUT, CNTR LCK, 3/8-16

Articolo numero:

BS703893

Posizione:

5.37 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

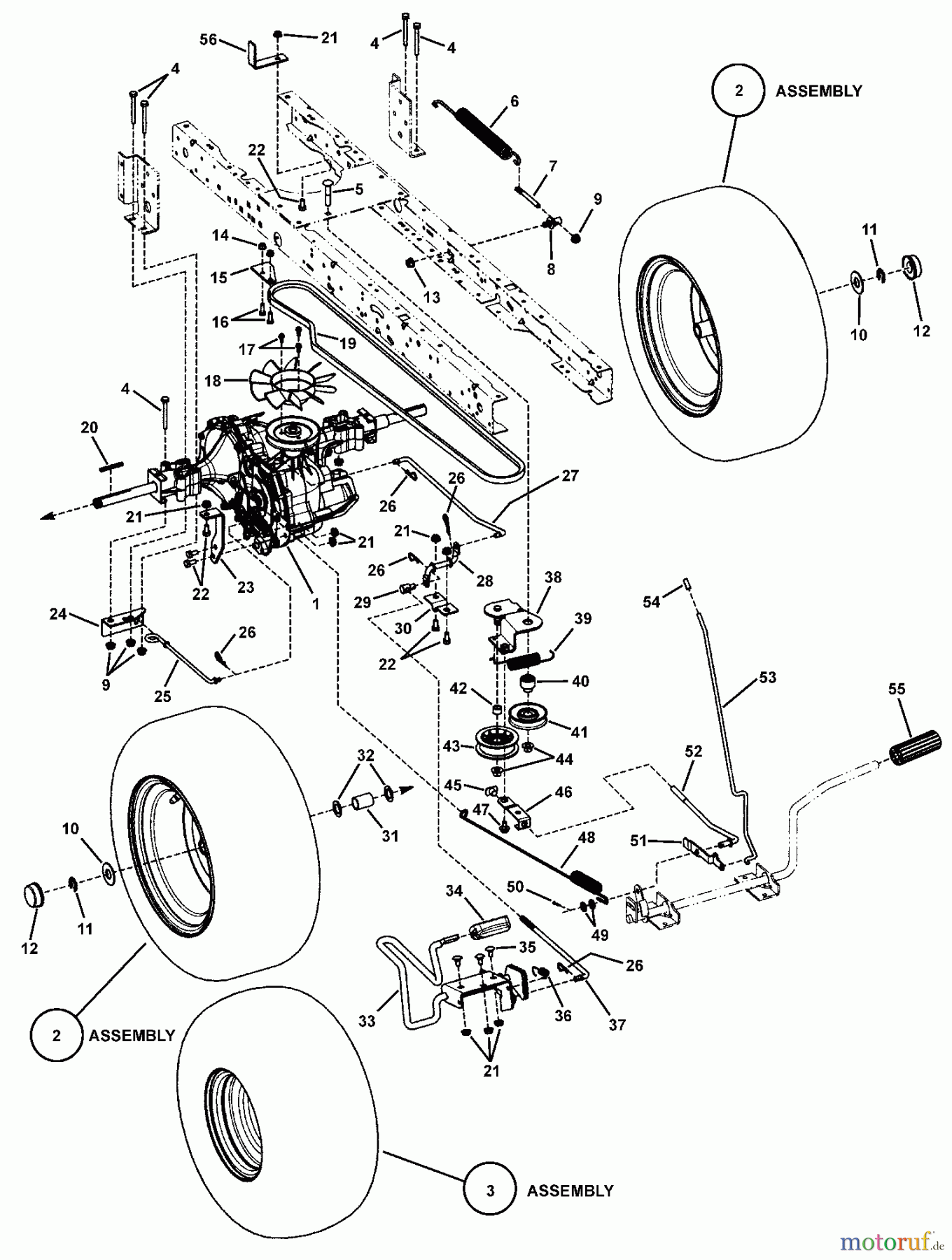

Snapper Rasen- und Gartentraktoren CSLT23460 (7800344) - Snapper 46

Posizione	Articolo numero	Descrizione
1	BS7101669YP	TRANSAXLE
1	BS7101669
2	BS7101569YP	ASSY, WHEEL & TIRE
	BS7101568YP	REIFEN, 22X9.50-12 2 PL
	BS7101567YP	RAD, 12X7 INT W/3.5
	BS7012234SM	VALVE STEM
3	BS7101563YP	ASSY, WHEEL & TIRE
	BS7101562YP	REIFEN, 20X10-8 2PLY K3
	BS7101558YP	RAD, 8X7
4	BS01X155MA	SECHSKANTBOLZEN.31-18X2.50 P
5	BS002X92MA	BOLT - CARRIAGE
6	BS165X133MA	ZUGFEDER (LIF
7	BS094042ZMA	STUD - SPRING MTG.
8	BS690182MA	STUD - SWIVEL
9	BS015X88MA	NUT,CENTERLOCK Z .3
10	BS17X195MA	WASHER - FLAT
11	BS0011X3MA	RING,E .750D .050T
12	BS094618MA	RADKAPPE
13	BS703893	NUT, CNTR LCK, 3/8-16
14	BS2860694SM
15	BS7300888ZYP	PLATTE, VORLAUF STOP
16	BS703925	CAPSCREW, 1/4-20X.75
17	BS7900057YP	SCHRAUBE,12-24X.50 HWS
18	BS7101653YP	LUFTER, 7", 10 FLUGEL
19	BS7035500YP	BELT, DUAL SPINDLE BR
20	BS021553MA	SQUARE KEY- 3/16
21	BS703409	MUTTER, 5/16-18, GR5
22	BS001X45MA	SECHSKANTBOLZEN.31 18X0.62 Z
23	BS7300684BMYP	BRKT, TORQUE, HYDRO
24	BS7300701BMYP	BRKT, ROLL RELEASE
25	BS7101542YP	HEBELARM
26	BS1960074SM	CLIP, HAIR PIN .093DI
27	BS7101453YP	GESTANGE,RUCKFAHR
28	BS7102053YP	ROD, PIVOT DRIVE
29	BS7046451YP	SWIVEL, ADJUSTMENT
30	BS7300682Z
31	BS7200130YP	DISTANZRING, ACHSE GELB
32	BS17X160MA	UNTERLEGSCHEIBE.76-1.2 16G FL
33	BS7400248BMYP	FU?STEUERUNG
34	BS1721675SM	PAD-FOOT PEDAL F
35	BS002X53MA	SCHLOSSSCHRAUBE .31-18 X 0.
36	BS165X168MA	FEDERHEBEL
37	BS7101454YP	ROD, FRONT DRIVE
38	BS7500602ZYP	STUTZE, SPANNROLLENARM KOMPL.
39	BS165X155MA	ZUGFEDER CTRL
40	BS1001012MA	PIVOT BUSHING
41	BS690410MA	UMLENKROLLE - 3.0 DI
42	BS690369MA	DISTANZSTUCK 1/2" TO 17 MM
43	BS690409MA	IDLER PULLEY - 2.75 D
44	BS015X98MA	NUT.38-16 FLANGELOCK
45	BS1001014MA	NUT - TEE
46	BS7300934YP	KULISSE, KUPPL.
47	BS009X54MA	BOLT-SHD.25-20X.375D
48	BS7101801YP	SPRING, HYDRO BRAKE
49	BS017X48MA	WASHER.39.75 13G FLT
50	BS030X20MA	PIN-COTTER.09D-.750L
51	BS7300940YP	SPERRE - PARKBREMSE
52	BS7101489YP	GESTANGE, KUPPLUNG
53	BS7101455YP	ROD, PARKING BRAKE
54	BS091079MA	GRIP-BLACK .207 ID X
55	BS021544MA	KUPPLUNGS & BREMSPEDAL
56	BS7300960
