Snapper GT180H484K (80241) - 48" Garden Tractor, 18 HP, Hydro Drive, Series 4 48" Cutting Deck, Belts, Pulleys (Cable Hung) Ricambi

Name: IDLER ARM
Price: 90.91 EUR

IDLER ARM

Articolo numero:

BS7051475YP

Posizione:

90.91 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

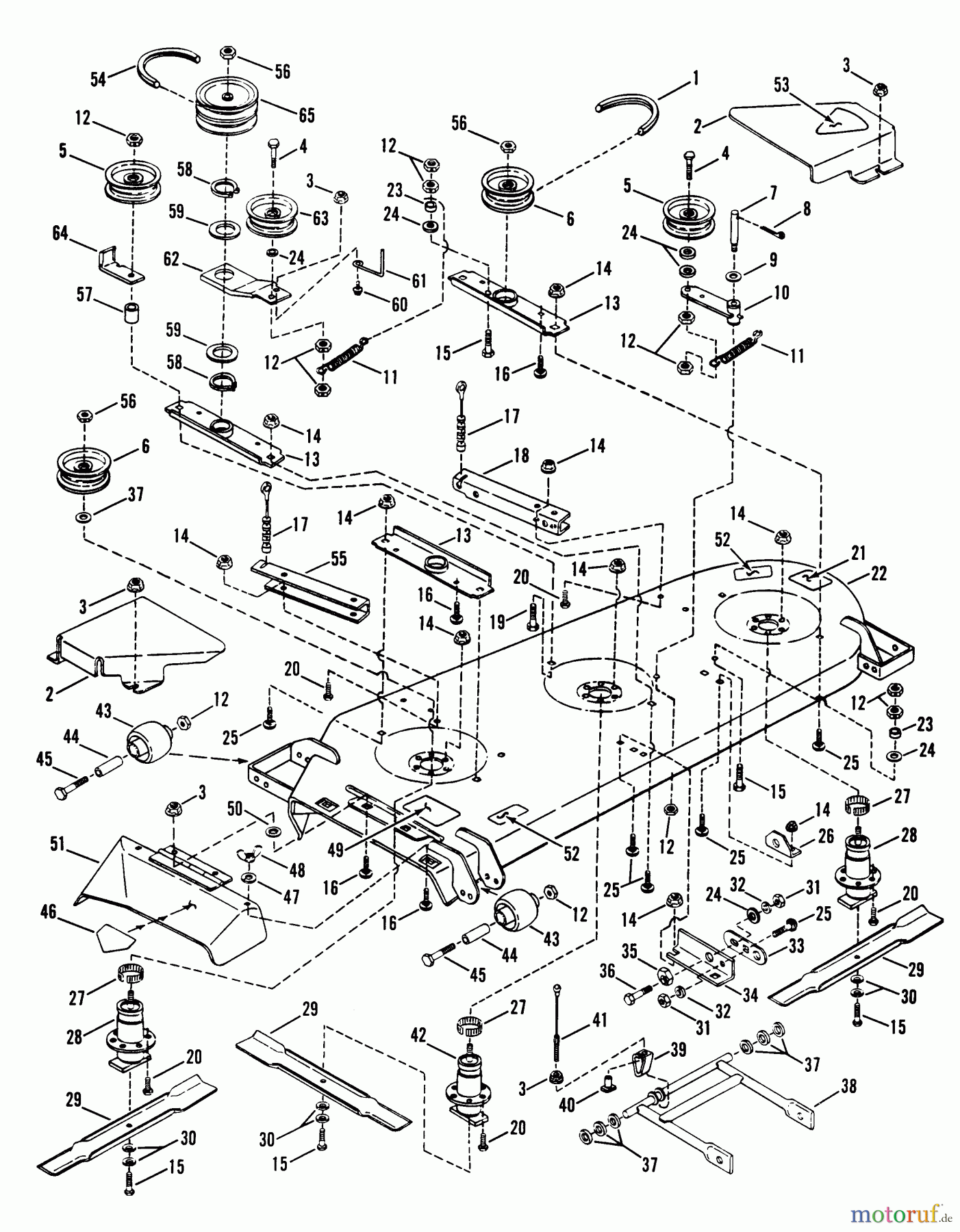

Snapper Rasen- und Gartentraktoren GT180H484K (80241) - Snapper 48

Posizione	Articolo numero	Descrizione
	BS7061846
1	BS7024497YP	V-BELT, 42"/48"" RER
2	BS7035054YP	COVER, BELT, 48
3	BS703409	MUTTER, 5/16-18, GR5
4	BS703999	CAPSCREW, 3/8-24X2
5	BS7018651YP	PULLEY, IDLER
6	BS7014544SM	PULLEY, 4.75 O.D.
7	BS7035816YP	STUD, IDLER, YELLOW
8	BS7091598SM	COTTER PIN, 1/8X3/4 Y
9	BS7090183YP	FW, .656X1.312X.094
10	BS7051475YP	IDLER ARM
11	BS7014513YP	FEDER, RIEMENSCHEIBE
12	BS703458	MUTTER, 3/8-24
13	BS7038078YP	BRACE, SPINDLE
14	BS703333	MUTTER, 3/8-16
15	BS7090824YP	SCREW, 3/8-24 X 1-1/4
16	BS7090799SM	RHSSNB, 5/16C X5/8 GR
17	BS7016845YP	CABLE, DECK HANGER
18	BS7033118YP	SUPPORT, DECK, 48L
19	BS7090169YP	HHCS, 3/8F X2-1/2 GR5
20	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
21	BS7014852YP	DECAL, CAUTION
22	BS7049961
23	BS7014527YP	DISTANZHULSE, 5/8X1/4
24	BS703878	WASHER, FLAT
25	BS703448	BOLZEN, 3/8-16X.75 G5
26	BS7032297YP	BRKT, FRONT HANGER
27	BS7012670YP	TOLERANCE RING
28	BS7051473YP	SPINDLE / LUBE ASMY
29	BS7019733BMYP	BLADE, MOWER BLADE, 1
30	BS703963	WASHER, CONE
31	BS7091302SM	HN, 3/8C GR5 YZ
32	BS703454	LOCKWASHER, SPLIT 3/8
33	BS7032432YP	LINK, ADJUSTMENT
34	BS7038181YP	BRKT, FRONT, RH
35	BS7015012YP	RING, ADJUSTMENT, PM,
36	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
37	BS7010935SM	FW, .77X1.13X.06
38	BS7049724YP	WELD, FRONT LIFT ARM
39	BS7038043YP	HANGER, FRONT, YELLOW
40	BS7090388YP	T-NUT, 5/16C
41	BS7015629
42	BS7051528YP	SPINDLE / LUBE FITTIN
43	BS7019190YP	BEGRENZUNGSRAD
44	BS7015272YP	BUCHSE
45	BS703876	CAPSCREW,3/8-2X3.75
46	BS7013010SM	DECAL-DANGER, CUT FIN
47	BS7090187SM	SLW, .318X.583X.078 Z
48	BS7091537YP	WLN, 5/16C YZ
49	BS7014852
50	BS703297	RETAINER, GR5, 5/16
51	BS7051401YP	CHUTE / DECAL ASSY, 4
52	BS7012929YP	FOOTPAD, WALK
53	BS7024431YP	DECAL, 48"DECK
54	BS7014801YP	ANTRIEBSRIEMEN, A92
55	BS7033119YP	SUPPORT, DECK, 48R
56	BS7090820YP	HCLJN, 3/4F ZP
57	BS7016050YP	ADAPTER HINTEN
58	BS7010740YP	SICHERUNGSRING
59	BS7014795YP	WASHER, NYLON
60	BS703185	RHSSNB
61	BS7014410YP	ANTRIEBSR. SCHUTZ
62	BS7038156YP	ARM, IDLER
63	BS7023966YP	PULLEY, IDLER, 4
64	BS7032368YP	BELT GUIDE, CLEAR
65	BS7014545YP	RIEMENSCHEIBE, DOPP. LAUFRILLE
