Snapper GT2354 (1694370) - 54" Garden Tractor, 23 HP, Hydro Drive Transmission Service Parts - Tuff Torq K-71E without Diff Lock Ricambi

Name: (TT) BREMSANSCHLAG
Price: 31.92 EUR

(TT) BREMSANSCHLAG

Articolo numero:

BS1721188SM

Posizione:

117

31.92 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

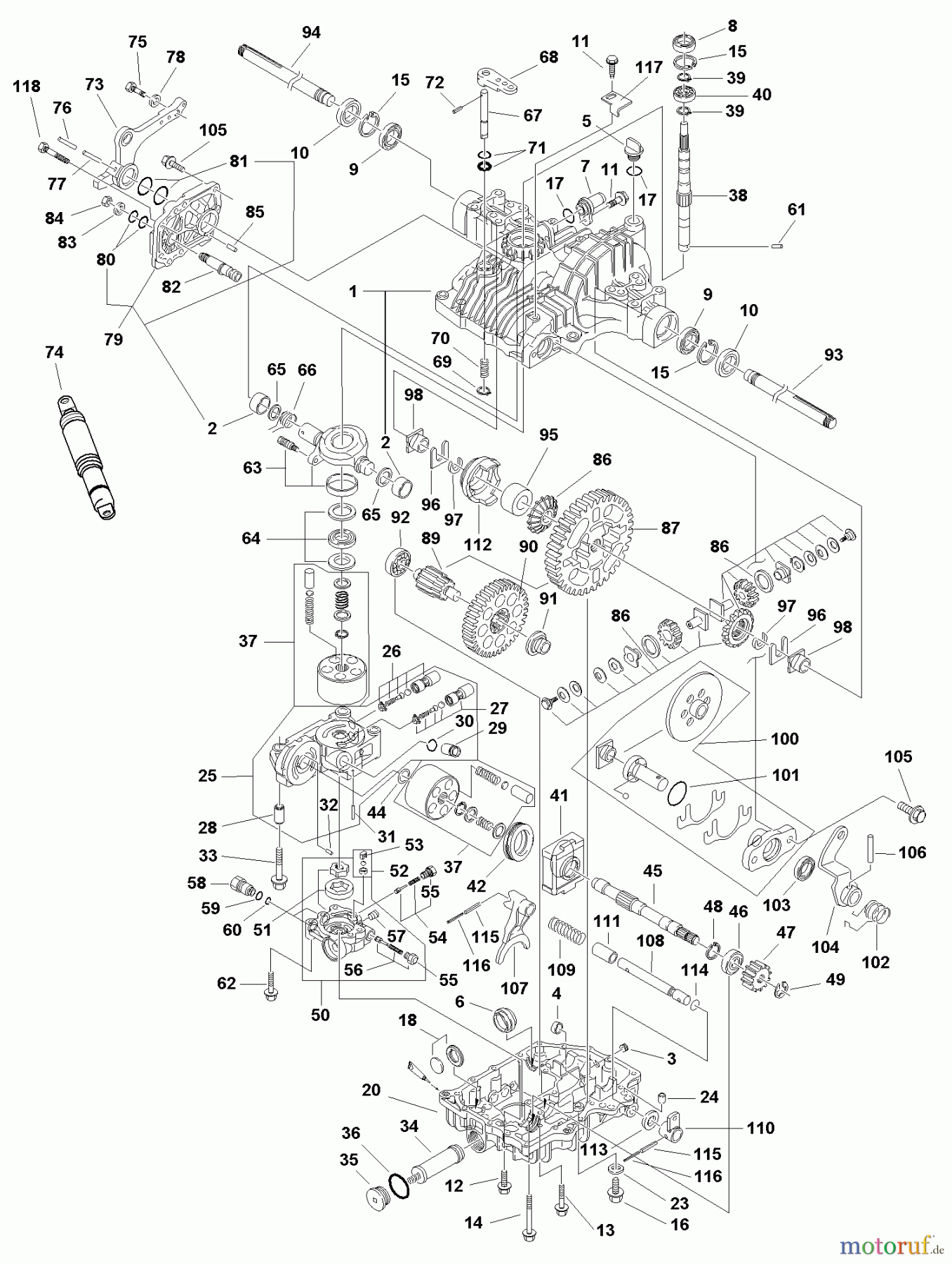

Snapper Rasen- und Gartentraktoren GT2354 (1694370) - Snapper 54

Posizione	Articolo numero	Descrizione
1	BS1723764
2	BS1720757SM
3	BS1720758SM	(TT) TAPER PLUG 1/8
4	BS1720759SM
5	BS1720760SM	OLDECKEL
6	BS1720761SM	(TT) FILTER (25)
7	BS1720762SM	(TT) FITTING (1A637
8	BS1720782SM	(TT) SEAL 192167-
9	BS1720783SM
10	BS1720784SM
11	BS1720785SM	(TT) TAPPING SCREW
12	BS1707789SM	SCREW-TAPPING 26476
13	BS1720786
14	BS1718226SM	(TT) BOLT 8 X 75
15	BS1720787SM	(TT) RING 47 222
16	BS1720788SM	(TT) BOLT 10X12 2
17	BS1707786SM	PACKING 24311-000
18	BS1718065SM	(TT) MAGNET K56 TR
20	BS1723765
23	BS1720796SM	(TT) WASHER SEAL 10
24	BS1720797
25	BS1720798
26	BS1720799
27	BS1720800
28	BS1720801SM
29	BS1720802
30	BS1720803
31	BS1720804
32	BS7073784YP	(TT) PIN (3*9.8)
33	BS1720805SM	BOLZEN 10X75 26106
34	BS1687472YP	KIT, OIL FILTER
35	BS1720807SM	(TT) CAP (M40) 1A
36	BS1720808SM	(TT) PACKING 1A 2040
37	BS1720809
38	BS1723782SM	(TT) PUMP SHAFT 1A
39	BS1720811SM	(TT) RING,17 192
40	BS1720812SM	BEARING 6303 24
41	BS1720813
42	BS1720814SM	(TT) BEARING 51207
44	BS1720817
45	BS1720818
46	BS1720819
47	BS1720820
48	BS1720821
49	BS7073756YP	RING E 15, TT # 19215
50	BS1720822
51	BS1720823
52	BS1720824
53	BS1720825
54	BS1720826
55	BS1720827
56	BS1720828
57	BS1708665SM
58	BS1720829SM	(TT) CONNECTOR 1A
59	BS1723773SM	(TT) O-RING A163
60	BS1720831
61	BS1720832
62	BS1720833
63	BS1723781
64	BS1720835
65	BS1720836SM
66	BS1720837
67	BS1720838
68	BS1720839SM
69	BS7073787YP	(TT) RING 10
70	BS1708684
71	BS7073793YP	(TT) PACKING P 10A 24
72	BS1707839SM	SPANNSTIFT 22351-03
73	BS1720840
74	BS1718039SM	(TT) SHOCK ABSORBER
75	BS1720841
76	BS1720842
77	BS1720843
78	BS1720844
79	BS1723785SM	DECAL-STRIPE BLUE & S
80	BS1707879SM	VERPACKUNG 24311-00014
81	BS1720846
82	BS1720847
83	BS1708689SM	WASHER 22137-12000
84	BS1708692SM	NUT 12 26776-120002
85	BS1720848
86	BS1723796
87	BS1720850
89	BS1720851
90	BS1720852
91	BS1720853
92	BS1720854
93	BS1720855
94	BS1720856
95	BS1720857
96	BS1720858SM	(TT) THRUST WASHER
97	BS1720859
98	BS1720860
100	BS1720862
101	BS1720863
102	BS1720864
103	BS1720865
104	BS1720866SM
105	BS1720867
106	BS1718100SM	PIN 6.0A X 4.0 K
107	BS1720794
108	BS1723783SM
109	BS1720792
110	BS1720868SM
111	BS1720869
112	BS1720870SM
113	BS1720871
114	BS1720872
115	BS1707840SM
116	BS1707834SM
117	BS1721188SM	(TT) BREMSANSCHLAG
118	BS1723769
