Snapper GT2354 (2690069) - 54" Garden Tractor, 23 HP, Hydro Drive 54" Mower Deck - Housing, Arbors & Blade Group Ricambi

Name: SCHEIBE - 0.438(0.451IDX1
Price: 8.93 EUR

SCHEIBE - 0.438(0.451IDX1

Articolo numero:

BS1933263SM

Posizione:

8.93 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

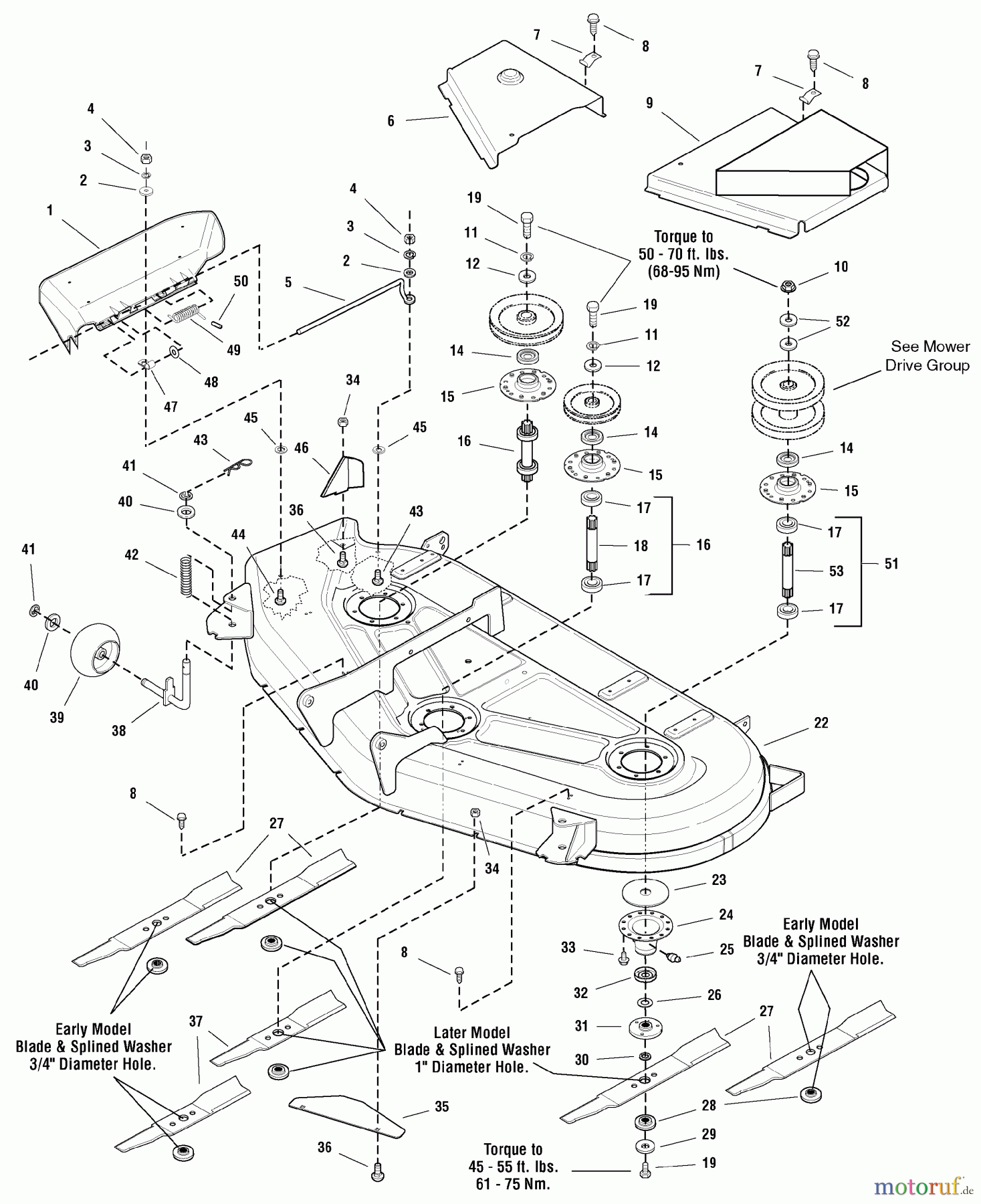

Snapper Rasen- und Gartentraktoren GT2354 (2690069) - Snapper 54

Posizione	Articolo numero	Descrizione
1	BS1705449SM	DEFLEKTOR, SCHWARZ
2	BS1960353SM	ABZIEHER-SCHEIBE
3	BS1916964SM	SICHERUNGSSCHEIBE, FEDER
4	BS703127	MUTTER
5	BS1706709SM	STECKACHSE-.283DIA 11.65LG D
6	BS1720184DSM	COVER ARBOR
7	BS1720623A
8	BS1927428SM	SCREW, HEX WSHR
9	BS1720621D
10	BS1714419SM	BUNDMUTTER 9/16-1
11	BS704007	LCKWSHR,7/16,SPLIT RE
12	BS1933263SM	SCHEIBE - 0.438(0.451IDX1
13	BS1720183ASM	HUB & PULLEYS AS-BLAC
14	BS1657969SM	LAGERSCHILD, MAHER
15	BS1655729ASM	SPINDELGEHAUSE OBEN - B
16	BS1676278SM	WELLE & LAGER
17	BS2108202SM	BEARING, BALL
18	BS1676277SM	SHAFT-SPLINE 1.0
19	BS703579	HHCS, 7/16-14X1.25
20	BS1679161SM	PULLEY & HUB ASM-PLAI
21	BS1720182ASM	PULLEY & HUB ASM-BLAC
22	BS1686807D
23	BS1707335SM	FORMDICHTUNG POLY
24	BS1703273ASM	GEHAUSE & BEF. KOMPL.
25	BS1704314SM	SCHMIERNIPPEL 250 DR
26	BS1700230SM	AUSGLEICHSCHEIBE .75 0.7
27	BS1687017SM	BLADE REPL KIT FOR 17
27	BS1736043AYP	BLADE, MOWER 20.56"
28	BS1656927SM	PROFILSCHEIBE
28	BS1679711SM	PROFILSCHEIBE 6134IDX2.
29	BS1656916SM	WASHER, SPRING 0.475I
30	BS1657528SM	RING, RETAINER
31	BS1655777SM	MESSERADAPTER
32	BS1700229A
33	BS703228	SCHRAUBE, 5/16-18 X .75
34	BS1919438SM
35	BS1720962ASM	TRENNWAND VORN
36	BS703185	RHSSNB
37	BS1722090A
37	BS1736044AYP	BLADE-MOWER 16.00LG
38	BS1720497A
39	BS1716353SM	GAUGE WHEEL-2.70
40	BS1960020SM	SCHEIBE-0.625(0.65IDX1
41	BS1703805SM	LAGERRING
42	BS1716346SM	SPRING-COMP 0.85
43	BS1960033SM	SICHERUNGSSPLINT .125
44	BS1931318SM	BOLZEN
45	BS703826	BOLT, PUSHNUT 1/4
46	BS1724976ASM	TRENNWAND VORN
47	BS1704873SM	KABELKLEMME 312DIA
48	BS1921319SM	ABZIEHER-SCHEIBE
49	BS1723938SM	FEDER, TORISION
50	BS1723323SM	KAPPE VINYL
51	BS1726825SM	ARBOR SHAFT & BEARING
52	BS1713675SM	UNTERLAGSCHEIBE-BLLVLL 0.56IDX
53	BS1725812SM	SHAFT-SPLINE 1.000 OD
