Snapper LT120D331B - 33" Lawn Tractor, 12 HP, Disc Drive, Series 1 Cutting Deck - 33", Belts, Brakes Ricambi

Name: PIN, COTTER, 3/32X.75
Price: 4.47 EUR

PIN, COTTER, 3/32X.75

Articolo numero:

BS703312

Posizione:

4.47 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

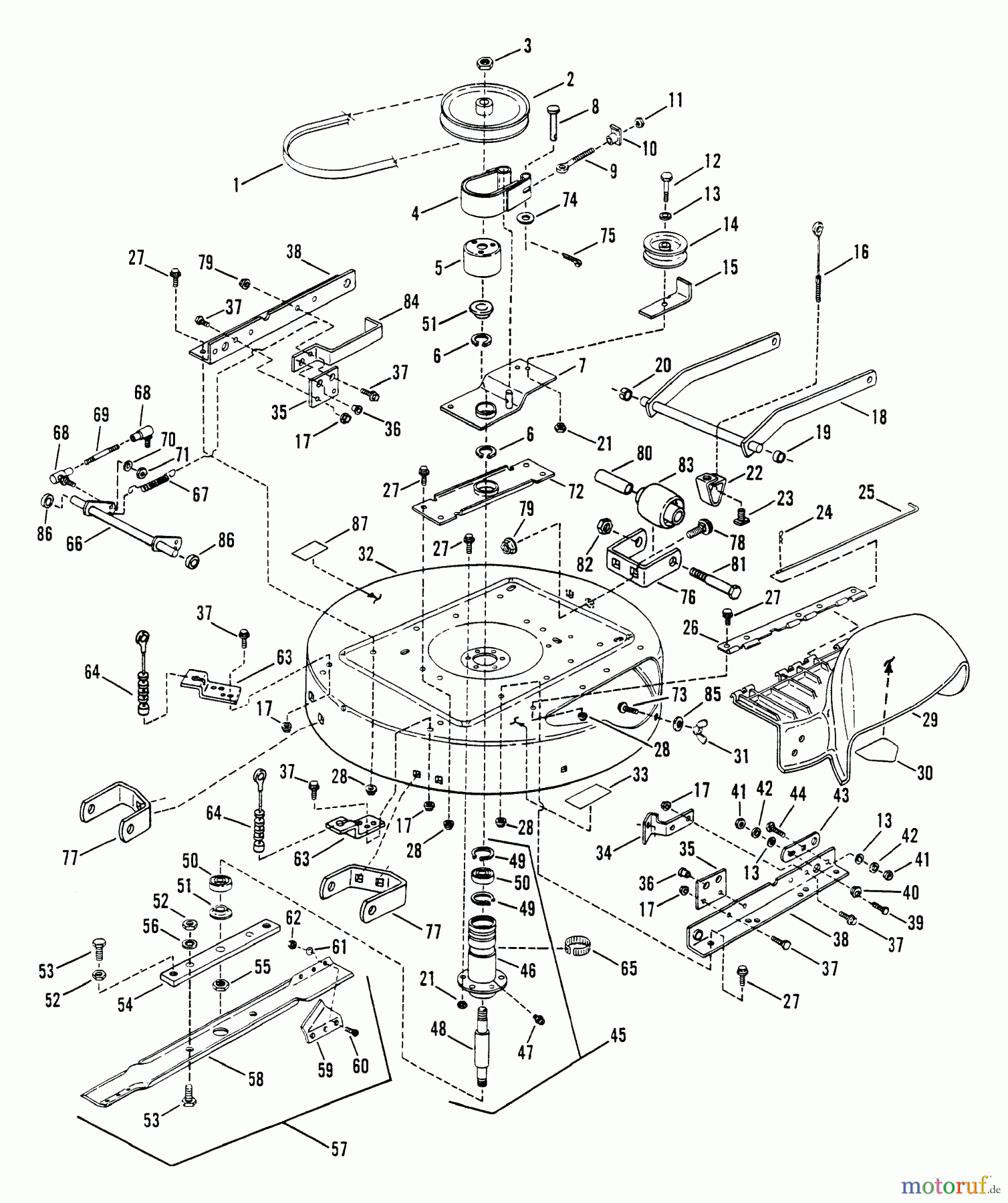

Snapper Rasen- und Gartentraktoren LT120D331B - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS7023710YP	V-BELT
2	BS7018581YP	PULLEY, 8
3	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
4	BS7052886YP	BRAKE BAND ASMY
5	BS7035378YP	BREMSTROMMEL
6	BS7010740YP	SICHERUNGSRING
7	BS7047961YP	BRAKE ARM
8	BS7014304YP	LAGERBOLZEN, 1/4X1-5/8
9	BS7014302YP	RINGSCHRAUBE
10	BS7014303YP	T-MUTTER 1/4 C
11	BS703127	MUTTER
12	BS7090164YP	HHCS, 3/8F X1-1/2 GR5
13	BS703878	WASHER, FLAT
14	BS7018574SM	SPANNROLLE FLACH 4.12
15	BS7032368YP	BELT GUIDE, CLEAR
16	BS7023180YP	CABLE, LIFT
17	BS703409	MUTTER, 5/16-18, GR5
18	BS7047959YP	WELD, LIFT ARM
19	BS7012067YP	RING, HEBEARM VORN
20	BS7023791YP	RING, SPLIT
21	BS703458	MUTTER, 3/8-24
22	BS7038043YP	HANGER, FRONT, YELLOW
23	BS7090388YP	T-NUT, 5/16C
24	BS703300	PIN, 3/32 X 1.6
25	BS7032323YP	PIN, HINGE, BLACK
26	BS7039586YP	CHUTE, HINGE SIDE
27	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
28	BS703333	MUTTER, 3/8-16
29	BS7052555YP	ABLAUF SCHACHT KOMPL.
30	BS7013010SM	DECAL-DANGER, CUT FIN
31	BS7091537YP	WLN, 5/16C YZ
32	BS7061972YP	33" REPLACEDECK KIT
33	BS7014852YP	DECAL, CAUTION
34	BS7038455YP	ANCHOR, BRAKE #
35	BS7032803YP	BRKT, CROSS SHAFT
36	BS7011016YP	LAGER, NYLON
37	BS7090721YP	CPSCW, LAG 5/16 X 1/2
38	BS7038453YP	RAIL, 33 LT
39	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
40	BS7015012YP	RING, ADJUSTMENT, PM,
41	BS7091302SM	HN, 3/8C GR5 YZ
42	BS703454	LOCKWASHER, SPLIT 3/8
43	BS7032432YP	LINK, ADJUSTMENT
44	BS703448	BOLZEN, 3/8-16X.75 G5
45	BS7059784YP	SPINDLE ASMY, LT 33
50	BS7013313SM	SPINDELLAGER
51	BS7014407SM	WASHER, SPINDLE, PM
52	BS703903	NUT, HEX, 1/2-20
46	BS7052294YP	SPINDELWELLE
47	BS7010817SM	SCHMIERNIPPEL
48	BS7027711YP	SPINDLE, 33 LTF
49	BS7012491SM	HALTERING EXT
53	BS703880	KOPFSCHRAUBE, 1/2-20X1
54	BS7037751BMYP	HOLDER, BLADE
55	BS7090356YP	MUTTER
56	BS7090509YP	ZAHNSCHEIBE
58	BS7019523BZYP	BLADE, 33
58	BS7024741AYP	BLADE, 33" NINJA
58	BS7016982
59	BS7037723BMYP	AIR LIFT ECOAT
60	BS7090228SM	SCHRAUBE, 5/16F
61	BS703587	WASHER, 5/16
62	BS703331	MUTTER, 5/16-24
63	BS7033115YP	SUPPORT, DECK
64	BS7016844YP	CABLE, DECK HANGER
65	BS7012670YP	TOLERANCE RING
66	BS7047960YP
67	BS7028652YP	SPRING, IDLER RETURN
68	BS7015753YP	BALL JOINT
69	BS7023687YP	LINK
70	BS703462	U.-SCHEIBE, 1/4
71	BS7090095YP	NUT, HEX, 1/4
72	BS7038018AYP	STREBE, SPINDEL
73	BS703185	RHSSNB
74	BS7091294
75	BS703312	PIN, COTTER, 3/32X.75
76	BS7033570BMYP	HALTER VORN
77	BS7033571BMYP	HALTER ANTI-SCALP, SEITLICH
78	BS703798	BOLT, 5/16-18X0.50
79	BS7091601
80	BS7015272YP	BUCHSE
81	BS703876	CAPSCREW,3/8-2X3.75
82	BS7090289
83	BS7019190YP	BEGRENZUNGSRAD
84	BS7033352YP	BELT GUIDE
85	BS703350	U-SCHEIBE, 5/16
86	BS7020908YP	ROLLER
87	BS7014852
	BS7060993
