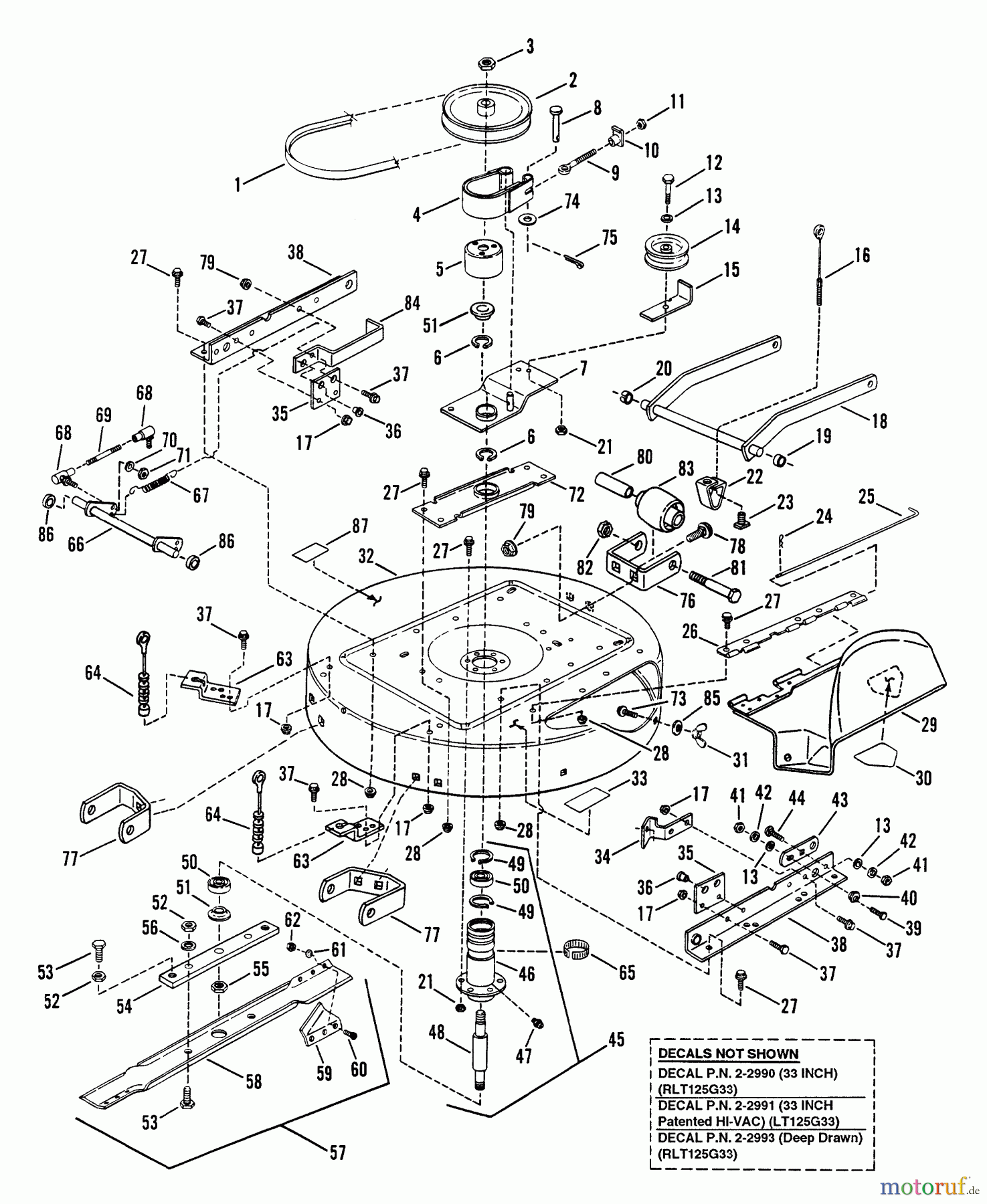

Snapper Rasen- und Gartentraktoren LT125G331KVE - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS7023710YP	V-BELT
2	BS7018581YP	PULLEY, 8
3	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
4	BS7052886YP	BRAKE BAND ASMY
5	BS7035378YP	BREMSTROMMEL
6	BS7010740YP	SICHERUNGSRING
7	BS7047961YP	BRAKE ARM
8	BS7014304YP	LAGERBOLZEN, 1/4X1-5/8
9	BS7014302YP	RINGSCHRAUBE
10	BS7014303YP	T-MUTTER 1/4 C
11	BS703127	MUTTER
12	BS7090164YP	HHCS, 3/8F X1-1/2 GR5
13	BS703878	WASHER, FLAT
14	BS7018574SM	SPANNROLLE FLACH 4.12
15	BS7032368YP	BELT GUIDE, CLEAR
16	BS7023180YP	CABLE, LIFT
17	BS703409	MUTTER, 5/16-18, GR5
18	BS7047959YP	WELD, LIFT ARM
19	BS7012067YP	RING, HEBEARM VORN
20	BS7023791YP	RING, SPLIT
21	BS703458	MUTTER, 3/8-24
22	BS7038043YP	HANGER, FRONT, YELLOW
23	BS7090388YP	T-NUT, 5/16C
24	BS703300	PIN, 3/32 X 1.6
25	BS7032323YP	PIN, HINGE, BLACK
26	BS7039586YP	CHUTE, HINGE SIDE
27	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
28	BS703333	MUTTER, 3/8-16
29	BS7052555YP	ABLAUF SCHACHT KOMPL.
30	BS7013010SM	DECAL-DANGER, CUT FIN
31	BS7091537YP	WLN, 5/16C YZ
32	BS7061956YP	33" REPLACE DECK KIT
33	BS7014852YP	DECAL, CAUTION
34	BS7038455YP	ANCHOR, BRAKE #
35	BS7032803YP	BRKT, CROSS SHAFT
36	BS7011016YP	LAGER, NYLON
37	BS7090721YP	CPSCW, LAG 5/16 X 1/2
38	BS7038453YP	RAIL, 33 LT
39	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
40	BS7015012YP	RING, ADJUSTMENT, PM,
41	BS7091302SM	HN, 3/8C GR5 YZ
42	BS703454	LOCKWASHER, SPLIT 3/8
43	BS7032432YP	LINK, ADJUSTMENT
44	BS703448	BOLZEN, 3/8-16X.75 G5
45	BS7059784YP	SPINDLE ASMY, LT 33
46	BS7052294YP	SPINDELWELLE
47	BS7010817SM	SCHMIERNIPPEL
48	BS7027711YP	SPINDLE, 33 LTF
49	BS7012491SM	HALTERING EXT
50	BS7013313SM	SPINDELLAGER
51	BS7014407SM	WASHER, SPINDLE, PM
52	BS703903	NUT, HEX, 1/2-20
53	BS703880	KOPFSCHRAUBE, 1/2-20X1
54	BS7037751BMYP	HOLDER, BLADE
55	BS7090356YP	MUTTER
56	BS7090509YP	ZAHNSCHEIBE
58	BS7019523BZYP	BLADE, 33
58	BS7024741AYP	BLADE, 33" NINJA
58	BS7016982
59	BS7037723BMYP	AIR LIFT ECOAT
60	BS7090228SM	SCHRAUBE, 5/16F
61	BS703587	WASHER, 5/16
62	BS703331	MUTTER, 5/16-24
63	BS7033115YP	SUPPORT, DECK
64	BS7016844YP	CABLE, DECK HANGER
65	BS7012670YP	TOLERANCE RING
66	BS7047960YP
67	BS7028652YP	SPRING, IDLER RETURN
68	BS7015753YP	BALL JOINT
69	BS7023687YP	LINK
70	BS703462	U.-SCHEIBE, 1/4
71	BS7090095YP	NUT, HEX, 1/4
72	BS7038018AYP	STREBE, SPINDEL
73	BS703185	RHSSNB
74	BS7091294
75	BS703312	PIN, COTTER, 3/32X.75
76	BS7033570BMYP	HALTER VORN
77	BS7033571BMYP	HALTER ANTI-SCALP, SEITLICH
78	BS703798	BOLT, 5/16-18X0.50
79	BS7091601
80	BS7015272YP	BUCHSE
81	BS703876	CAPSCREW,3/8-2X3.75
82	BS7090289
83	BS7019190YP	BEGRENZUNGSRAD
84	BS7033352YP	BELT GUIDE
85	BS703350	U-SCHEIBE, 5/16
86	BS7020908YP	ROLLER
87	BS7014852
22990	BS7022990
22991	BS7022991YP	DECAL, 33 HI-VAC
22993	BS7022993
