Snapper LT125G411KVE - 41" Lawn Tractor, 12.5 HP, Gear Drive, Series 1 41" Cutting Deck Ricambi

Name: SPINDELLAGER
Price: 18.59 EUR

SPINDELLAGER

Articolo numero:

BS7013313SM

Posizione:

18.59 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

in magazzino

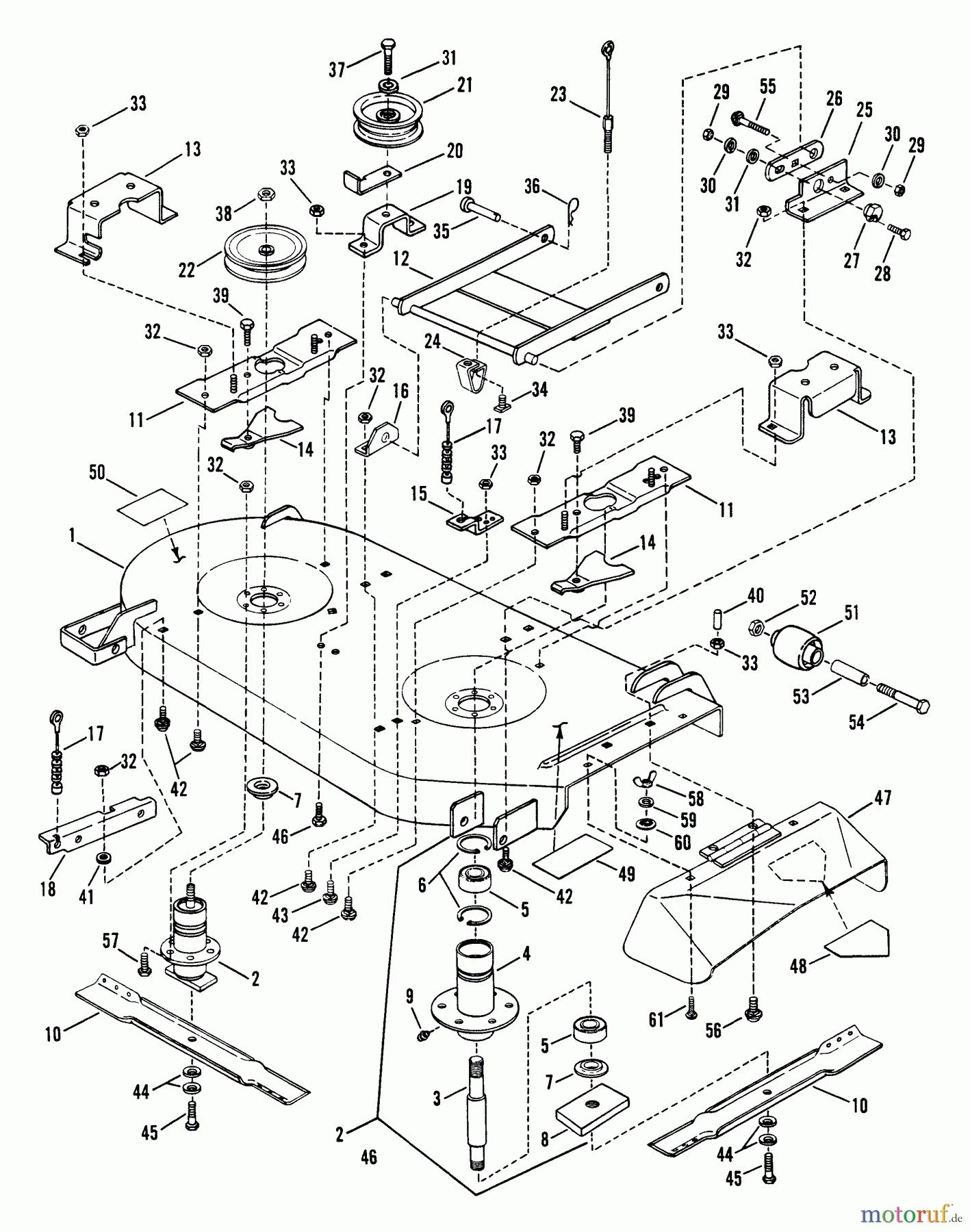

Snapper Rasen- und Gartentraktoren LT125G411KVE - Snapper 41

Posizione	Articolo numero	Descrizione
1	BS7061958YP	REPLACEMENT DECK KIT,
2	BS7051914YP	SPINDLE ASMY W/ LUBE
3	BS7027668YP	SPINDLE
4	BS7051918YP	SPINDLE HOUSING W/ LU
5	BS7013313SM	SPINDELLAGER
6	BS7012491SM	HALTERING EXT
7	BS7014407SM	WASHER, SPINDLE, PM
8	BS7032294YP	HOLDER, BLADE
9	BS7010817SM	SCHMIERNIPPEL
10	BS7019795BZYP	BLADE, 21" AIR LIFT
11	BS7052487YP	SPINDLE BRACE ASMY
12	BS7042469YP	WELD, FRONT LIFT ARM,
13	BS7034409YP	GUARD, PULLEY
14	BS7051747YP	SPINDLE LOCK ASSY.
15	BS7033083YP	SUPPORT, DECK
16	BS7032297YP	BRKT, FRONT HANGER
17	BS7016844YP	CABLE, DECK HANGER
18	BS7033086YP	SUPPORT, DECK
19	BS7051748YP	IDLER MOUNT BRKT.
20	BS7032368YP	BELT GUIDE, CLEAR
21	BS7018574SM	SPANNROLLE FLACH 4.12
22	BS7015724YP	PULLEY, 5.75 OD
23	BS7023180YP	CABLE, LIFT
24	BS7038043YP	HANGER, FRONT, YELLOW
25	BS7038382YP	BRKT, FRONT RH
26	BS7032432YP	LINK, ADJUSTMENT
27	BS7015012YP	RING, ADJUSTMENT, PM,
28	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
29	BS7091302SM	HN, 3/8C GR5 YZ
30	BS703454	LOCKWASHER, SPLIT 3/8
31	BS703878	WASHER, FLAT
32	BS703333	MUTTER, 3/8-16
33	BS703409	MUTTER, 5/16-18, GR5
34	BS7090388YP	T-NUT, 5/16C
35	BS7012951SM	CLEVIS PIN
36	BS7091596YP	HAIR PIN, 0148 X 2.62
37	BS7091497SM	SECHSK.SCHR.3/8CX1-1/2GR
38	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
39	BS7027198YP	(C) HFLB, 3/8C X1 YZ
40	BS7023606YP	CAP, VINYL
41	BS7090517SM	FW, .438X1X.084 YZ
42	BS703448	BOLZEN, 3/8-16X.75 G5
43	BS703185	RHSSNB
44	BS703963	WASHER, CONE
45	BS7090824YP	SCREW, 3/8-24 X 1-1/4
46	BS9357MA	SCHRAUBE, 5/16-18X .75WD
47	BS7051401YP	CHUTE / DECAL ASSY, 4
48	BS7013010SM	DECAL-DANGER, CUT FIN
49	BS7014852YP	DECAL, CAUTION
50	BS7014852
51	BS7019190YP	BEGRENZUNGSRAD
52	BS703458	MUTTER, 3/8-24
53	BS7015272YP	BUCHSE
54	BS703876	CAPSCREW,3/8-2X3.75
55	BS7091547
56	BS7091303YP	RHSSNB, 5/16CX1 GR5
57	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
58	BS7091537YP	WLN, 5/16C YZ
59	BS7090187SM	SLW, .318X.583X.078 Z
60	BS703297	RETAINER, GR5, 5/16
61	BS7090799SM	RHSSNB, 5/16C X5/8 GR
	BS7022992YP	DECAL, 41
	BS7060929
