Snapper LT130H382KV (80559) - 38" Lawn Tractor, 13 HP, Hydro Drive, Series 2 38" Cutting Deck, Belts, Brakes Ricambi

Name: RHSSNB
Price: 4.94 EUR

RHSSNB

Articolo numero:

BS703185

Posizione:

4.94 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

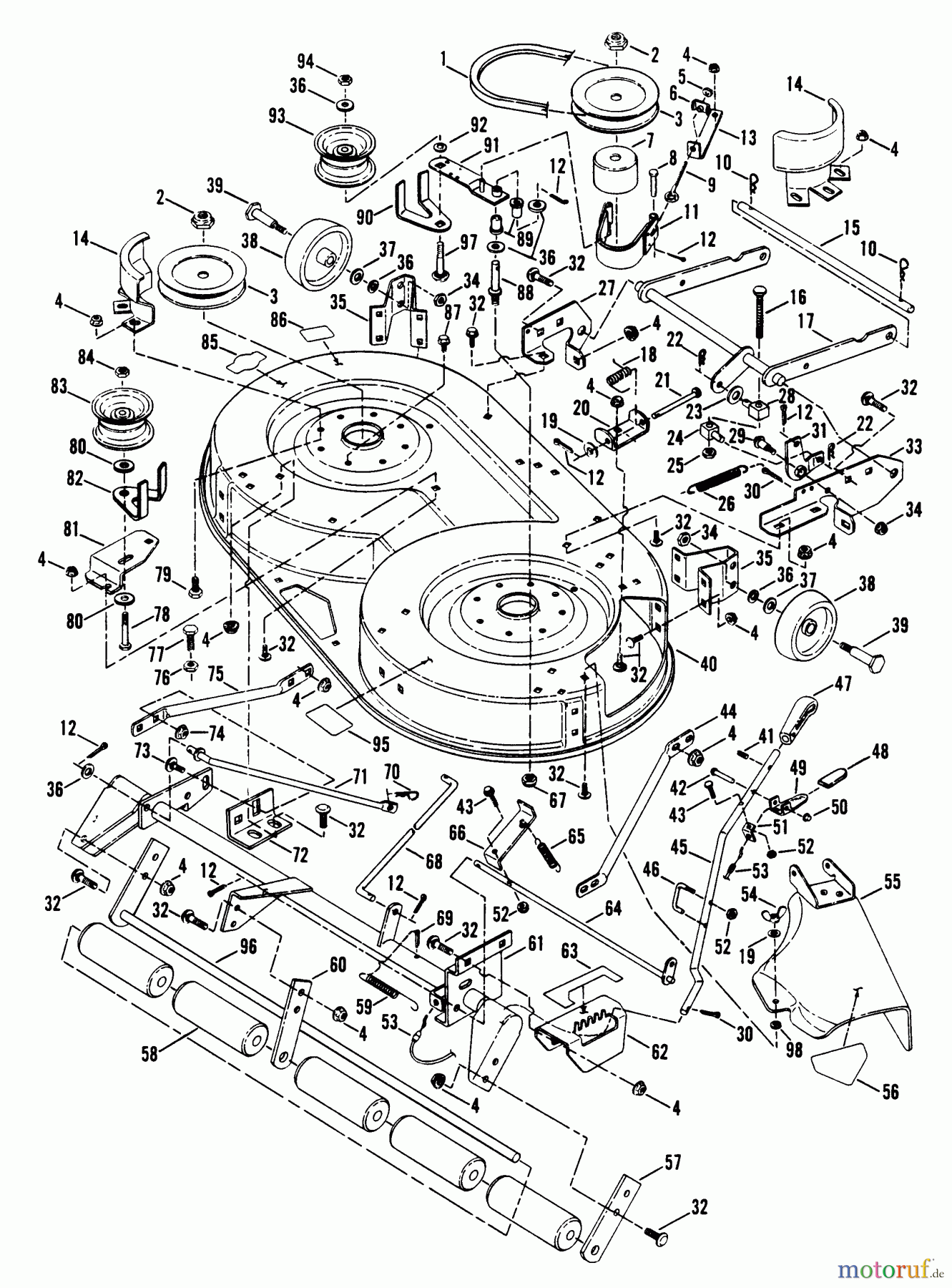

Snapper Rasen- und Gartentraktoren LT130H382KV (80559) - Snapper 38

Posizione	Articolo numero	Descrizione
1	BS7026688YP	BELT, 38 DECK GF 96.5
2	BS7091006SM	HLN, 5/8F ZP
3	BS7024634YP	PULLEY, SPINDLE
4	BS703409	MUTTER, 5/16-18, GR5
5	BS703127	MUTTER
6	BS7024908YP	NUT, LOCK
7	BS7033816YP	BRAKE DRUM, 38" DECK
8	BS7014304YP	LAGERBOLZEN, 1/4X1-5/8
9	BS7014302YP	RINGSCHRAUBE
10	BS7091596YP	HAIR PIN, 0148 X 2.62
11	BS7052886YP	BRAKE BAND ASMY
12	BS703312	PIN, COTTER, 3/32X.75
13	BS7033825YP	ANCHOR, BLADE BRAKE
14	BS7024801YP	GUARD, BELT
15	BS7027471YP	PIN, DECK HANGER, IMP
16	BS7026826
17	BS7041510YP	WELD, FRONT LIFT ARM
18	BS7026158YP	SPRING, CHUTE HINGE
19	BS703350	U-SCHEIBE, 5/16
20	BS7026750YP	HINGE, DECK
21	BS7026161YP	CLEVIS PIN, 5/16X3.19
22	BS703300	PIN, 3/32 X 1.6
23	BS7025074SM	SCHEIBE, .531X1X.063 BZ
24	BS7026648YP	SWIVEL, LIFT
25	BS7090625YP	HJN, 1/2C
26	BS7026173YP	SPRING, BLADE BRAKE
27	BS7035577YP	BRKT, FRONT LIFT ARM
28	BS7026827YP	SWIVEL, LIFT, 1/2-13T
29	BS7024267YP	BOLT, SHLDR
30	BS7091598SM	COTTER PIN, 1/8X3/4 Y
31	BS7041509YP	WELD, BELLCRANK, BLAC
32	BS703185	RHSSNB
33	BS7026525YP	BRKT, FRONT LINKAGE
34	BS703458	MUTTER, 3/8-24
35	BS7033756SM	BRKT, GAGE WHEEL
36	BS703878	WASHER, FLAT
37	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
38	BS7026122SM	WHEEL, GAGE 4 X 1.5
39	BS7091526SM	BOLT, SHLDR, 3/8F X.6
40	BS7061960YP	38" DECK / DECAL ASSY
41	BS2816169SM	PIN, SPRING, .188 X 0
42	BS7012776YP	PIN, ROUND HEAD, 1/4X
43	BS7027230SM	(C) HHCS, 1/4C X1 GR5
44	BS7034349YP	TUBE, STRUCTURAL, RH
45	BS7026504
46	BS7026524
47	BS7023658YP	LEVER, HANDLE, HEIGHT
48	BS7026790YP	GRIP, UPLATCH
49	BS7026761YP	LEVER, LATCH
50	BS704005	PUSHNUT, CAP, 1/4
51	BS7026762YP	ANCHOR, UPPER CABLE
52	BS7091705SM	HTLN, 1/4C GR.B YZ
53	BS7026774YP	CABLE, MOWER LATCH
54	BS7091537YP	WLN, 5/16C YZ
55	BS7053227YP	CHUTE & HINGE ASMY
56	BS7013010SM	DECAL-DANGER, CUT FIN
57	BS7026538YP	STRIP, OUTER
58	BS7026695YP	ROLLER ##
59	BS7026658YP	SPRING, EXTENSION
60	BS7026497YP	STRIP, CENTER
61	BS7041511YP	WELD, TORQUE TUBE
62	BS7026537
63	BS7026765
64	BS7041519YP	WELD, LATCH SHAFT
65	BS7026792YP	SPRING, EXTENSION
66	BS7026791YP	CATCH, UPLATCH, LTH
67	BS703459	NUT, HEX, 5/16-24
68	BS7026514YP	LINK, DECK
69	BS7090310
70	BS7091310SM	HAIR PIN, #13
71	BS7026764YP	BAR, STABILIZING LTG
72	BS7026536YP	ANGLE
73	BS1960702SM	BOLT-RD HD SQ NK 3/8
74	BS703333	MUTTER, 3/8-16
75	BS7033972YP	TUBE, STRUCTURAL, LH
76	BS7090665SM	HJN, 3/8C ZP
77	BS1921969SM	SECHSK.SCHRAUBE HD 3/8-1
78	BS7090748YP	HHCS, 1/2C X3-1/2
79	BS703585	CAPSCREW, 5/16-18X1
80	BS7091152YP	FW, .54X1.5X.2
81	BS7033728YP	BRKT, FIXED IDLER
82	BS7034045YP	BELT GUIDE
83	BS7026310YP	PULLEY, IDLER, FLAT
84	BS7091121YP	HLN, NYLON, 1/2C ZP
85	BS7025061YP	DECAL, 38" DECK
86	BS7014852YP	DECAL, CAUTION
87	BS7090815YP	SCHRAUBE, 3/8-16 X 3/4
88	BS7026618YP	STUD, IDLER
89	BS7012306SM	BUSHING, FLANGE
90	BS7033929YP	BELT GUIDE
91	BS7041392YP	IDLER ARM
92	BS703986	RETAINER, PUSHNUT,3/8
93	BS7024725YP	IDLER, FLAT, 3.25 ID
94	BS703117	MUTTER
95	BS7014852
96	BS7041512YP	WELD, ROLLER SHAFT
97	BS7092000SM
98	BS703297	RETAINER, GR5, 5/16
	BS7061314
