Snapper LT140G38ABV (80492) - 38" Lawn Tractor, 14 HP, Gear Drive, Series A (GF) 42" Cutting Deck Ricambi

Name: BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
Price: 6.83 EUR

BUNDSCHRAUBE, 3/8C X3/4 GR5 Y

Articolo numero:

BS7091588SM

Posizione:

6.83 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

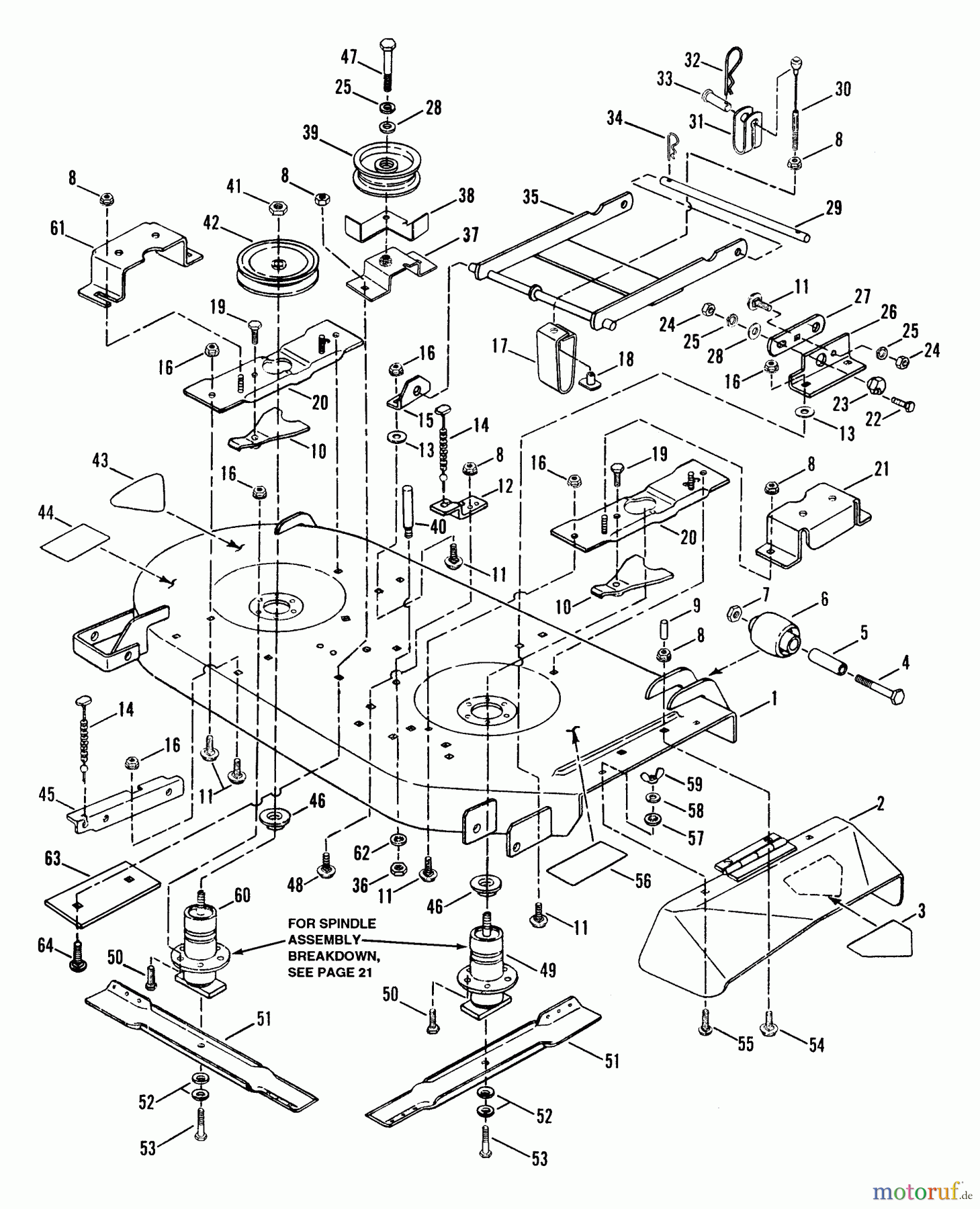

Snapper Rasen- und Gartentraktoren LT140G38ABV (80492) - Snapper 38

Posizione	Articolo numero	Descrizione
1	BS7061958YP	REPLACEMENT DECK KIT,
2	BS7051401YP	CHUTE / DECAL ASSY, 4
3	BS7013010SM	DECAL-DANGER, CUT FIN
4	BS703876	CAPSCREW,3/8-2X3.75
5	BS7015272YP	BUCHSE
6	BS7019190YP	BEGRENZUNGSRAD
7	BS703458	MUTTER, 3/8-24
8	BS703409	MUTTER, 5/16-18, GR5
9	BS7023606YP	CAP, VINYL
10	BS7051747YP	SPINDLE LOCK ASSY.
11	BS703448	BOLZEN, 3/8-16X.75 G5
12	BS7033083YP	SUPPORT, DECK
13	BS7090517SM	FW, .438X1X.084 YZ
14	BS7027430YP	CABLE, DECK LIFT REAR
15	BS7032297YP	BRKT, FRONT HANGER
16	BS703333	MUTTER, 3/8-16
17	BS7038043YP	HANGER, FRONT, YELLOW
18	BS7090388YP	T-NUT, 5/16C
19	BS7027198YP	(C) HFLB, 3/8C X1 YZ
20	BS7052487YP	SPINDLE BRACE ASMY
21	BS7034409YP	GUARD, PULLEY
22	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
23	BS7015012YP	RING, ADJUSTMENT, PM,
24	BS7091302SM	HN, 3/8C GR5 YZ
25	BS703454	LOCKWASHER, SPLIT 3/8
26	BS7038382YP	BRKT, FRONT RH
27	BS7032432YP	LINK, ADJUSTMENT
28	BS703878	WASHER, FLAT
29	BS7027471YP	PIN, DECK HANGER, IMP
30	BS7022893YP	CABLE, DECK LIFT
31	BS7032276YP	CLEVIS, LIFT CABLE
32	BS703300	PIN, 3/32 X 1.6
33	BS7029687YP	CLEVIS PIN, 3/8X1-1/1
34	BS7091596YP	HAIR PIN, 0148 X 2.62
35	BS7042469YP	WELD, FRONT LIFT ARM,
36	BS703895	NUT, HEX, 3/8-24
37	BS7041559YP	WELD, IDLER MOUNT BRK
38	BS7034041YP	BELT GUIDE, STATIONAR
39	BS7018574SM	SPANNROLLE FLACH 4.12
40	BS7012125YP	BOLZEN, 4.5, YZ
41	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
42	BS7015724YP	PULLEY, 5.75 OD
43	BS7024910YP	DECAL, 42
44	BS7014852YP	DECAL, CAUTION
45	BS7033086YP	SUPPORT, DECK
46	BS7014407SM	WASHER, SPINDLE, PM
47	BS703999	CAPSCREW, 3/8-24X2
48	BS703185	RHSSNB
49	BS7051914YP	SPINDLE ASMY W/ LUBE
50	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
51	BS7019795BZYP	BLADE, 21" AIR LIFT
52	BS703963	WASHER, CONE
53	BS7090824YP	SCREW, 3/8-24 X 1-1/4
54	BS7091303YP	RHSSNB, 5/16CX1 GR5
55	BS7090799SM	RHSSNB, 5/16C X5/8 GR
56	BS7014852
57	BS703297	RETAINER, GR5, 5/16
58	BS7090187SM	SLW, .318X.583X.078 Z
59	BS7091537YP	WLN, 5/16C YZ
60	BS7052959YP	SPINDLE ASSY, DECK
61	BS7033739YP	GUARD, PULLEY, 41, LH
62	BS703930	WASHER, INT LCK, 3/8
63	BS7034202YP	PLATE, SUPPORT
64	BS703585	CAPSCREW, 5/16-18X1
