Snapper LT145H33GBV (84591) - 33" Lawn Tractor, 14.5 HP, Hydro Drive, Series G 33" Cutting Deck, Belts, Brakes Ricambi

Name: SICHERUNGSRING
Price: 6.20 EUR

SICHERUNGSRING

Articolo numero:

BS7010740YP

Posizione:

6.20 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

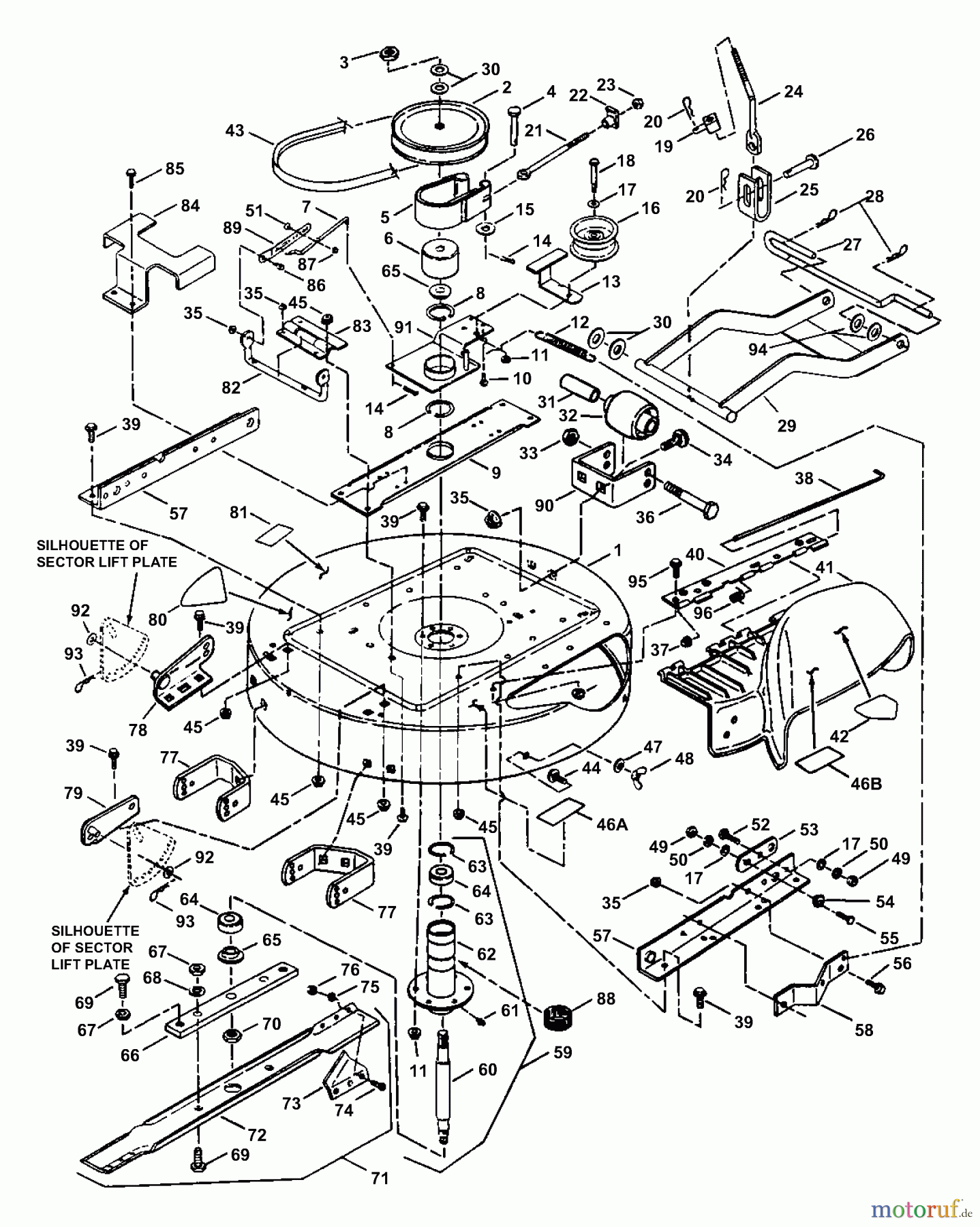

Snapper Rasen- und Gartentraktoren LT145H33GBV (84591) - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS7061956YP	33" REPLACE DECK KIT
2	BS7026558YP	PULLEY, SPINDLE, 33
3	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
4	BS7014304YP	LAGERBOLZEN, 1/4X1-5/8
5	BS7052886YP	BRAKE BAND ASMY
6	BS7035378YP	BREMSTROMMEL
7	BS7024192YP	ROD, LINK BRAKE ARM D
8	BS7010740YP	SICHERUNGSRING
9	BS7038018AYP	STREBE, SPINDEL
10	BS703228	SCHRAUBE, 5/16-18 X .75
11	BS703347	MUTTER, 3/8-16
12	BS7012264YP	FEDER, FREIL. & BREMSE
13	BS7075346YP	BELT GUIDE, 33 DECK
14	BS703312	PIN, COTTER, 3/32X.75
15	BS7091294
16	BS7075707YP	IDLER, FLAT, 4.00 OD
17	BS703878	WASHER, FLAT
18	BS1921971SM	KOPFSCHRAUBE, SECHSK. HD 3/8
19	BS7029694YP	SWIVEL, BRAKE, YELLOW
20	BS7012431SM
21	BS7026677YP	EYE BOLT, 1/4-20 X 5
22	BS7014303YP	T-MUTTER 1/4 C
23	BS703127	MUTTER
24	BS7026639YP	ROD, FRONT LIFT
25	BS7033938YP	HANGER, FRONT
26	BS7013460YP	SICHERUNGSSPLINT 3/8X1-1/2
27	BS7027471YP	PIN, DECK HANGER, IMP
28	BS7091596YP	HAIR PIN, 0148 X 2.62
29	BS7041613YP	WELD, LIFT ARM
30	BS7032028YP	SCHEIBE .781X1.5X.132
31	BS7015272YP	BUCHSE
32	BS7019190YP	BEGRENZUNGSRAD
33	BS703458	MUTTER, 3/8-24
34	BS703798	BOLT, 5/16-18X0.50
35	BS703409	MUTTER, 5/16-18, GR5
36	BS703876	CAPSCREW,3/8-2X3.75
41	BS7052555YP	ABLAUF SCHACHT KOMPL.
37	BS7026483YP	PALMUTTER
38	BS7105174YP	ROD , CHUTE
39	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
40	BS7300886BMYP	SCHARNIER
41	BS7026233YP	CHUTE, DISCHARGE
42	BS7013010SM	DECAL-DANGER, CUT FIN
43	BS7075706YP	BELT, 33 DECK
44	BS703185	RHSSNB
45	BS703333	MUTTER, 3/8-16
46A	BS7014852YP	DECAL, CAUTION
46B	BS7022841SM	DECAL, WARNING
47	BS703350	U-SCHEIBE, 5/16
48	BS7091537YP	WLN, 5/16C YZ
48	BS7091511SM	MUTTER, 5/16C GR5 YZ
49	BS7091302SM	HN, 3/8C GR5 YZ
50	BS703454	LOCKWASHER, SPLIT 3/8
51	BS7090584YP	HFLB, 1/4C X1/2 GR5
52	BS703448	BOLZEN, 3/8-16X.75 G5
53	BS7032432YP	LINK, ADJUSTMENT
54	BS7015012YP	RING, ADJUSTMENT, PM,
55	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
56	BS7090721YP	CPSCW, LAG 5/16 X 1/2
57	BS7038453YP	RAIL, 33 LT
58	BS7033952YP	ANCHOR, BRAKE SPRING
59	BS7052917AYP	SPINDLE ASSEMBLY
60	BS7024687YP	SHAFT, SPINDLE, 30" L
61	BS7010817SM	SCHMIERNIPPEL
62	BS7052294YP	SPINDELWELLE
63	BS7012491SM	HALTERING EXT
64	BS7013313SM	SPINDELLAGER
65	BS7014407SM	WASHER, SPINDLE, PM
66	BS7037751BMYP	HOLDER, BLADE
67	BS7091939YP	MUTTER, 1/2F GR5 ZP
68	BS7090509YP	ZAHNSCHEIBE
69	BS7090491YP	SECHSKANTSCHRAUBE 1/2 X1-1/4GR
70	BS7090356YP	MUTTER
71	BS7019523BZYP	BLADE, 33
72	BS7019523
73	BS7037723BMYP	AIR LIFT ECOAT
73	BS7034468BMYP	AIR LIFT, 28/33 ECOAT
74	BS7090228SM	SCHRAUBE, 5/16F
75	BS703587	WASHER, 5/16
76	BS703331	MUTTER, 5/16-24
77	BS7033571BMYP	HALTER ANTI-SCALP, SEITLICH
78	BS7042608YP	SPOT WELD, SECTOR LIF
79	BS7042578YP	SPOT WELD, BRKT, SECT
80	BS7022991YP	DECAL, 33 HI-VAC
81	BS7014852
82	BS7024183YP	ROD, PIVOT ARM
83	BS7033578YP	BRKT, PIVOT ARM DECK
84	BS7033926YP	BELT GUIDE, SPINDLE
85	BS703949	SCHRAUBE, 5/16-18.625
86	BS7015761YP	PASSSCHRAUBE, 5/16- 1
87	BS703233	MUTTER, 1/4-20, GR5
88	BS7012670YP	TOLERANCE RING
89	BS7033586
90	BS7033570BMYP	HALTER VORN
91	BS7041311YP	BRAKE ARM
92	BS7090122
93	BS703300	PIN, 3/32 X 1.6
94	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
95	BS7091588
96	BS7016341YP	SPRING, HINGE
97	BS7034168BZYP	BLADE, 33 HIGH LIFT
98	BS7029152YP	CABLE, 33 BLADE
