Snapper NXT19542 (2690942) - 42" Lawn Tractor, 19.5 HP, NXT200, LT125 Series Electrical Group Ricambi

Name: SWITCH ASSY, START
Price: 39.59 EUR

SWITCH ASSY, START

Articolo numero:

BS1753667YP

Posizione:

0510

39.59 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

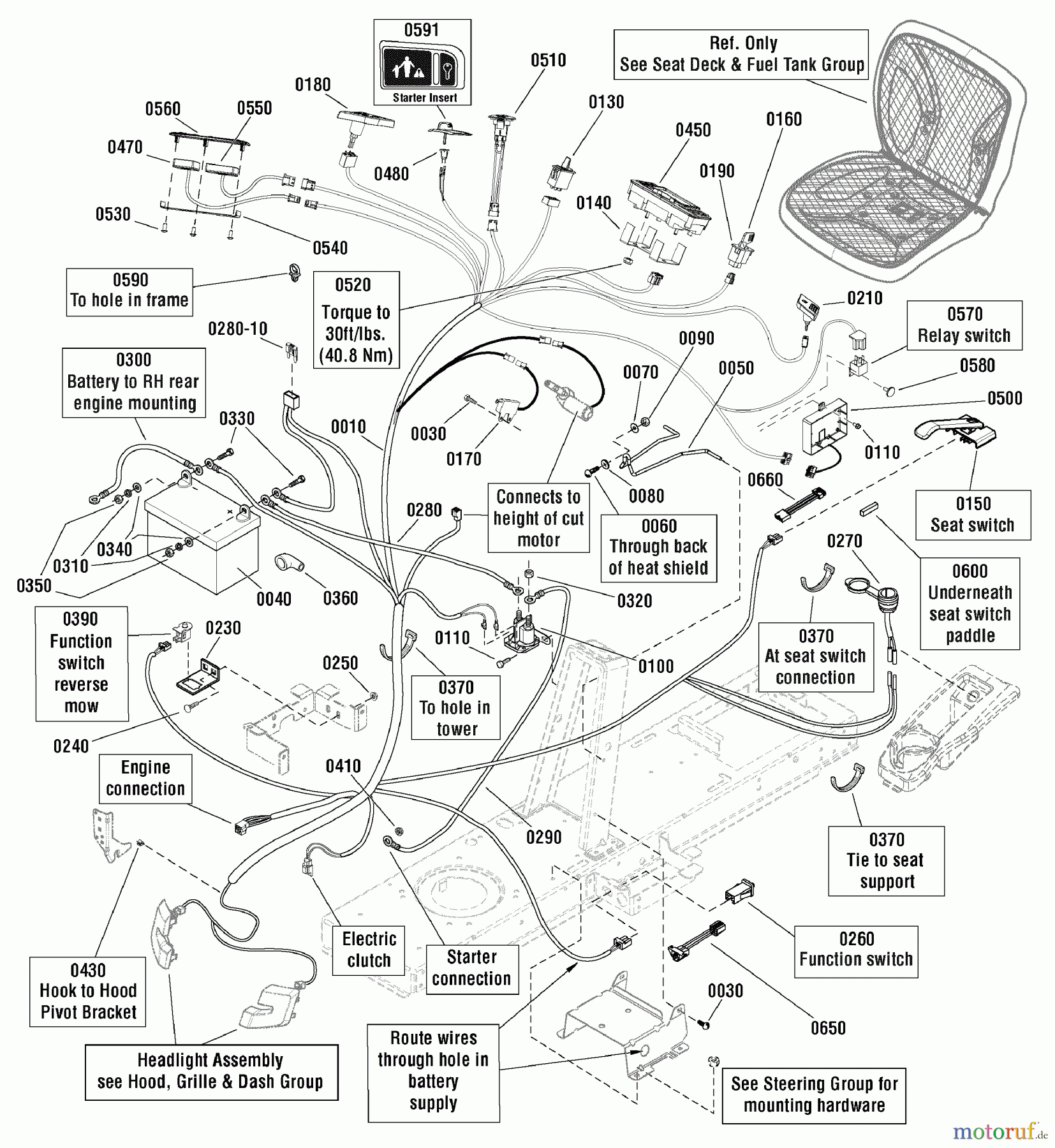

Snapper Rasen- und Gartentraktoren NXT19542 (2690942) - Snapper 42

Posizione	Articolo numero	Descrizione
0010	BS1738984YP	KABELSTRANG
0030	BS703949	SCHRAUBE, 5/16-18.625
0040	BS1722841
0050	BS1730007SM	BATTERIEHALTERUNG
0060	BS1931318SM	BOLZEN
0070	BS1960353SM	ABZIEHER-SCHEIBE
0080	BS703826	BOLT, PUSHNUT 1/4
0090	BS703232	MUTTER, 1/4-20, NYLOCK
0100	BS1728963SM	MAGNETABSCH.VENTIL
0110	BS1925003
0130	BS1738381YP	SCHALTER, SCHNITTHOHE
0140	BS1738961AYP	HALTER, PANEL MONT.
0150	BS1738015YP	SITZ, SCHALTER
0160	BS1726557SM
0170	BS1738724YP	SENSOR
0180	BS1738982YP	SCHALTER, PTO
0190	BS1726556SM
0210	BS1738983YP	LICHTSCHALTER
0230	BS1728026ASM	SUPPORT-RMO SWITCH RE
0240	BS703185	RHSSNB
0250	BS703409	MUTTER, 5/16-18, GR5
0260	BS7022886YP	SWITCH, DP NO/NC SNAP
0270	BS7073090SM	STROM DOSE 12
0280	BS1716549SM	KABEL-# 6 X 10.00LG
0280-10	BS	Eingangswelle UE 600
0290	BS1721830SM	KABEL, #6X25
0300	BS1713163SM	KABEL-# 6 X 26.0
0310	BS704133	LOCKWASHER, SPLIT,1/4
0320	BS2860750SM	MUTTER 5/16-24
0330	BS703925	CAPSCREW, 1/4-20X.75
0340	BS703332	U-SCHEIBE, 1/4
0350	BS703127	MUTTER
0360	BS1677296SM	SCHUTZHULLE BATTERIE
0370	BS1701011SM	TIE, SELF LOCKING .18
0380	BS1725403
0390	BS1732004SM	DRUCKSCHALTER
0410	BS703233	MUTTER, 1/4-20, GR5
0420	BS1726557SM
0430	BS2172434SM	KABELCLIP DIA .390
0450	BS1738021YP	INSTRUMENTENPLATTE
0470	BS1738985YP	ANZEIGE , ELEKT. SCHNITTHOH.VE
0480	BS791944	SCHLUSSELSCHALTER
0500	BS1739020YP	KONTROLPLATTE
0500	BS1752037YP	PANEL, CONTROL
0510	BS1753667YP	SWITCH ASSY, START
0520	BS67885
0530	BS1739329YP	SCHRAUBE, 5MM X 12MM
0540	BS1739369AYP	HALTER, BEDIENTEIL
0550	BS1750212YP	SERVICEANZEIGE.
0560	BS1739307YP	BLENDE, INSTRUMENTENTAFEL
0570	BS1726829SM	RELAY-SINGLE POLE DBLE THROW
0580	BS1704351SM	FASTENER, PANEL 0750D
0590	BS1730268SM	SCHLAUCHKLEMME SCHW. KUNSTST.
0591	BS1738614YP	STARTER EINSATZ
0600	BS1750296YP	SCHUTZHULLE
0650	BS1734025SM	KABEL & ANSCHLUSS AS
0660	BS1752222YP	HARNESS, JUMPER (ALL
