Snapper RD18VG40 (2690623) - 40" Lawn Tractor, 18 HP, Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series Electrical Group Ricambi

Name: BOLT-RD HD SH SQ NK 1
Price: 5.04 EUR

BOLT-RD HD SH SQ NK 1

Articolo numero:

BS1960252SM

Posizione:

5.04 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

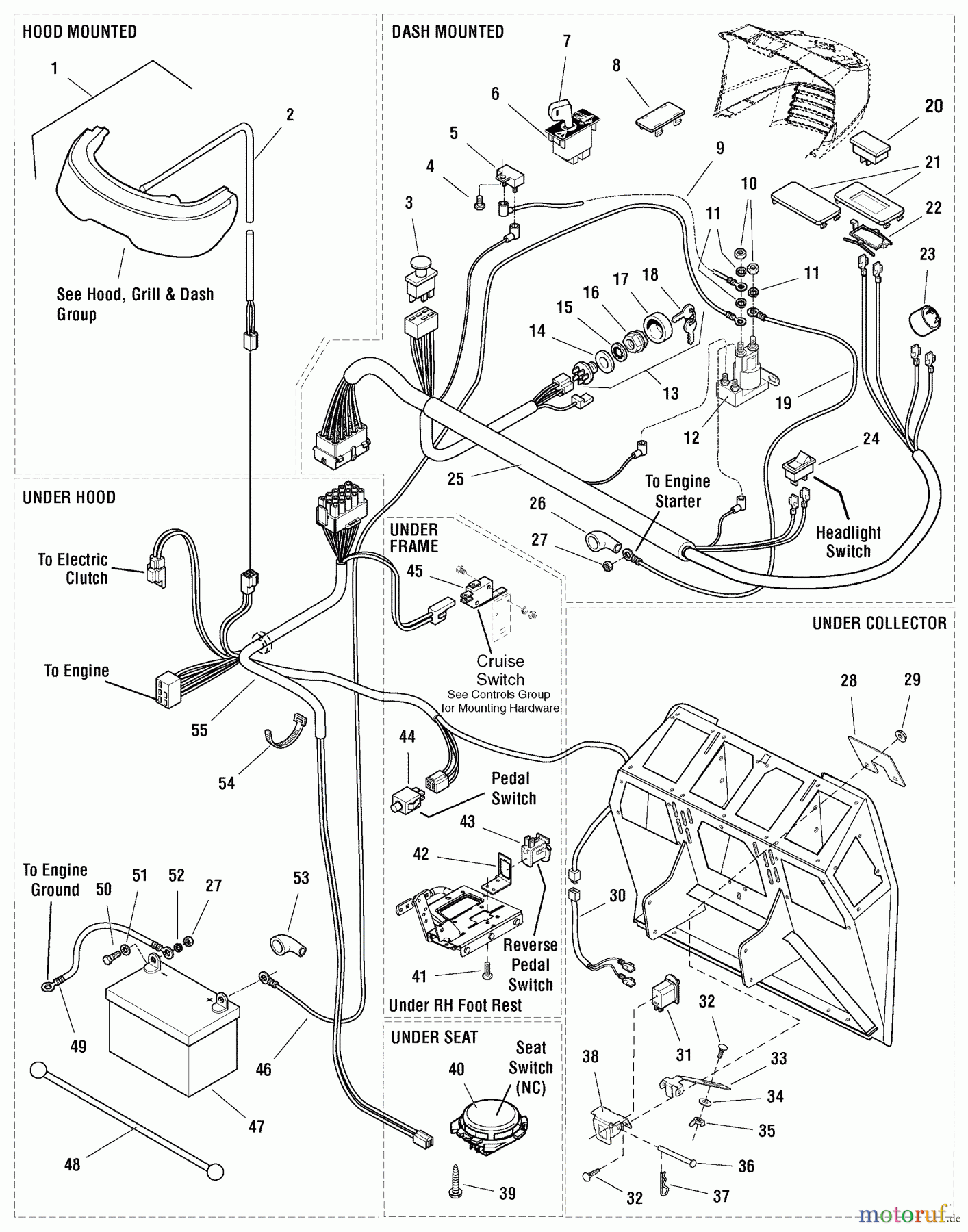

Snapper Rasen- und Gartentraktoren RD18VG40 (2690623) - Snapper 40

Posizione	Articolo numero	Descrizione
1	BS1721810SM	HEADLIGHT ASMY-4
2	BS1722669SM	SCHEINWERFERKABEL
3	BS1722887SM	SWITCH-PTO PUSH
4	BS001X38MA	BOLT,HEX .25-20X0.62
5	BS1665238SM	BREAKER-CIRCUIT
6	BS1726556SM
7	BS1726557SM
8	BS1722611SM	STOPFEN SCHWARZ
9	BS1665237SM	KABEL- 12GA 05.9
10	BS2816622SM	NUT-HEX 1/4-20 NC-2
11	BS703138	U-SCHEIBE
12	BS1722739SM	SOLENOID
13	BS1686734SM	IGNITION SWITCH
14	BS2101025SM	SCHEIBE 0.625(064IDX1
15	BS1960547SM	ZAHNSCHEIBE
16	BS1717549SM	SECHSKBUNDMUTTER 5/8-32
17	BS1717550SM	SCHALTERABDECKUNG
18	BS1717163SM	KEY-IGNITION INDAK
19	BS1721830SM	KABEL, #6X25
20	BS1731184SM	STUNDENZAHLER DIGITAL W/
21	BS1725524SM	PLUG-DASH BLACK ABS
21	BS1725698SM	PLUG-DASH BLACK ABS
22	BS1725835
23	BS1720117SM	BUZZER,PULSE,BAG FULL
24	BS1716951SM	SCHALTER-SCHEINWERFER
25	BS1726890
26	BS1677296SM	SCHUTZHULLE BATTERIE
27	BS703331	MUTTER, 5/16-24
28	BS1727776ASM	DEFLECTOR-SWITCH 14GA
29	BS703061	NUT, HEX KEPS, 1/4-20
30	BS1723954SM	HARNESS,WIRING REAR
31	BS1720411SM	SICHERHEITSSCHALTER
32	BS1960252SM	BOLT-RD HD SH SQ NK 1
33	BS1727428SM	PIVOT-ACTUATOR 2005 B
34	BS1960103SM	U-SCHEIBE-0.375(0.39IDX0
35	BS2860293SM	FLUGELMUTTER 1/4-20
36	BS1960607SM	SICHERUNGSSTIFT .250DIAX2.
37	BS1960221SM	SICHERUNGSSPLINT .062DIA
38	BS1727427SM	SUPPORT-ACTUATOR 14GA
39	BS1960536SM	SCHRAUBE SECHSK.SCHEIBE HD PL
40	BS1718981SM	SCHALTER 3.1
41	BS1927428SM	SCREW, HEX WSHR
42	BS1726810ASM	BRACKET-SWITCH MOUNTI
43	BS7015707YP	SWITCH, SEAT
44	BS7022886YP	SWITCH, DP NO/NC SNAP
45	BS1717050SM	SICHERHEITSSCHALTER
46	BS1603618SM	CABLE,#6X8
47	BS1685215
48	BS1722009SM	GURT - SCHWARZ
49	BS1713163SM	KABEL-# 6 X 26.0
50	BS703925	CAPSCREW, 1/4-20X.75
51	BS703332	U-SCHEIBE, 1/4
52	BS704133	LOCKWASHER, SPLIT,1/4
53	BS1713535SM	ISOLIERSCHUTZ C
54	BS1701011SM	TIE, SELF LOCKING .18
55	BS1726889
