Snapper WLT160H42GBV (84658) - 42" Lawn Tractor, 16 HP, Hydro Drive, Series G 42" Cutting Deck Ricambi

Name: RHSSNB, 5/16C X5/8 GR
Price: 5.04 EUR

RHSSNB, 5/16C X5/8 GR

Articolo numero:

BS7090799SM

Posizione:

5.04 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

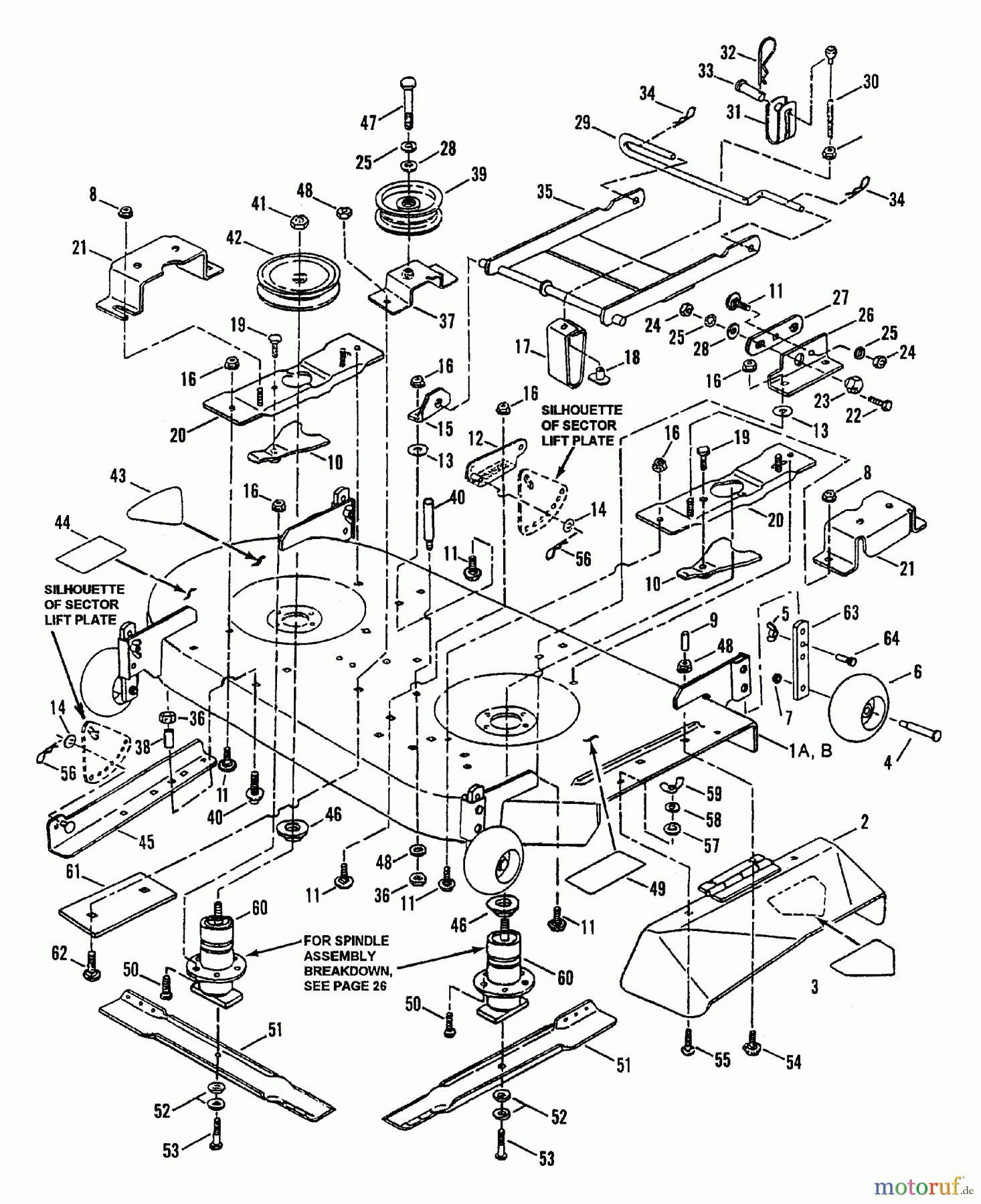

Snapper Rasen- und Gartentraktoren WLT160H42GBV (84658) - Snapper 42

Posizione	Articolo numero	Descrizione
1A	BS7054168
1B	BS7054170
2	BS7051401YP	CHUTE / DECAL ASSY, 4
3	BS7013010SM	DECAL-DANGER, CUT FIN
4	BS7029265SM	SCHRAUBBOLZEN, 3/8-16X3
5	BS7091049SM	FLUGELMUTTER .375-16 NYLO
6	BS1700184SM	RAD - 2.60 BREIT 4.9
7	BS703347	MUTTER, 3/8-16
8	BS703409	MUTTER, 5/16-18, GR5
9	BS7023606YP	CAP, VINYL
10	BS7051747YP	SPINDLE LOCK ASSY.
11	BS703448	BOLZEN, 3/8-16X.75 G5
12	BS7042578YP	SPOT WELD, BRKT, SECT
12	BS7042609YP	SPOT WELD, SECTOR LIF
13	BS7090517SM	FW, .438X1X.084 YZ
14	BS703878	WASHER, FLAT
15	BS7032297YP	BRKT, FRONT HANGER
16	BS703333	MUTTER, 3/8-16
17	BS7038043YP	HANGER, FRONT, YELLOW
18	BS7091567YP	T-NUT, 5/16C YZ
19	BS7027198YP	(C) HFLB, 3/8C X1 YZ
20	BS7052487YP	SPINDLE BRACE ASMY
21	BS7034409YP	GUARD, PULLEY
22	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
23	BS7015012YP	RING, ADJUSTMENT, PM,
24	BS7091302SM	HN, 3/8C GR5 YZ
25	BS703454	LOCKWASHER, SPLIT 3/8
26	BS7038382YP	BRKT, FRONT RH
27	BS7032432YP	LINK, ADJUSTMENT
28	BS7090122
29	BS7027471YP	PIN, DECK HANGER, IMP
30	BS7022893YP	CABLE, DECK LIFT
31	BS7032276YP	CLEVIS, LIFT CABLE
32	BS703300	PIN, 3/32 X 1.6
33	BS7029687YP	CLEVIS PIN, 3/8X1-1/1
34	BS7091596YP	HAIR PIN, 0148 X 2.62
35	BS7042469YP	WELD, FRONT LIFT ARM,
36	BS7091585
37	BS7053567YP	IDLER MOUNT BRKT. ASS
38	BS7028942YP	SLEEVE, .5OD X.404ID,
39	BS7018574SM	SPANNROLLE FLACH 4.12
40	BS7090614YP	HFLB, 3/8C X1-1/2
41	BS7074467SM	SECHSK.MUTTER, 3/4F GR8
42	BS7024863BMYP	PULLEY, 5.25 OD ECOAT
43	BS7024910YP	DECAL, 42
44	BS7014852YP	DECAL, CAUTION
45	BS7042607YP	SPOT WELD, SECTOR LIF
45	BS7042606YP	SPOT WELD, SECTOR LIF
46	BS7014407SM	WASHER, SPINDLE, PM
47	BS7091580YP	HFLB, 3/8C X1-3/4 GR5
48	BS7091601
49	BS7014852
50	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
51	BS7026691BZYP	BLADE, 21" STD.LIFT
52	BS703963	WASHER, CONE
53	BS7090824YP	SCREW, 3/8-24 X 1-1/4
54	BS7091303YP	RHSSNB, 5/16CX1 GR5
55	BS7090799SM	RHSSNB, 5/16C X5/8 GR
56	BS7091503
57	BS703297	RETAINER, GR5, 5/16
58	BS703116	LCKWSHR
59	BS7091537YP	WLN, 5/16C YZ
60	BS7051914YP	SPINDLE ASMY W/ LUBE
61	BS7034202YP	PLATE, SUPPORT
62	BS703585	CAPSCREW, 5/16-18X1
63	BS7035835SM	POST, ANTI-SCALP, YEL
64	BS703871	KOPFSCHRAUBE,3/8-16X1.25
