Snapper YT2452F (2691047-00) - 52" Yard Tractor, 24 HP, 4WD, Hydro Drive RMO, YT400 Series Transmission Group - Tuff Torq K664C Ricambi

Name: NUT-HEX KEPS 5/16-18
Price: 4.84 EUR

NUT-HEX KEPS 5/16-18

Articolo numero:

BS1960636SM

Posizione:

4.84 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

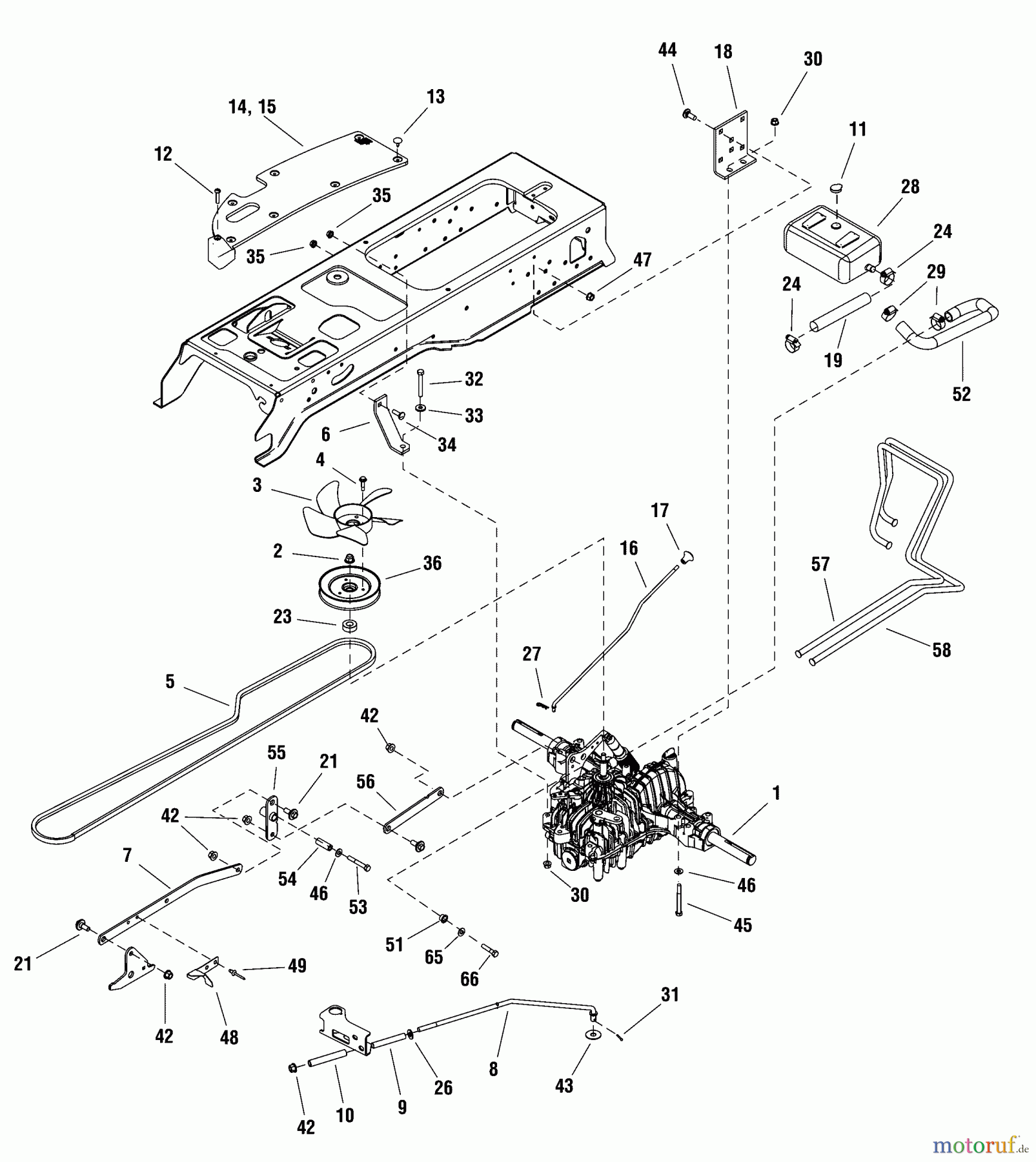

Posizione	Articolo numero	Descrizione
1	BS1733478SM	TRANSMISSION ASMY-K66
2	BS1719968SM	NUT-HEX FLANGE M10-1.
3	BS1719233SM	FAN-9.00OD 5 BLA
4	BS1933958SM	SCHRAUBE HD, T
5	BS1721392SM	BELT, 94.05
6	BS1721593ASM	STRAP,4-1/4 LONG-BLAC
7	BS1733318ASM	ARM-CONTROL 7GA K574
8	BS1721424SM	ROD,17-27/64 LONG
9	BS1722684SM	FEDERSPANNER .406
10	BS1729277SM	FEDER0.39
11	BS1722711SM	KAPPE-ENTLUFTUNG TA
12	BS1960676SM	FLACHKOPFSCHR. TORX, 1
13	BS1704351SM	FASTENER, PANEL 0750D
14	BS1722345SM	PAD-FOOTREST LH BLK
15	BS1722173SM	PAD-FOOTREST RH
16	BS1721622SM	ROD-FREE WHEEL
17	BS1723126SM	SCHALTKNOP MIT GEW.
18	BS1721728ASM	STUTZE-GETRIEBE
19	BS1733531SM	HOSE-HYDRAULIC .500ID
21	BS1732129SM	BOLZEN, 3/8-16 0
23	BS1734337SM	SPACER
24	BS2860266SM	CLAMP-HOSE WORM DR #
26	BS703878	WASHER, FLAT
27	BS1722460SM	PIN-QUICK .080WIRE 1.
28	BS1732989SM	TANK-OIL NATURAL POLY
29	BS1723214SM	SCHLAUCHSCHELLE DR #1
30	BS1960686SM	NUT, HEX
31	BS703312	PIN, COTTER, 3/32X.75
32	BS703868	KOPFSCHRAUBE,5/16-18X2.5
33	BS1960141SM	WASHER-0.312(0.34IDX0
34	BS703800	BOLT, CRRG, 5/16-18X1
35	BS1960636SM	NUT-HEX KEPS 5/16-18
36	BS1722194SM	RIEMENSCHEIBE & NABE KOMPL.
42	BS703158	MUTTER
43	BS1918267SM	SCHEIBE-0.438(0.47IDX0
44	BS703815	BOLT, RD SQ 3/8-16X1
45	BS1960590SM	CAPSCREW-HEX HD 5/16-
46	BS1919326SM	SCHEIBE - 0.312(0.34IDX
47	BS1960637SM	MUTTER 3/8-16 B
48	BS1727215ASM	BEDIENTEIL-SCHALTER 20GA
49	BS1960241SM	RIVET
51	BS1722648SM	LAGER-NYLON .5
52	BS1722468SM	HYDRAULIK - SCHLAUCH
53	BS1921160SM	CAPSCREW
54	BS1713588SM	DISTANZRING-0.323IDX0.555O
55	BS1737022ASM	PIVOT ASMY-CONTROL
56	BS1737020ASM	ARM-CONTROL REAR
57	BS1733483SM	TUBE-HYDRAULIC .500DI
58	BS1733484SM	TUBE-HYDRAULIC .500DI
65	BS1926192SM	WASHER-0.500(0.56IDX1
66	BS2172622SM	BOLT, SHLDR, 3/8-16
