Snapper 301016BE - 30" Rear-Engine Rider, 10 HP, Series 16 Cutting Decks, Deflectors Ricambi

Name: BOLT, 5/16-18X0.50
Price: 5.25 EUR

BOLT, 5/16-18X0.50

Articolo numero:

BS703798

Posizione:

5.25 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

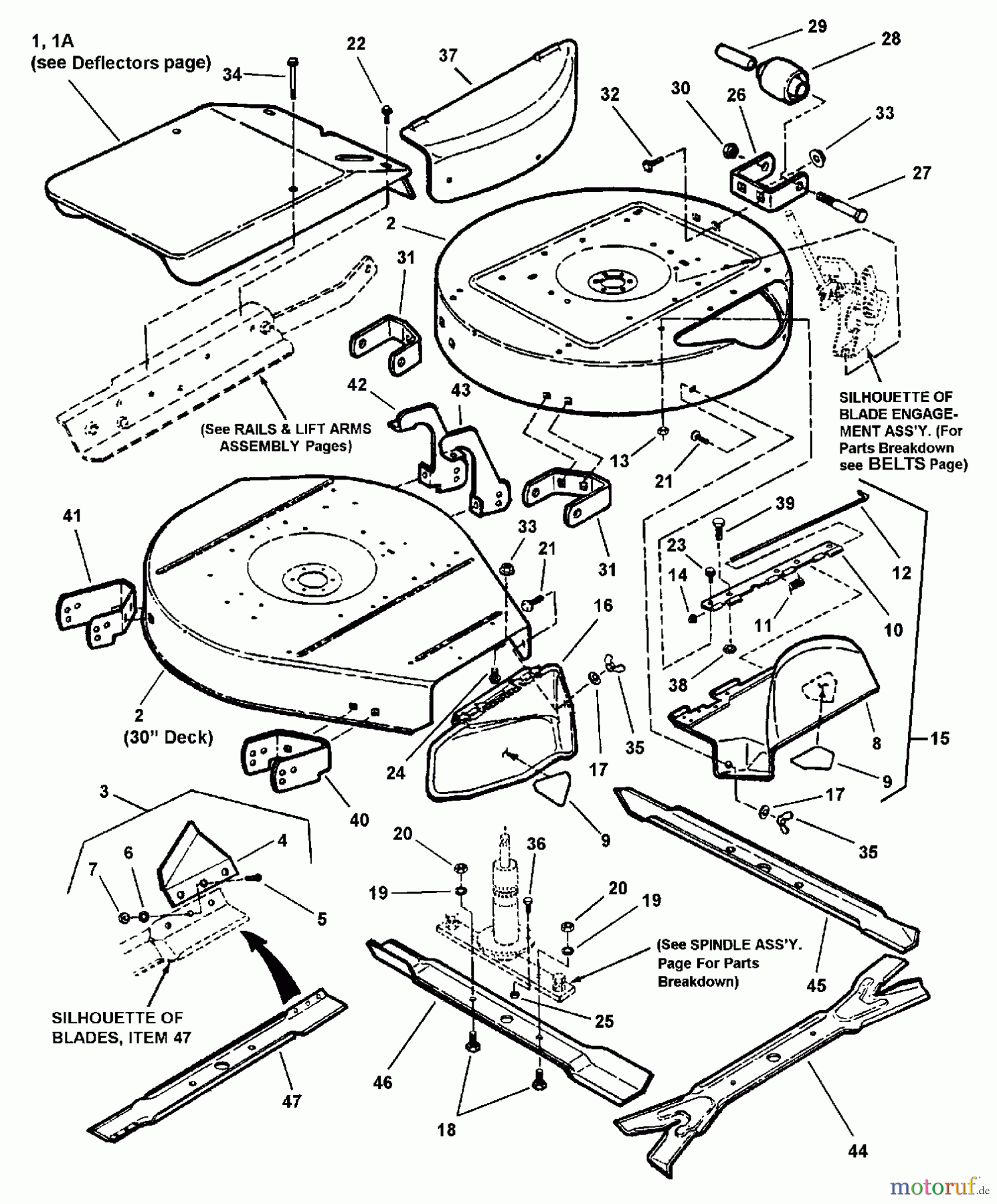

Snapper Reitermäher 301016BE - Snapper 30

Posizione	Articolo numero	Descrizione
1	BS7073434YP	COVER, SPINDLE, RER
1A	BS7035980YP	COVER, SPINDLE, RER
2	BS7061969
2	BS7061970YP	28" REPLACE DECK KIT
2	BS7061971YP	30" REPLACE DECK KIT
2	BS7061972YP	33" REPLACEDECK KIT
3	BS7060480SM	AIR LIFT KIT
3	BS7060735YP	AIR LIFT KIT, 30
4	BS7037723BMYP	AIR LIFT ECOAT
4	BS7031724YP	EXTENSION, AIR LIFT
5	BS7090228SM	SCHRAUBE, 5/16F
6	BS703587	WASHER, 5/16
7	BS703331	MUTTER, 5/16-24
8	BS7057624YP	SIDE CHUTE ASMY, 25
8	BS7026233YP	CHUTE, DISCHARGE
9	BS7013010SM	DECAL-DANGER, CUT FIN
9	BS7022841SM	DECAL, WARNING
10	BS7300886BMYP	SCHARNIER
10	BS7024569YP	HINGE HALF
11	BS7016341YP	SPRING, HINGE
11	BS7016428YP	SPRING, DEFLECTOR
12	BS7105174YP	ROD , CHUTE
12	BS7026846YP	PIN, HINGE, 6MM X 8-7
13	BS703409	MUTTER, 5/16-18, GR5
14	BS7026483YP	PALMUTTER
15	BS7054084YP	SIDE CHUTE ASSY, 25
15	BS7052555YP	ABLAUF SCHACHT KOMPL.
16	BS7052553YP	DISCHARGE CHUTE ASMY
17	BS703350	U-SCHEIBE, 5/16
18	BS703880	KOPFSCHRAUBE, 1/2-20X1
19	BS7090509YP	ZAHNSCHEIBE
20	BS703903	NUT, HEX, 1/2-20
21	BS703185	RHSSNB
22	BS703456	BOLZEN, 1/4-20X5/8, GR5
23	BS7090606SM	HFLB, 5/16C X5/8 ZP
24	BS7091525YP	BOLT, 5/16CX1/2
25	BS703333	MUTTER, 3/8-16
26	BS7033570BMYP	HALTER VORN
27	BS703876	CAPSCREW,3/8-2X3.75
28	BS7019190YP	BEGRENZUNGSRAD
29	BS7015272YP	BUCHSE
30	BS703901	MUTTER, 3/8-24
31	BS7033571BMYP	HALTER ANTI-SCALP, SEITLICH
32	BS703798	BOLT, 5/16-18X0.50
33	BS7091601
34	BS7091015YP	HWST, 1/4C X3-1/2 YZ
35	BS7091537YP	WLN, 5/16C YZ
36	BS7091588SM	BUNDSCHRAUBE, 3/8C X3/4 GR5 Y
37	BS7016968YP	COVER, 25 MULCH
37	BS7016983YP	COVER, MULCHING, 28
37	BS7016984YP	COVER, SIDE CHUTE, 33
38	BS703233	MUTTER, 1/4-20, GR5
39	BS7090584YP	HFLB, 1/4C X1/2 GR5
40	BS7034025YP	BRKT, ANTI-SCALP, RH
41	BS7034026YP	BRKT, ANTI-SCALP, LH
42	BS7034743YP	BRKT, 30" ANTI-SCALP,
43	BS7034760
44	BS7104083BZYP	BLADE, 28" NINJA, NO
44	BS7026565BZYP	BLADE, 30 NINJA
44	BS7024741AYP	BLADE, 33" NINJA
44	BS7029143BMYP	BLADE, NINJA 25
45	BS7016967
45	BS7016980BZYP	BLADE,28"MULCHER
45	BS7016982
46	BS7035619YP	BLADE, 25
46	BS7104196BZYP	BLADE 28 HIGH LIFT, N
46	BS7018069BZYP	BLADE, 30
46	BS7034168BZYP	BLADE, 33 HIGH LIFT
47	BS7019518YP	BLADE, 25" LC
47	BS7019515BZYP	BLADE, 28", AIR LIFT
47	BS7019523BZYP	BLADE, 33
