Snapper 3014524BVE (7800786) - 30" Rear-Engine Rider, 14.5 HP, Series 24 Main Case, LH Fender & Yoke Lift Group Ricambi

Name: ABDECKUNG, MAGNETSCH.
Price: 24.89 EUR

ABDECKUNG, MAGNETSCH.

Articolo numero:

BS7073268YP

Posizione:

24.89 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

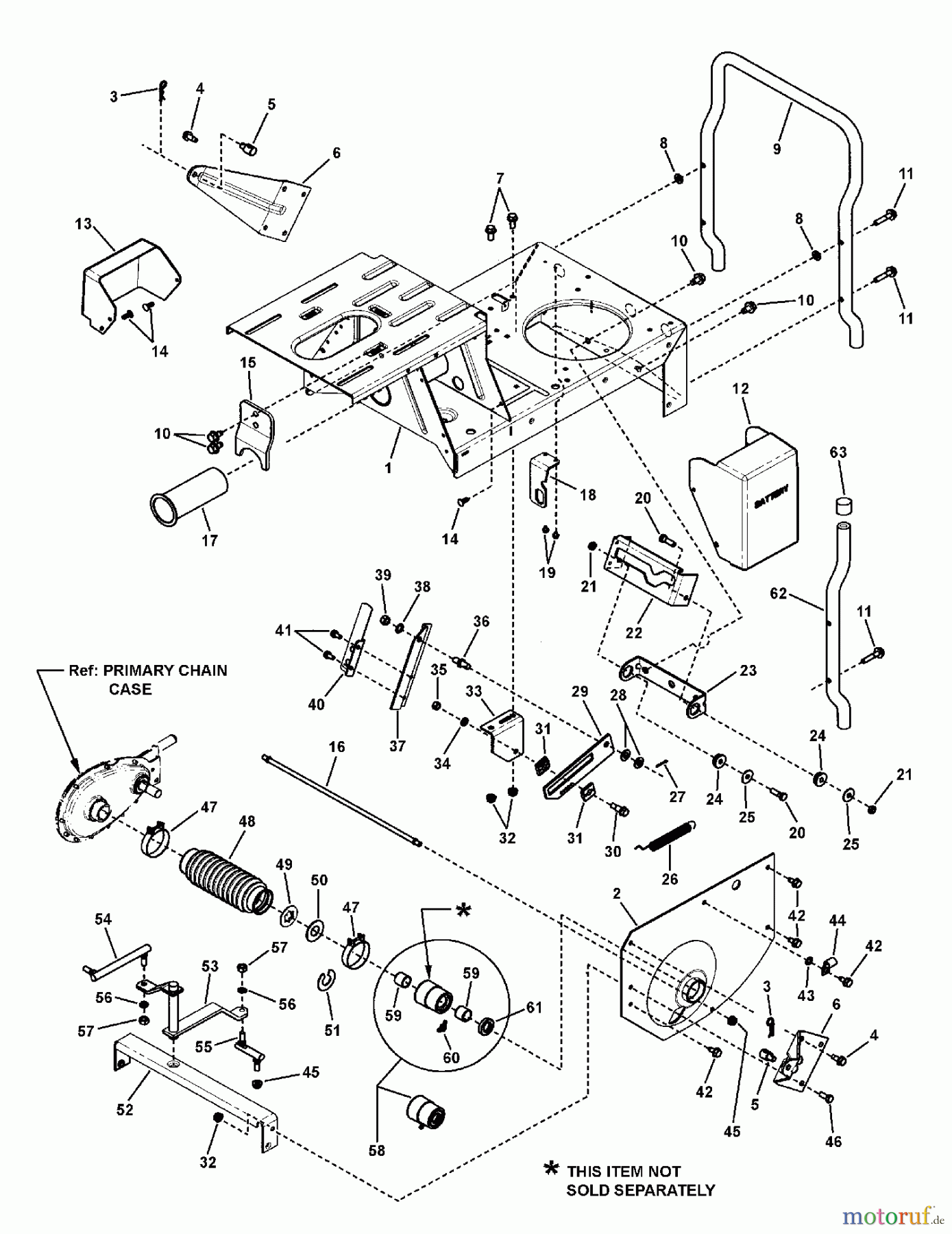

Snapper Reitermäher 3014524BVE (7800786) - Snapper 30

Posizione	Articolo numero	Descrizione
1	BS7053697YP	STANDARDHAUPTGEH.
2	BS7301302YP	FENDER, LH
3	BS703300	PIN, 3/32 X 1.6
4	BS7090793YP	SCHRAUBE, 5/16-18X3/4
5	BS7028200SM	SICHERUNGSSTIFT
6	BS7034299YP	KOTFLUGEL, HINTEN
7	BS9357MA	SCHRAUBE, 5/16-18X .75WD
8	BS703350	U-SCHEIBE, 5/16
9	BS7036367BMYP	BUMPER, REAR - ECOAT
10	BS7091198SM	HWST, 3/8CX5/8BP
11	BS7091506YP	HWST, 5/16C X1-1/2 YZ
12	BS7028990YP	COVER, BATTERY
13	BS7073268YP	ABDECKUNG, MAGNETSCH.
14	BS7091272YP	FASTENER, RATCHET
15	BS7074210YP	HALTER, TREIBRIEMENEINST.
16	BS7011070YP	TUGANKER
17	BS7074650YP	BUSHING, PIVOT
18	BS7073735YP	HALTER, SCHALTER
19	BS704061	SCREW,HEX, #10-32X.25
20	BS7090238SM	HHCS, 5/16F X1 GR5 BZ
21	BS703459	NUT, HEX, 5/16-24
22	BS7046162BMYP	YOKE, ECOAT
23	BS7033291YP	KLEMMSCHELLE, TRAVERSE
24	BS7011048YP	LAGER
25	BS7011763SM	WASHER, FENDER, 5/16
26	BS7013885YP	FEDER, KUPPL./BREMSE
27	BS703312	PIN, COTTER, 3/32X.75
28	BS703878	WASHER, FLAT
29	BS7047190YP	SLIDE, DRIVE SUPPORT
30	BS7014664SM	BOLT, SHLDR, 5/16C X1
31	BS7014663YP	GLEITSTUCK
32	BS7090585
33	BS7047189YP	BRKT, DRIVE SUPPORT
34	BS7090187SM	SLW, .318X.583X.078 Z
35	BS7091511SM	MUTTER, 5/16C GR5 YZ
36	BS7015464YP	BOLZEN
37	BS7073733YP	AUSLEGERGABEL
38	BS703930	WASHER, INT LCK, 3/8
39	BS703895	NUT, HEX, 3/8-24
40	BS7600141YP	KIT, LEAF SPRING
41	BS7091122
42	BS703949	SCHRAUBE, 5/16-18.625
43	BS703587	WASHER, 5/16
44	BS7012652YP	CLIP, KABEL
45	BS7010969YP	MUTTER, 5/16F ZP
46	BS7091318
47	BS7012332YP	KLEMME, 2
48	BS7075115YP	BOOT, AXLE
49	BS7011072YP	SICHERUNGSSCHEIBE
50	BS7011071YP	SICHERUNGSSCHEIBE
51	BS7012271
52	BS7033799YP	BRACE, CROSS
53	BS7041384YP	SHIFT ARM
54	BS7023676YP	SCHALTGEST. LANG
55	BS7011018YP	SCHALTHEBEL, KURZ
56	BS703116	LCKWSHR
57	BS703331	MUTTER, 5/16-24
58	BS7052827YP	3/4"ID BEARING ASMY
59	BS7074182YP	LAGER, DX
60	BS7075848YP	LUBE FITTING, 3/16
61	BS7074500YP	SEAL, DUST / GREASE
62	BS7030798BMYP	BUMPER
63	BS7010153YP	STO?F.KAPPE
