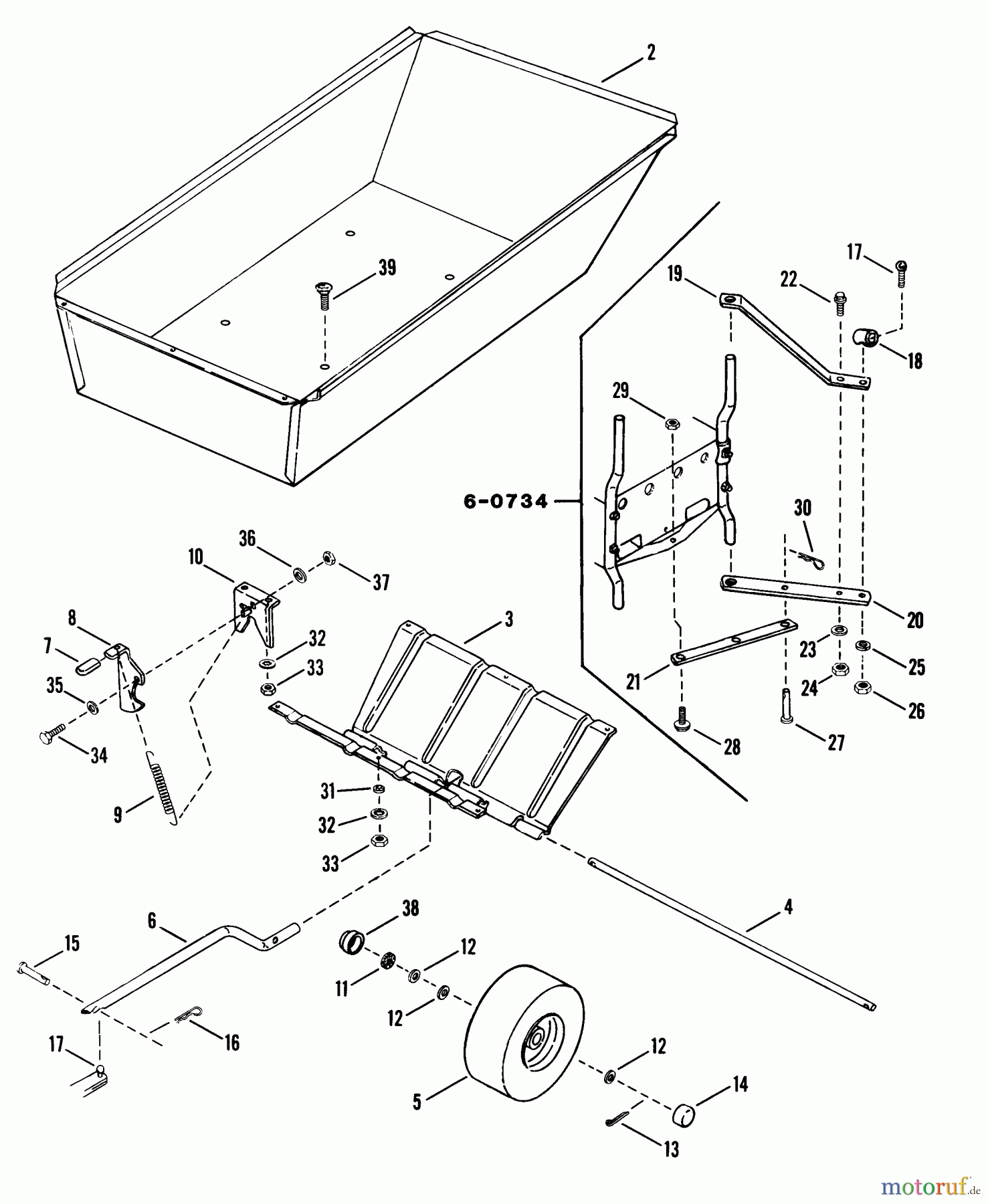

Snapper 33115SC - 33" Rear-Engine Rider, 11 HP, Commercial Series 5 Bag-N-Wagon Accessory (Part 2) Ricambi

MUTTER

Articolo numero:
BS703127
Posizione:
33
non più disponibile
Snapper Reitermäher 33115SC - Snapper 33
PosizioneArticolo numeroDescrizione
?1 BS7051935
2 BS7040446YPWELD, CART BODY
3 BS7039604
4 BS7031949YPAXLE, CLEAR
5 BS7052268YPWHEEL ASMY FRONT
6 BS7031946YPTONGUE, CART
7 BS7012391YPGRIP, BAG-N-WAGON LAT
8 BS7037736
9 BS7029025YPSPRING, EXT
10 BS7037737YPYOKE, 60299/300, CLEA
11 BS7011032YPDICHTUNGSFILZSTREIFEN
12 Snapper FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
13 BS7091516SMSPLINT, 5/32X1 YZ
14 BS7011022YPRADKAPPE
15 BS7011713YPCLEVIS PIN, 3/8X2-1/4
16 BS7011714YPFEDERSPLINT, 2-1/4
17 BS7012388YPANSCHLAG
18 BS7021762YPCOLLAR, HITCH, CLEAR
19 BS7051935
20 BS7037742YPBRACE, DRAWBAR
21 BS7037743YPDRAWBAR, LOWER
22 BS7090160YPHHCS, 3/8F X1
23 BS703454LOCKWASHER, SPLIT 3/8
24 BS703895NUT, HEX, 3/8-24
25 BS704007LCKWSHR,7/16,SPLIT RE
26 BS7090460SM
27 BS7012389YPCLEVIS PIN, 1/2X13/16
28 BS7090268
29 BS7090393YPHLN, STOVER, 1/2F YZ
30 BS703300PIN, 3/32 X 1.6
31 BS7012485YPRETAINER, 1/4"
32 BS703462U.-SCHEIBE, 1/4
33 BS703127MUTTER
34 BS703840BOLT,SHLDR 5/16-18X1
35 BS7011079YPWASHER, CURVED, .45X.
36 BS7090187SMSLW, .318X.583X.078 Z
37 BS7091511SMMUTTER, 5/16C GR5 YZ
38 BS7031038YPCAP, DUST, YELLOW
39 BS1931317SMBOLT - RD HD
60734 BS7051935
