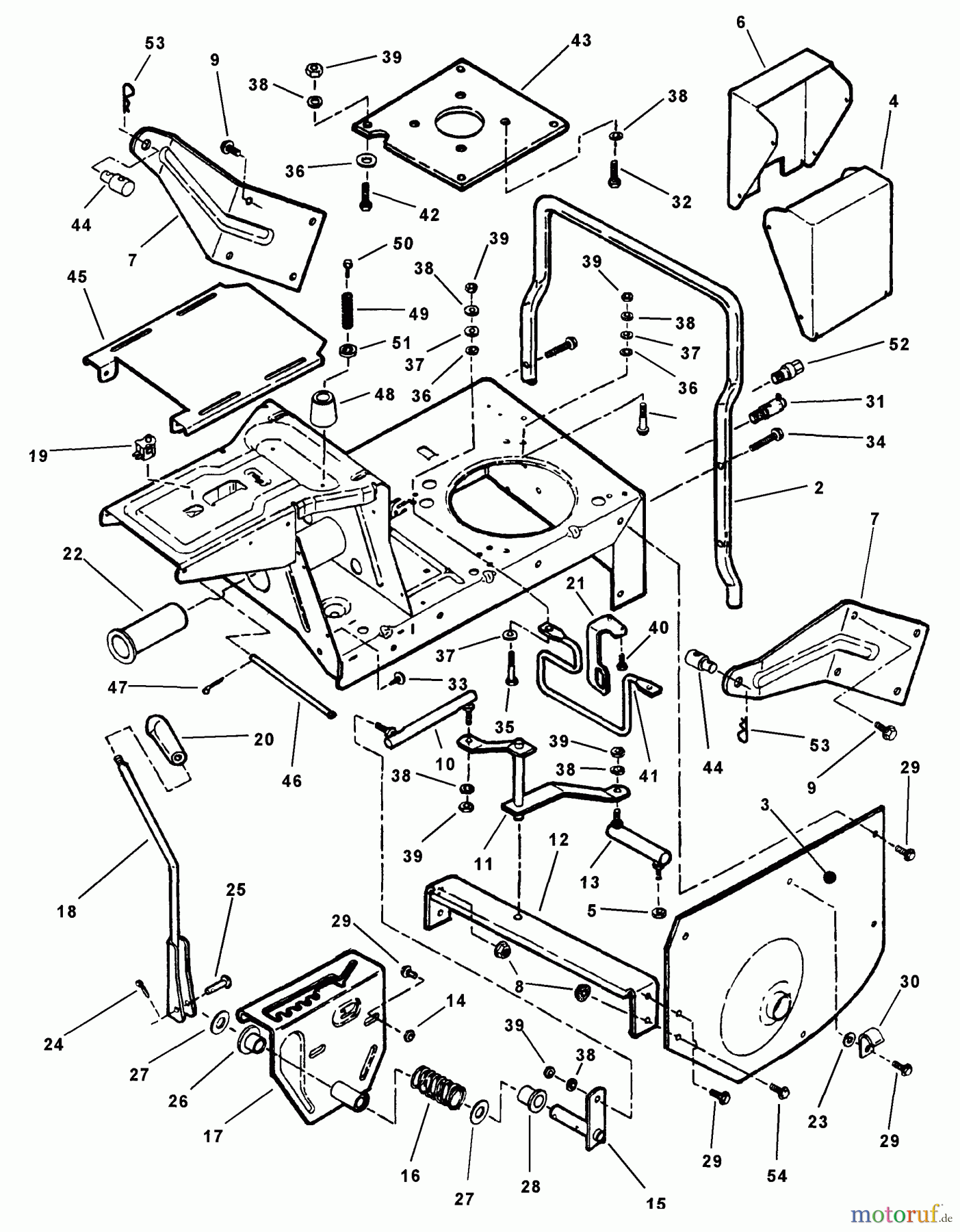

Snapper 3314518BVE (84262) - 33" Rear-Engine Rider, 14.5 HP, Series 18 Main Case (Hinged Seat Mount) Ricambi

Name: SWITCH, SEAT
Price: 13.13 EUR

SWITCH, SEAT

Articolo numero:

BS7023354YP

Posizione:

13.13 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

Posizione	Articolo numero	Descrizione
?1	BS7042700YP
?1	BS7042702YP	WELD, MAIN CASE, COM.
2	BS7036367BMYP	BUMPER, REAR - ECOAT
3	BS	Eingangswelle UE 600
4	BS7028990YP	COVER, BATTERY
5	BS7010969YP	MUTTER, 5/16F ZP
6	BS7073268YP	ABDECKUNG, MAGNETSCH.
7	BS7034299YP	KOTFLUGEL, HINTEN
8	BS703409	MUTTER, 5/16-18, GR5
9	BS7090793YP	SCHRAUBE, 5/16-18X3/4
10	BS7023676YP	SCHALTGEST. LANG
11	BS7041384YP	SHIFT ARM
12	BS7033799YP	BRACE, CROSS
13	BS7011018YP	SCHALTHEBEL, KURZ
14	BS7091511SM	MUTTER, 5/16C GR5 YZ
15	BS7043201BMYP	WELD, SHIFT ARM ECOAT
16	BS7010754YP	ARRETIERFEDER
17	BS7041232BMYP	WELD, SHIFT DETENT EC
18	BS7059212BMYP	WELD, SHIFT HANDLE
19	BS7023354YP	SWITCH, SEAT
20	BS7023656YP	LEVER, HANDLE, SHIFT
21	BS7034724YP	BRKT, SWITCH
22	BS7074650YP	BUSHING, PIVOT
23	BS703587	WASHER, 5/16
24	BS703312	PIN, COTTER, 3/32X.75
25	BS7023914YP	CLEVIS PIN, .25X1.63
26	BS7019245YP	BUSHING FLANGE
27	BS7031036YP	WASHER, THRUST
28	BS7019246YP	BUSHING, FLANGE
29	BS703949	SCHRAUBE, 5/16-18.625
30	BS7012652YP	CLIP, KABEL
31	BS7027972SM	OIL VALVE ASSY.
32	BS7077692YP	(C) HHCS, M8X1.25X25
33	BS7091272YP	FASTENER, RATCHET
34	BS7091506YP	HWST, 5/16C X1-1/2 YZ
35	BS7091513YP	SCHRAUBE, 5/16-24X1-3/4
36	BS703297	RETAINER, GR5, 5/16
37	BS703350	U-SCHEIBE, 5/16
38	BS703116	LCKWSHR
39	BS703331	MUTTER, 5/16-24
40	BS704061	SCREW,HEX, #10-32X.25
41	BS7036418BZYP	BELT GUIDE, 30/33
41	BS7036419YP	BELT GUIDE, K 30/33
41	BS7035971YP	BELT GUIDE, 28
42	BS7090238SM	HHCS, 5/16F X1 GR5 BZ
43	BS7074946YP	PLATE, ENGINE
44	BS7028200SM	SICHERUNGSSTIFT
45	BS7034664YP	PLATE, SEAT
46	BS7028656YP	PIN, HINGE
47	BS7090360YP	COTTER PIN, 1/16X3/4
48	BS7028540YP	CUSHION, SEAT SUPPORT
49	BS7043840YP	SPRING, COMP, 2.62 X
50	BS7090999SM	TORXSCHRAUBE 1/4C X5/8
51	BS7091294
52	BS7022486YP	DRAIN, OIL, SHORT
53	BS703300	PIN, 3/32 X 1.6
54	BS7091318
