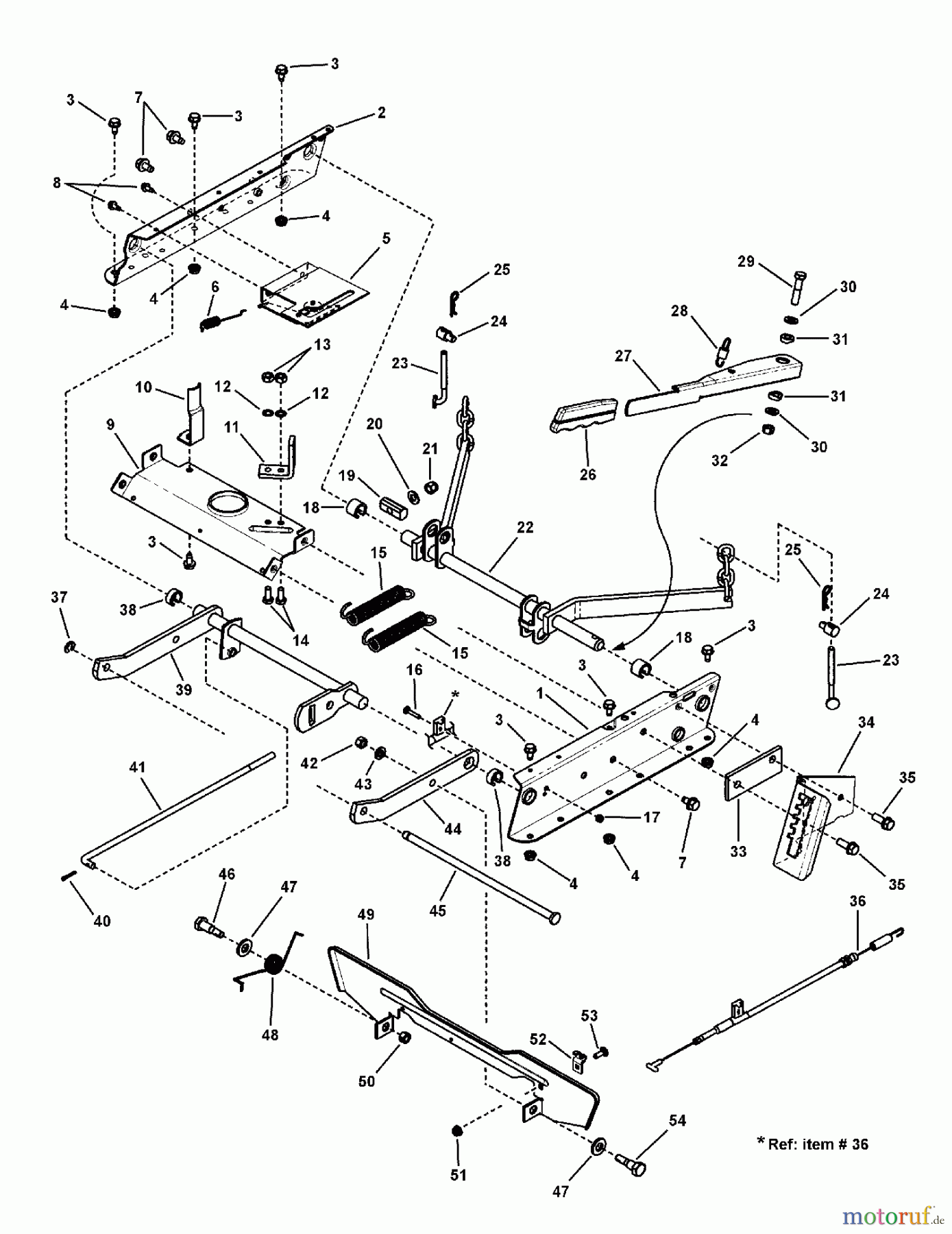

Snapper Reitermäher 3317524BVE (7800787) - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS7073269YP	HOLM, DECK LIFT, LINKS
2	BS7036430YP	FUHRUNGSSCHIENE RE.
3	BS703949	SCHRAUBE, 5/16-18.625
4	BS7090585
5	BS7600140YP	KIT, CLUTCH PLATE
6	BS7074649YP	FEDERARRETIERUNG
7	BS7091198SM	HWST, 3/8CX5/8BP
8	BS7091867YP	SCREW, 5/16-18 X 1/2
9	BS7031838BMYP	BRACE, TOP ECOAT
10	BS7031855YP	TREIBRIEMENSCHUTZ
11	BS7032243YP	SICHERUNGSBOLZEN
12	BS703587	WASHER, 5/16
13	BS703331	MUTTER, 5/16-24
14	BS7090233YP	HHCS, 5/16F X3/4 GR5
15	BS7046163YP	HILFSFEDER
16	BS7092051YP	BOLZEN, 10-24X1
17	BS703412	NUT, NYLOCK, 10-24
18	BS7012068YP	RING, HEBEARM HINTEN
19	BS7034213YP	ACHS, VERSTELLUNG
20	BS703878	WASHER, FLAT
21	BS7090854YP	SECHSKANTMUTTER 3/8-24 SELBSTS
22	BS7059324YP	LIFTARM HINTEN
23	BS703827	ROD, ADJUSTER
24	BS7028200SM	SICHERUNGSSTIFT
25	BS703300	PIN, 3/32 X 1.6
26	BS7105356YP	GRIP, DECK LIFT
27	BS7046155YP	SICHERUNGSBOLZEN
28	BS7046159YP	REGLERHEBEL
29	BS703866	KOPFSCHRAUBE, 3/8-24X1.75
30	BS7032030SM	FW, .406X1.25X.132 ZP
31	BS7071920YP	SPACER, DECK HANDLE
32	BS703458	MUTTER, 3/8-24
33	BS7046217YP	SPACER, DETENT
34	BS7046157YP	ARRETIERUNG, HOHENVERST.
35	BS7090324SM	HWST, 3/8C X1 BZ
36	BS7073216YP	CAB NRIM, REAR RIDER
37	BS7017847YP	FIXIERRING 438 AUSSEN
38	BS7012067YP	RING, HEBEARM VORN
39	BS7058041YP	HEBEARM VORN
40	BS7091598SM	COTTER PIN, 1/8X3/4 Y
41	BS7016122YP	STREBE
42	BS703895	NUT, HEX, 3/8-24
43	BS7032030
44	BS7032997YP	AUSLEGER, FRONTLIFT
45	BS7022717YP	ROD, DECK SUPPORT
46	BS7015446YP	BUNDSCHRAUBE
47	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
48	BS7015448YP	FEDER, PEDAL
49	BS7073267YP	FU?PEDAL, ABS
50	BS7090289
51	BS703233	MUTTER, 1/4-20, GR5
52	BS7073217YP	KABELCLIP
53	BS1931317SM	BOLT - RD HD
54	BS7015495YP	BOLZEN
