Snapper 3317524BVE (7800787) - 33" Rear-Engine Rider, 17.5 HP, Series 24 Engine Group Ricambi

Name: BELT GUIDE, 25, 26, 2
Price: 12.92 EUR

BELT GUIDE, 25, 26, 2

Articolo numero:

BS7017653BZYP

Posizione:

12.92 €

Tutti i prezzi includono l'IVA nell'UE, in più spedizione

Dettagli di contatto Sicurezza del prodotto

Articolo aggiunto al carrello1

Verrà ordinato per te: tempo di consegna circa 5 giorni lavorativi.

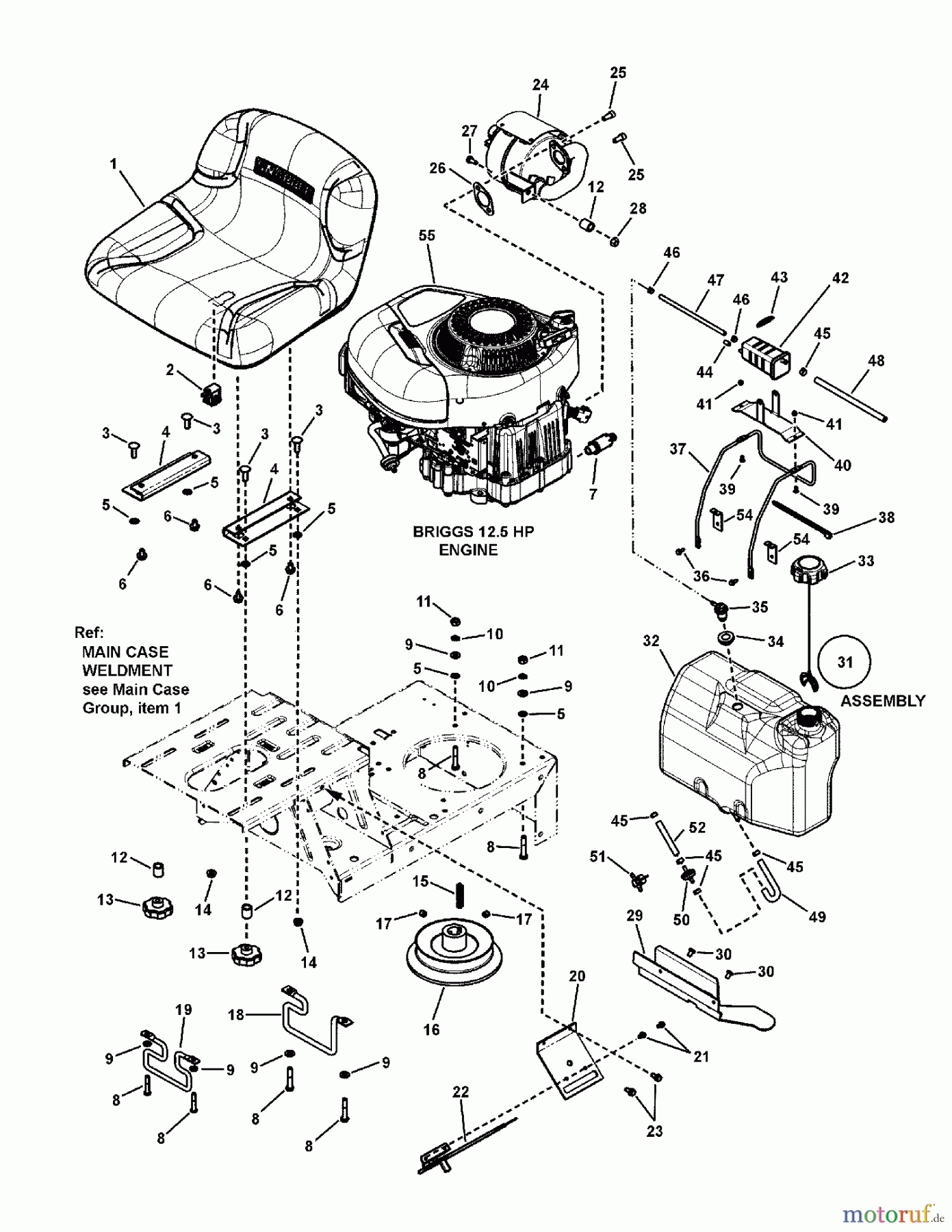

Snapper Reitermäher 3317524BVE (7800787) - Snapper 33

Posizione	Articolo numero	Descrizione
1	BS7600194YP	KIT, SEAT 12
1	BS7075376
2	BS7023354YP	SWITCH, SEAT
3	BS7091303YP	RHSSNB, 5/16CX1 GR5
4	BS7075018BMYP	SITZHALTER
5	BS703297	RETAINER, GR5, 5/16
6	BS7091038YP	BOLTZEN, 5/16-18X1/2
7	BS7027972SM	OIL VALVE ASSY.
8	BS7091513YP	SCHRAUBE, 5/16-24X1-3/4
9	BS703350	U-SCHEIBE, 5/16
10	BS703116	LCKWSHR
11	BS703331	MUTTER, 5/16-24
12	BS703970	DISTANZSTUCK
13	BS703065	WINGKNOB, 5/16-18
14	BS704001	NUT, 5/16-18
15	BS7010210SM	KEY, SQUARE, 1/4X2
16	BS7072658YP	DRIVE DISC, STEEL
16	BS7074187YP	DISC, STEEL DRIVE
17	BS7090132YP	HRSS, 3/8C X3/8 GR5
18	BS7017653BZYP	BELT GUIDE, 25, 26, 2
19	BS7036418BZYP	BELT GUIDE, 30/33
20	BS7033470YP	PLATTE, GESCHW. KONTROLLE
21	BS704060	SCREW,HEX, #10-24X.5
22	BS7022751YP	THROTTLE CONTROL
23	BS7091122
24	BS7074453YP	MUFFLER / HEAT SHIELD
25	BS7091738SM	SHCS, 5/16C X3/4 GR8
26	BS7015352SM	GASKET, EXHAUST
27	BS703054	SCHRAUBE, 1/4-20X0.625
28	BS703233	MUTTER, 1/4-20, GR5
29	BS7301145BMYP	BRKT, MOUNT TANK, RER
30	BS703932	SCREW, 5/16-18X.5
31	BS7105041YP	ASSY, FUEL TANK, RER
32	BS	Eingangswelle UE 600
33	BS7102956YP	CAP ASSY, RATCHET
34	BS209043
35	BS7104638YP	REMOTE VENT ASSEMBLY
36	BS7900067YP	SCHRAUBE, 1/4-20X11/16
37	BS7104513YP	HOLDER, FUEL TANK
38	BS7012080SM	CABLE TIE, 7.0
39	BS7091085YP	FHSNB, #10C X1/2 YZ
40	BS7301174BMYP	BRKT, CARBON CANISTER
41	BS703412	NUT, NYLOCK, 10-24
42	BS7104634YP	CANISTER, CARBON
43	BS7104930YP	SPRING, REACT DRIVE
44	BS7023606YP	CAP, VINYL
45	BS7029900SM	KLEMME 490 X .31
46	BS7105075YP	CLAMP, HOSE
47	BS7200138YP	HOSE, VAPOR
48	BS7200111YP	KRAFTSTOFFSCHL. 25X.50X9
49	BS283972YP	HOSE, FUEL
50	BS7014359
51	BS7034212YP	BENZINHAHN
52	BS7073240SM	(C) HOSE, FUEL 5
53	BS703127	MUTTER
54	BS7301224BZYP	BRACKET, TANK BRACE
55	BS217802-3113-G5
55	BS219977-0146-G5
55	BS31E577-0114-G5
55	BS31G777-0156-G5
